In circuit board manufacturing, the process of implementing the PCB surface finish is critical in enhancing the reliability and shelf life of the PCBA. We will cover the various types of surface finishes the printed circuit boards are given to enhance good inter-metallic bonding and the shelf-life of the assembly.

Current-day PCB assemblies consist mostly of SMT components where pad flatness is a significant consideration. Such PCBAs use electroless nickel and immersion gold surface finish. Based on the customer applications there are other surface finishes that are also available like soft gold, sterling silver, and OSP finishes. Sierra Circuits can process various types of surface finish according to customers’ needs such as hot air solder leveling (HASL), hot air solder leveling lead-free (HASL lead-free), electroless nickel immersion gold (ENIG), and electroless nickel electroless palladium immersion gold (ENEPIG). These different types of surface finishes enhance the shelf life of the board with each surface finish having a different shelf-life.

The most commonly used surface finishes are hot air solder leveling (HASL) with tin/lead alloy. Due to RoHS guideline policies, the boards which are RoHS compliant should not contain lead. Hence, in the same HASL process, we are using only tin and its associated alloys for lead-free requirements.

In this article we will discuss:

Ad: Get the help you need with your project.

What is surface finish in PCB?

A PCB surface finish is an intermetallic joint between the bare copper of the solderable area of the printed circuit board and the components. Circuit boards have a base copper surface that is susceptible to oxidation if left without a protective coating, hence the requirement of the surface finish. It is also responsible for preparing the PCB surface for soldering components onto the board during assembly and enhances the shelf-life of the board.

Significance of a PCB surface finish

It impacts various features such as:

  • The quality of the inter-metallic joint
  • The process yield
  • Rework for production batches along with the scrap rate
  • Testing ability
  • Cost of the manufacturing process and also
  • The rate at which the board will fail while being used for its intended application

Better DFM by Sierra Circuits

What are the types of PCB surface finish?

They can be broadly classified into metallic and organic.

Metallic surface finishes

These surface finishes use metallic layers as a protective coating for the PCB copper layer.

What is HASL PCB finish? (Hot air solder leveling)

HASL is a conventional surface finish applied to circuit boards. The circuit board is generally dipped into a molten solder bath to cover all exposed copper surfaces with solder. Surplus solder is separated by passing the board between hot-air knives. The solder is a tin-lead mixture in this case.

Since the introduction of the RoHS (Restriction of Hazardous Substances) requirement, lead-free HASL has been widely used.

Advantages

  • Provides superior wetting during component soldering
  • Prevents copper corrosion
  • Permits larger processing window
  • Widely used for boards without RoHS restriction

Disadvantages

  • Thickness varies between large and small pads
  • Unsuitable for < 20mil pitch BGA and SMD
  • Bridging on fine pitch
  • Not preferable for High-density interface (HDI) products

Lead-free HASL

This is a variation of HASL where lead-free alloys are used such as Sn/Ag/Cu (SAC), Sn/Cu/Co, Sn/Cu/Ni/Ge

Advantages

  • Potential delamination issues can be spotted by exposing the PCB to temperatures of 260°C
  • Widely available
  • Eco-friendly
  • More durable compared to other finishes
  • Comparatively more re-workable
  • It is more affordable

Disadvantages

  • May generate thermal shock
  • It may result in uneven surfaces
  • Not preferable for fine pitching
  • It may bridge solders

What is immersion gold plating?

ENIG or electroless nickel immersion gold includes electroless nickel plating covered with a thin coating of immersion gold, shielding the copper from oxidation.

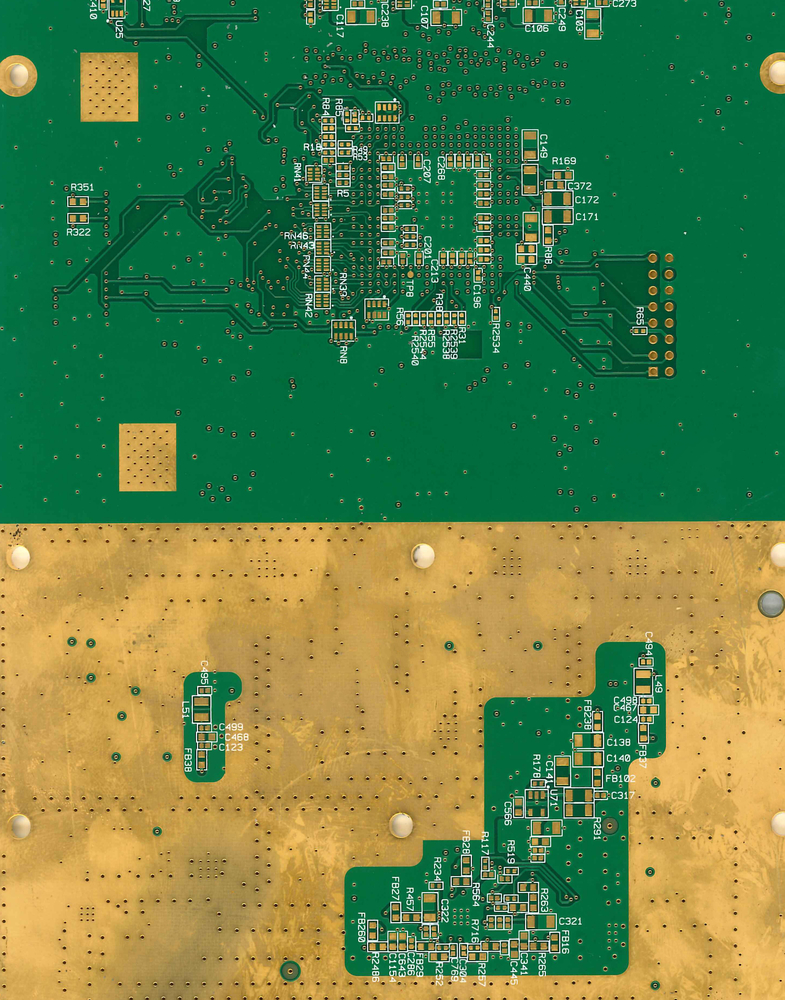

Surface finish ENIG PCB

ENIG PCB surface finish

Advantages of ENIG

  • This is ideal for flip chips and BGAs when compared to other surface finishes
  • Ideal for flat surfaces since the layers for nickel and gold are thin and even
  • No lead making it RoHS compliant
  • Preferable for PTH
  • Comes with a long shelf-life

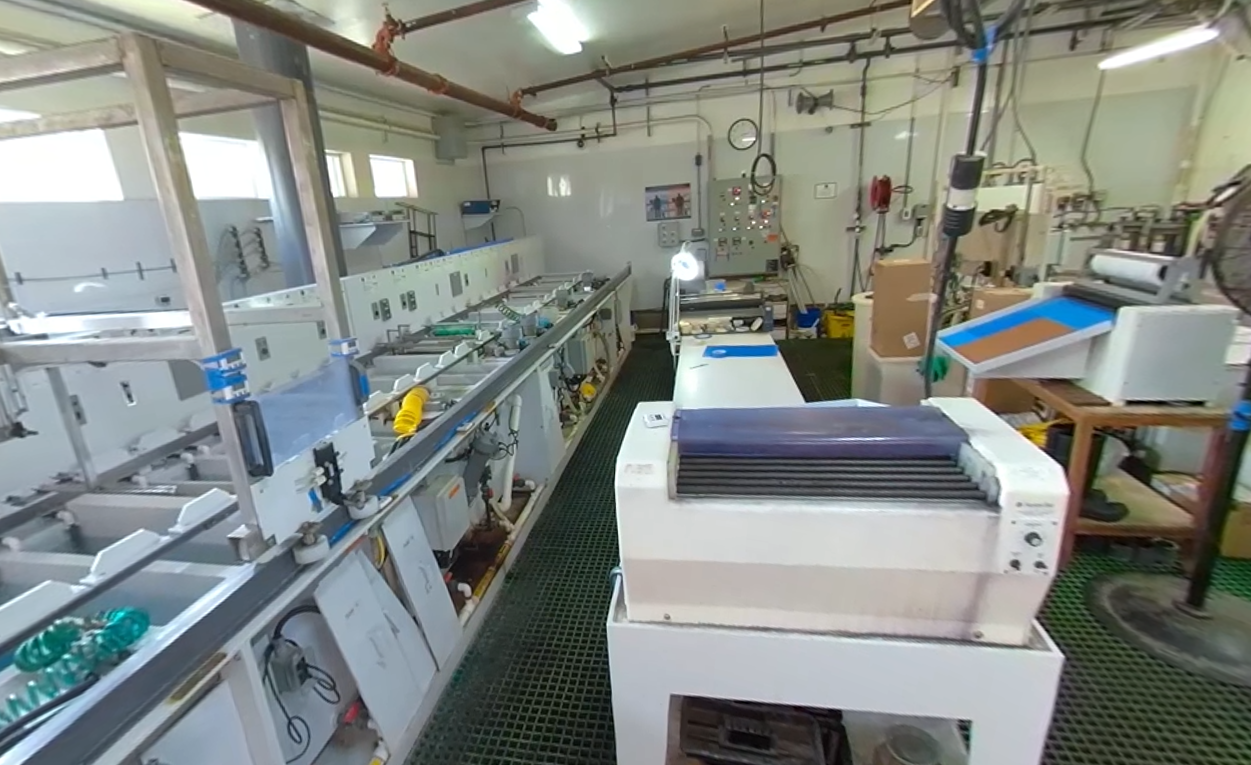

Surface finish station at Sierra Circuits manufacturing facility

Surface finish station at the Sierra Circuits manufacturing facility

Disadvantages of ENIG

  • Often leads to “black pad”. This is where there is a buildup of phosphorus between the nickel and gold layers. This might result in fractures and faulty board connections
  • Not ideal for reworking

The electroless nickel deposition is an auto-catalytic process where nickel is deposited on the palladium-catalyzed copper surface. To get a consistent coating, the reducing agent containing nickel ions must be refilled in order to offer proper concentration and temperature. While implementing the immersion gold step, the gold will adhere to the nickel-plated areas, protecting the nickel until the soldering process.

What is ENEPIG plating?

ENEPIG or electroless nickel electroless palladium immersion gold is a variation of ENIG. Here, a coating of palladium is done as a protective layer to stop the oxidation of nickel and to stop diffusion to the copper layer. Even though the cost of ENIG and ENEPIG is higher compared to other surface finishes, it provides excellent solderability for PCBs.

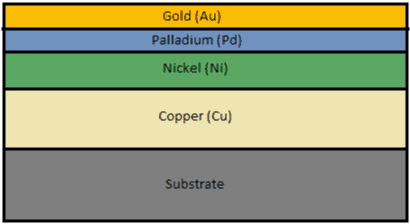

ENEPIG PCB surface finish

ENEPIG PCB surface finish

What are the advantages of ENEPIG finish?

  • It is applicable for a wide range of boards, earning the name ‘universal finish’, It can be used for varied surface packages and highly advanced boards.
  • Easy to process
  • Lead-free, hence RoHS complaint
  • Great for multiple reflow cycles
  • Highly compatible with Sn-Ag-Cu solders
  • Long shelf-life

Disadvantages of ENEPIG

  • Frequently results in the occurrence of black pad
  • Decreases the reliability of solder joints
  • The thickness of the palladium layer does not support solderability performance
  • Longer duration required to wet when compared with other surface finishes
  • The efficiency is affected by plating conditions
  • Higher cost compared to other surface finishes

What is hard gold?

Hard gold includes a layer of gold that is plated over a nickel coat. Hard gold is a gold alloy consisting of nickel, cobalt, or iron and is best suited for components with a higher probability of wear and tear such as edge connectors, interconnected carrier boards, contacts, and keypads. The thickness of this finish will vary according to the application where it is used. Hard gold is not generally applied to solderable areas, because of its high cost and its relatively poor solderability.

Advantages:

  • It is a hard and durable surface finish that is suitable for high degrees of wear
  • Lead-free finish, making it RoHS compliant
  • Long shelf life

Disadvantages:

  • More expensive
  • It involves more processing and is labor-intensive
  • The finish does not fully cover the sidewalls of the trace, except in the finger areas
  • The etching undercut defect can lead to slivering or flaking

What are PCB gold fingers?

The gold-plated columns that can be seen along the connecting edge of PCBs are also called PCB gold fingers. The function of gold fingers is to connect a secondary PCB to the computer motherboard. Gold fingers make it possible for different circuit boards to communicate with one another. Signal transmission from the power source to the device or equipment is made possible by PCB gold fingers. PCB gold fingers are used in various devices such as smartphones and smartwatches. The gold coating is used for the connecting edges due to its superior conductivity.

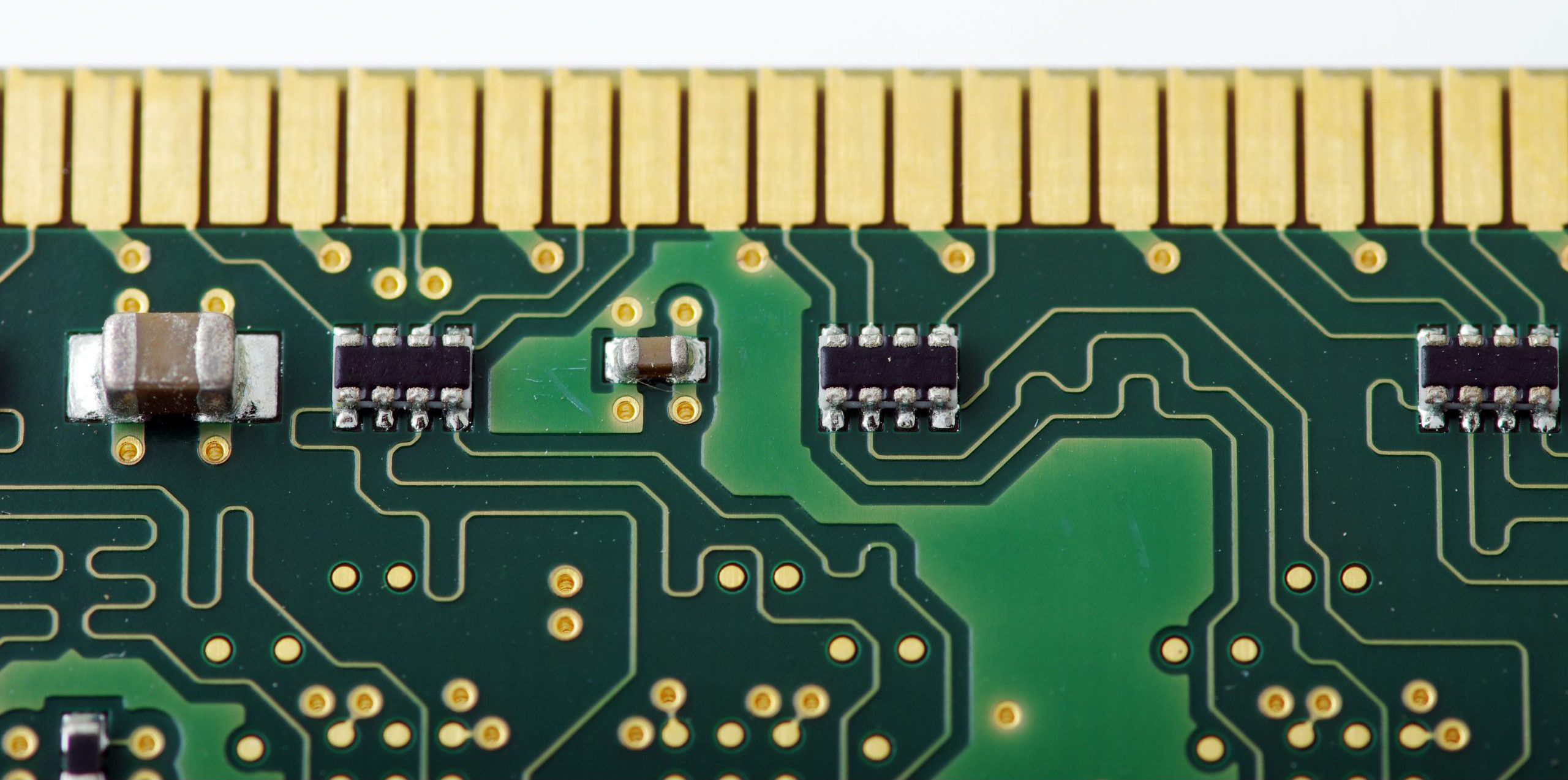

PCB gold fingers

PCB gold fingers

Hard gold finish processes are used to make PCB gold fingers.

The standards involved in the plating process helps to ensure a perfect fit between the gold fingers on each circuit board with the corresponding slots on a given motherboard. There is a battery of tests conducted to check for layer thickness and smoothness of the gold plating.

Immersion silver (ImAg)

Immersion silver consists of a lead-free layer of silver plated onto a PCB to protect copper traces from corrosion. Silver surface finishes can be applied to copper traces with an electroless immersion reaction, displacing the copper layer.

Advantages of immersion silver

  • Suitable for fine pitch
  • Long shelf-life of around 12 months
  • Stable compared to other surface finishes
  • Ideal for planarity requirements
  • It is affordable and cost-effective

Disadvantages of immersion silver

  • It may lead to silver whiskering which is the formation of hair-like metal projections on the board surface
  • Unsuitable for compliant-pin interaction as it is susceptible to fracture
  • Not ideal for micro vias with aspect ratios of 1:1

Turnkey Pro Blog Banner

Immersion tin (ImSn)

Immersion tin includes a thin layer of tin being deposited on the copper layer of a PCB. This is a lead-free and hence RoHS compliant surface finish which is a great choice for small geometries and components. It is suitable for flat surface requirements and fine pitch components.

Advantages

  • This allows excellent planarity or flatness which is suitable for fine pitch or BGA components
  • Suitable for press-fit
  • Lead-free finish for immersion tin is available at a mid-range cost
  • Immersion Tin has a mid-range cost for a lead-free finish
  • Retains good solderability after multiple thermal cycles

Disadvantages

  • Susceptible to handling.
  • Short shelf-life, tin whiskering defect can occur after 6 months
  • Unsuitable for use with peelable masks
  • Unsuitable for contact switches.
  • Special equipment setup required (such as soft probe landing) for electrical test

Organic surface finish

This type of surface finish uses organic compounds (compounds that include Carbon) to form a protective coating over the copper layer on the PCB.

 OSP (organic solderability preservative)

OSP is an organic surface finish that is water-based and used for copper pads. It selectively bonds to the copper and protects the copper pad prior to soldering.

Advantages

  • It is lead-free
  • Works well for flat surfaces
  • Involves a simple process
  • Easy to rework

Disadvantages

  • Unsuitable for PTH
  • Handling this finish is a challenge
  • Has a short shelf-life

Carbon ink surface finish

Here the copper pad on the PCB is coated with a protective layer of carbon ink. This surface finish method can be used in RF Shielding, keypads, keyboards, remote controllers, automotive vehicles, and welding equipment. The key factor in carbon ink PCB production is to control the printing, baking, and resistance control. The carbon ink can be printed onto almost any circuit board.

Advantages

  • Serves as a cost-effective alternative to the hard gold finish
  • More robust compared to other types of finish

Disadvantages

  • Extra care and different cleaning steps required

How to choose a PCB surface finish?

The final surface finish for a board is a critical factor that will decide the long-term reliability of the said PCB. You will need to consider the environment in which the circuit board is going to be used such as a harsh environment of extreme temperatures. Also required will be the applications for which they will be used and the hours of operation.

Surface finish comparison chart

The table given below is meant to help you with the types of surface finishes with regard to reflow, aluminum wire bond, and gold wire bond assembly applications. It also details the relative cost of each finish compared to other types.

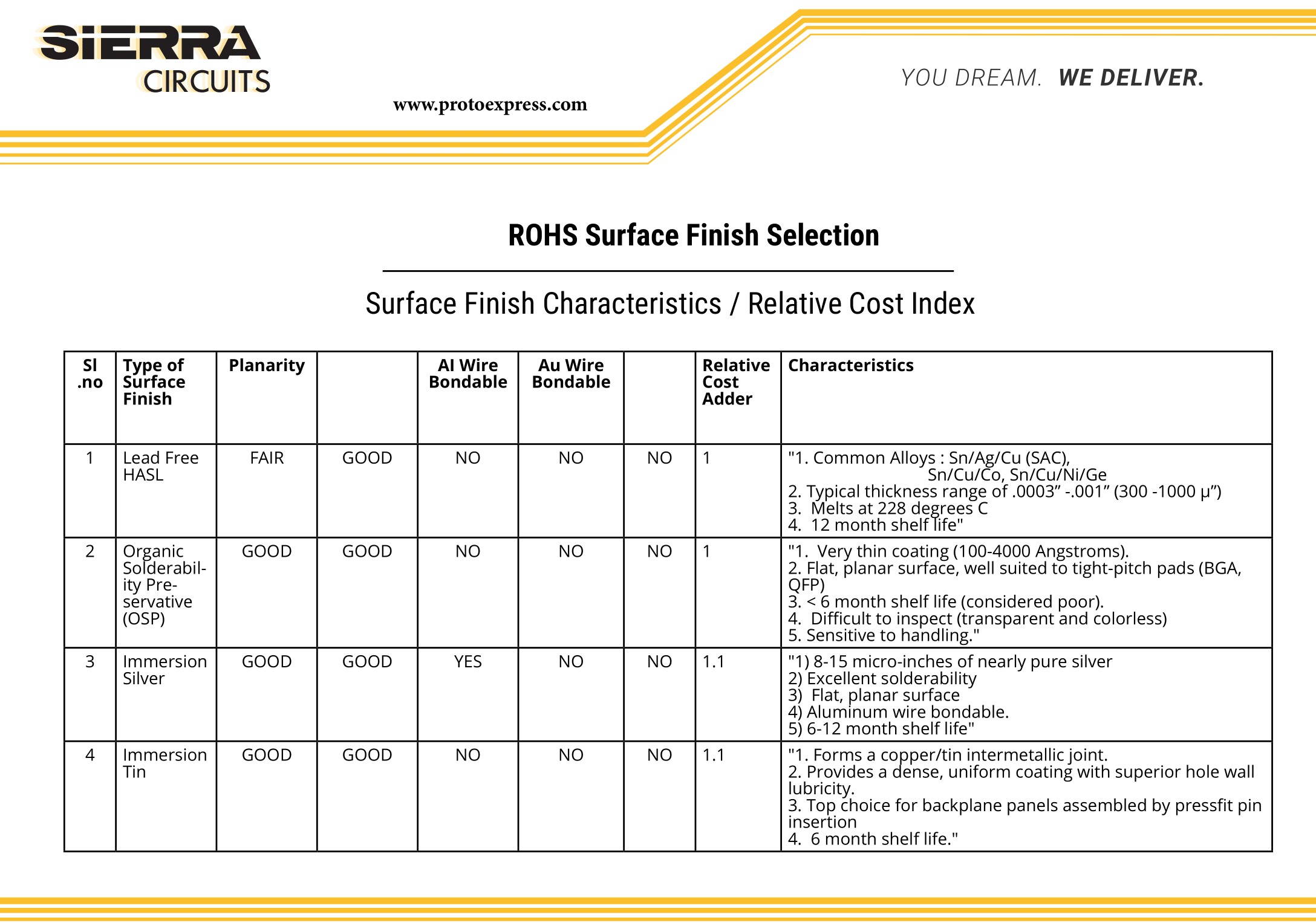

PCB Surface finish comparison chart

PCB surface finish comparison chart

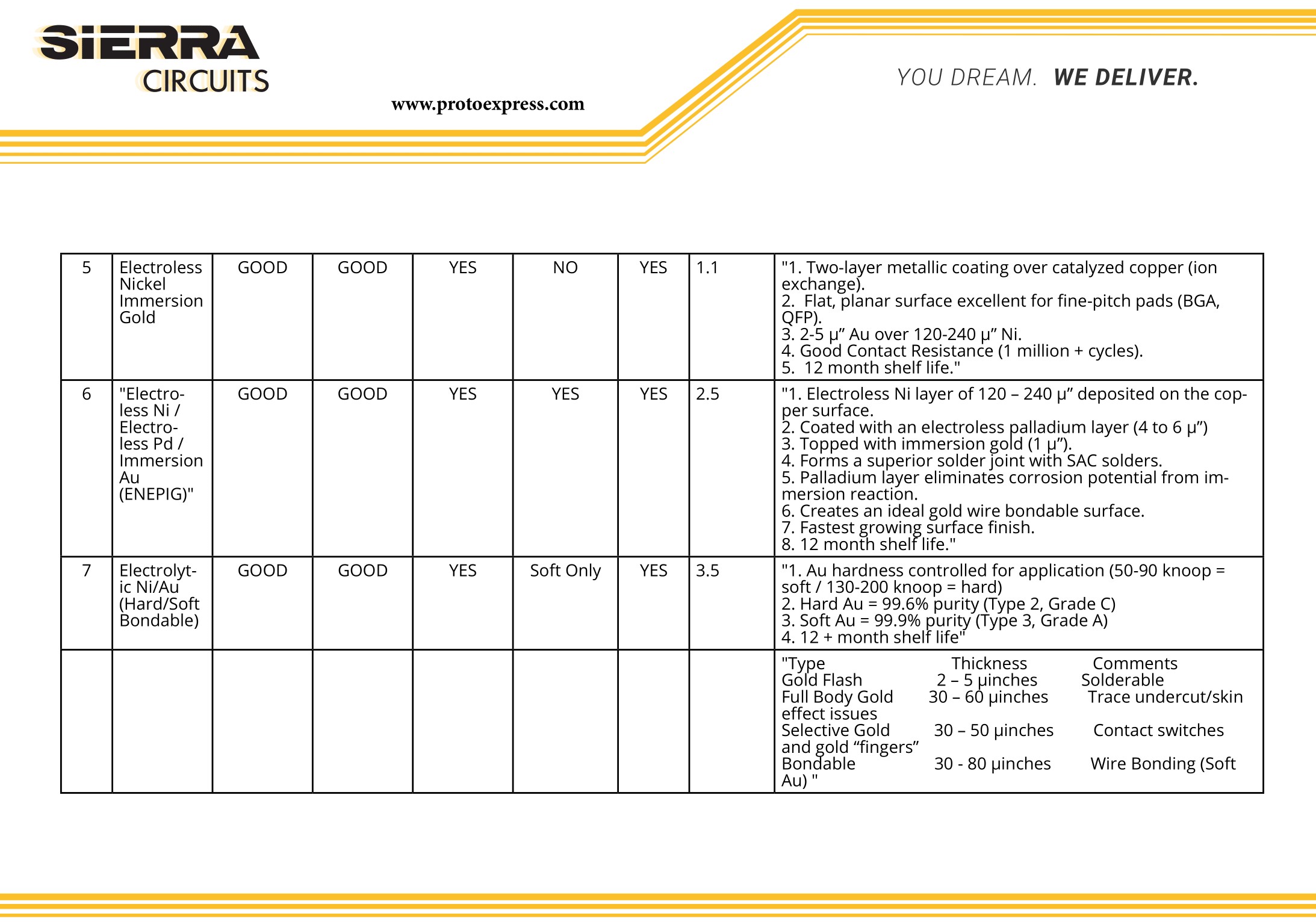

different types of PCB surface finishes

PCB surface finish comparison chart (continued)

Some important factors to consider while selecting the surface finish:

  • The environment in which the board will be used
  • Aesthetics of the board – if the board needs a silver finish
  • Shock and drop issue in the product. For example, when a smartphone is dropped, there is a risk of component fracture in the PCB. In such a scenario you would not use ENIG, which will have a tin-nickel bond, instead, you will need to use a tin-copper bond. However, you can use ENIG on medical devices.
  • Corrosion is also a factor. For example, a silver finish is prone to creep corrosion
  • Reliability requirement for the board is also an important parameter. If the product fails, what will be the cost of failure?
  • Presence of fine pitch devices/components
  • The flatness of the SMT pads for BGA applications

PCB manufacturing is a complex process to ensure the board manufactured meets the customer quality requirements. Guaranteeing the manufactured circuit board has the right surface finish according to the application will secure good PCB shelf-life and reliability.
