Video is a highly effective way to educate, entertain, and engage users. Your company might carry a large collection of videos that include captions or subtitles. To make these videos accessible to a larger audience, you can provide translated captions and subtitles in multiple languages. In this post, we show you how to create an automated and serverless pipeline to translate captions and subtitles using Amazon Translate, without losing their context during translation.

Captions and subtitles help make videos accessible for those hard of hearing, provide flexibility to users in noisy or quiet environments, and assist non-native speakers. Captions or subtitles are normally represented in SRT (.srt) or WebVTT (.vtt) format. SRT stands for SubRip Subtitle, and is the most common file format for subtitles and captions. WebVTT stands for Web Video Text Track, and is becoming a popular format for the same purpose.

Multi-language video subtitling and captioning solution

This solution uses Amazon Translate, a neural machine translation service that delivers fast, high-quality, and affordable language translation. Amazon Translate supports the ability to ignore tags and only translate text content in HTML documents. The following diagram illustrates the workflow of our solution.

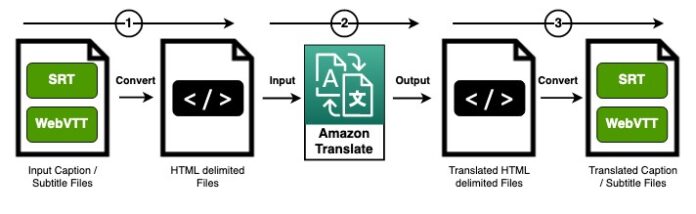

The following diagram illustrates the workflow of our solution.

The workflow includes the following steps:

  1. Extract caption text from a WebVTT or SRT file and create a delimited text file using an HTML tag.
  2. Translate this delimited file using the asynchronous batch processing capability in Amazon Translate.
  3. Recreate the WebVTT or SRT files using the translated delimited file.

We provide a more detailed architecture in the next section.

Solution architecture

This solution is based on an event-driven and serverless pipeline architecture, and uses managed services so that it’s scalable and cost-effective. The following diagram illustrates the serverless pipeline architecture.

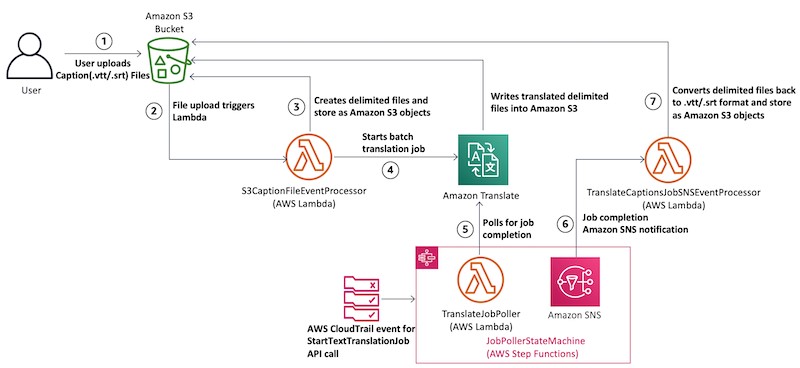

The following diagram illustrates the serverless pipeline architecture.

The pipeline contains the following steps:

  1. Users upload one or more caption files in the WebVTT (.vtt) or the SRT (.srt) format to an Amazon Simple Storage Service (Amazon S3) bucket.
  2. The upload triggers an AWS Lambda function.
  3. The function extracts text captions from each file, creates a corresponding HTML tag delimited text file, and stores them in Amazon S3.
  4. The function invokes Amazon Translate in batch mode to translate the delimited text files into the target language.
  5. The AWS Step Functions based job poller polls for the translation job to complete.
  6. The Step Functions workflow sends an Amazon Simple Notification Service (Amazon SNS) notification when the translation is complete.
  7. A Lambda function reads the translated delimited files from Amazon S3, creates the caption files in the WebVTT (.vtt) or SRT(.srt) format with the translated text captions, and stores them back in Amazon S3.

We explain Steps 3–7 in more detail in the following sections.

Convert caption files to delimited files

In this architecture, uploading the file with triggerFileName triggers the Lambda function <Stack name>-S3CaptionsFileEventProcessor-<Random string>. The function iterates through the WebVTT and SRT files in the input folder and for each file, it extracts the caption text, converts it into a delimited text file using an HTML (<span>) tag, and places it in the captions-in folder of the Amazon S3 bucket. See the following function code:

try: captions = Captions() #filter only the VTT and SRT file for processing in the input folder objs = S3Helper().getFilteredFileNames(bucketName,"input/",["vtt","srt"]) for obj in objs: try: vttObject = {} vttObject["Bucket"] = bucketName vttObject["Key"] = obj captions_list =[] #based on the file type call the method that coverts them into python list object if(obj.endswith("vtt")): captions_list = captions.vttToCaptions(vttObject) elif(obj.endswith("srt")): captions_list = captions.srtToCaptions(vttObject) #convert the text captions in the list object to a delimited file delimitedFile = captions.ConvertToDemilitedFiles(captions_list) fileName = obj.split("/")[-1] newObjectKey = "captions-in/{}.delimited".format(fileName) S3Helper().writeToS3(str(delimitedFile),bucketName,newObjectKey) output = "Output Object: {}/{}".format(bucketName, newObjectKey)

The solution uses a Python library webvtt-py to load, parse, and generate the WebVTT and SRT file formats. All the operations related to the library are abstracted within the Captions module. Also, all Amazon S3 operations are abstracted within the S3Helper module.

Batch translation of delimited files

After the delimited files are stored in the captions-in folder of the Amazon S3 bucket, the Lambda function <Stack name>-S3CaptionsFileEventProcessor-<Random string> invokes the Amazon Translate job startTextTranslationJob with the following parameters:

  • The captions-in folder in the S3 bucket is the input location for files to be translated
  • The captions-out folder in the S3 bucket is the output location for translated files
  • Source language code
  • Destination language code
  • An AWS Identity and Access Management (IAM) role ARN with necessary policy permissions to read and write to the S3 bucket

See the following job code:

translateContext = {}
translateContext["sourceLang"] = sourceLanguageCode
translateContext["targetLangList"] = [targetLanguageCode]
translateContext["roleArn"] = access_role translateContext["bucket"] = bucketName
translateContext["inputLocation"] = "captions-in/"
translateContext["outputlocation"] = "captions-out/"
translateContext["jobPrefix"] = "TranslateJob-captions"
#Call Amazon Translate to translate the delimited files in the captions-in folder
jobinfo = captions.TranslateCaptions(translateContext)

Poll the Amazon Translate batch translate job

The solution uses a Step Functions workflow to periodically poll the Amazon Translate service for the status of the submitted job using a Lambda function. When the job is complete, the workflow creates an Amazon SNS notification with details of the Amazon Translate job as the notification payload. For more details on the Step Functions job definition and the Lambda code, see Getting a batch job completion message from Amazon Translate.

Create WebVTT and SRT files from the delimited files

The Amazon SNS notification from the job poller step triggers the Lambda function <Stack name>-TranslateCaptionsJobSNSEventProcessor-<Random string>. The function iterates through the each of the translated delimited files generated in the captions-out folder based on the event details available from the Amazon SNS notification event. See the following code:

output = "" logger.info("request: {}".format(request)) up = urlparse(request["s3uri"], allow_fragments=False) accountid = request["accountId"] jobid = request["jobId"] bucketName = up.netloc objectkey = up.path.lstrip('/') basePrefixPath = objectkey + accountid + "-TranslateText-" + jobid + "/"; languageCode = request["langCode"] logger.debug("Base Prefix Path:{}".format(basePrefixPath)) captions = Captions() #filter only the delimited files with .delimited suffix objs = S3Helper().getFilteredFileNames(bucketName,basePrefixPath,["delimited"]) for obj in objs: try: #Read the Delimited file contents content = S3Helper().readFromS3(bucketName,obj) fileName = FileHelper().getFileName(obj)

The solution generates the WebVTT or SRT file using the original WebVTT or SRT file from the input folder for the time markers, but replaces the captions with the translated caption text from the delimited files. See the following code:

logger.debug("SourceFileKey:{}.processed".format(sourceFileName)) soureFileKey = "input/{}.processed".format(sourceFileName) vttObject = {} vttObject["Bucket"] = bucketName vttObject["Key"] = soureFileKey captions_list = [] #Based on the file format, call the right method to load the file as python object if(fileName.endswith("vtt")): captions_list = captions.vttToCaptions(vttObject) elif(fileName.endswith("srt")): captions_list = captions.srtToCaptions(vttObject) # Replace the text captions with the translated content translatedCaptionsList = captions.DelimitedToWebCaptions(captions_list,content,"<span>",15) translatedText = "" # Recreate the Caption files in VTT or SRT format if(fileName.endswith("vtt")): translatedText = captions.captionsToVTT(translatedCaptionsList) elif(fileName.endswith("srt")): translatedText = captions.captionsToSRT(translatedCaptionsList)

The function then writes the new WebVTT or SRT files as S3 objects in the output folder with the following naming convention: TargetLanguageCode-<inputFileName>.vtt or TargetLanguageCode-<inputFileName>.srt. See the following code:

newObjectKey = "output/{}".format(fileName)
# Write the VTT or SRT file into the output S3 folder
S3Helper().writeToS3(str(translatedText),bucketName,newObjectKey)

Solution deployment

You can either deploy the solution using an AWS CloudFormation template or by cloning the GitHub repository.

Deployment using the CloudFormation template

The CloudFormation template provisions the necessary resources needed for the solution, including the IAM roles, IAM policies, and Amazon SNS topics. The template creates the stack the us-east-1 Region.

  1. Launch the CloudFormation template by choosing Launch Stack:

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

  1. For Stack name, enter a unique stack name for this account; for example, translate-captions-stack.
  2. For SourceLanguageCode, enter the language code for the current language of the caption text; for example, en for English.
  3. For TargetLanguageCode, enter the language code that you want your translated text in; for example, es for Spanish.

For more information about supported languages, see Supported Languages and Language Codes.

  1. For TriggerFileName, enter the name of the file that triggers the translation serverless pipeline (the default is triggerfile).
  2. In the Capabilities and transforms section, and select the check boxes to acknowledge that CloudFormation will create IAM resources and transform the AWS Serverless Application Model (AWS SAM) template.

AWS SAM templates simplify the definition of resources needed for serverless applications. When deploying AWS SAM templates in AWS CloudFormation, AWS CloudFormation performs a transform to convert the AWS SAM template into a CloudFormation template. For more information, see Transform.

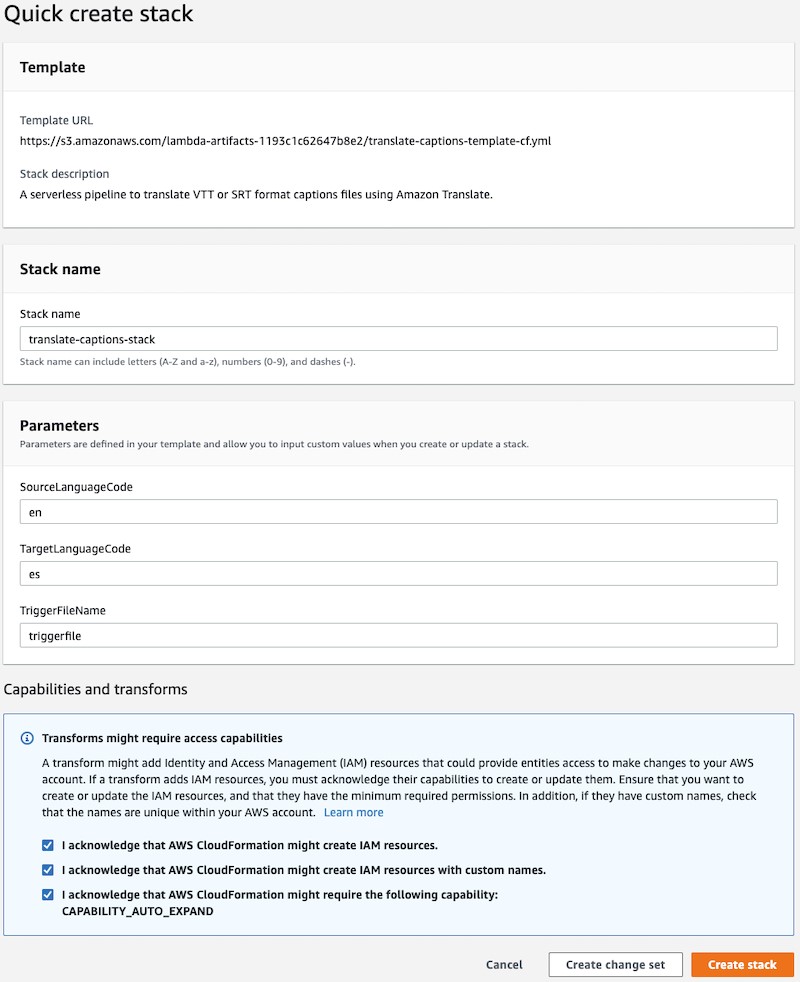

  1. Choose Create stack.

Choose Create stack.

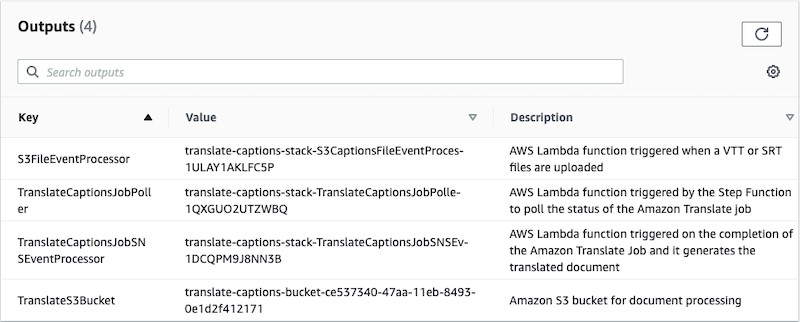

The stack creation may take up to 10 minutes, after which the status changes to CREATE_COMPLETE. You can see the name of the newly created S3 bucket along with other AWS resources created on the Outputs tab.

You can see the name of the newly created S3 bucket along with other AWS resources created on the Outputs tab.

Deployment using the GitHub repository

To deploy the solution using GitHub, visit the GitHub repo and follow the instructions in the README.md file. The solution uses AWS SAM to make it easy to deploy in your AWS account.

Test the solution

To test the solution, upload one or more WebVTT (.vtt) or SRT (.srt) files to the input folder. Because this is a batch operation, we recommend uploading multiple files at the same time. The following code shows a sample SRT file:

1
00:00:00,500 --> 00:00:07,000
Hello. My name is John Doe. Welcome to the blog demonstrating the ability to 2
00:00:07,000 --> 00:00:11,890
translate from one language to another using Amazon Translate. Amazon Translate is a neural machine translation service that delivers fast, high-quality, and affordable language translation. 3
00:00:11,890 --> 00:00:16,320
Neural machine translation is a form of language translation automation that uses deep learning models to deliver more accurate and natural-sounding translation than traditional statistical and rule-based translation algorithms. 4
00:00:16,320 --> 00:00:21,580
The translation service is trained on a wide variety of content across different use cases and domains to perform well on many kinds of content. 5
00:00:21,580 --> 00:00:23,880
Its asynchronous batch processing capability enables you to translate a large collection of text or HTML documents with a single API call.

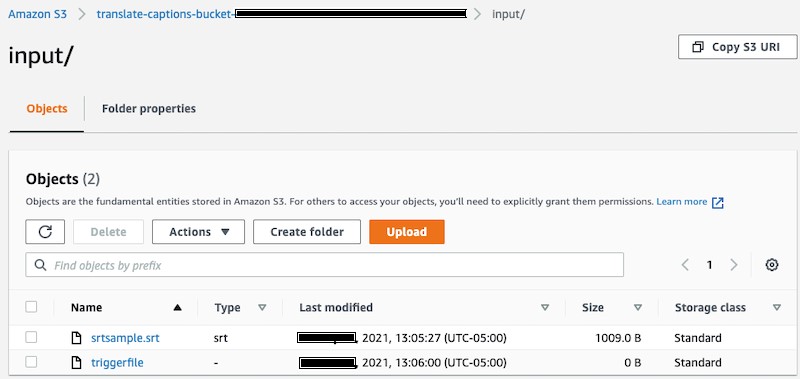

After you upload all the WebVTT or SRT documents, upload the file that triggers the translation workflow. This file can be a zero-byte file, but the filename should match the TriggerFileName parameter in the CloudFormation stack. The default name for the file is triggerfile.

After you upload all the WebVTT or SRT documents, upload the file that triggers the translation workflow.

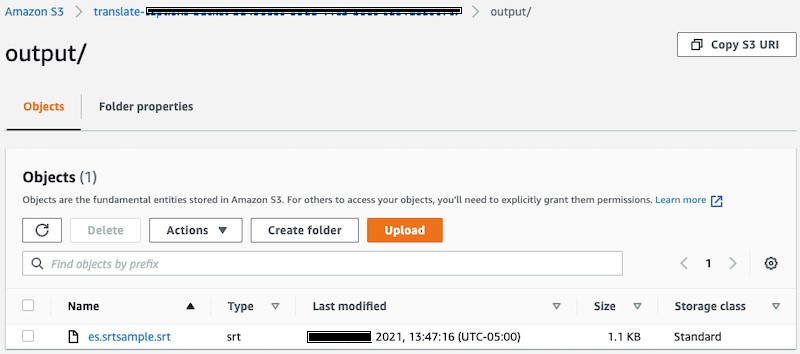

After a short time (15–20 minutes), check the output folder to see the WebVTT or SRT files with the following naming convention: TargetLanguageCode-<inputFileName>.vtt or TargetLanguageCode-<inputFileName>.srt.

After a short time (15–20 minutes), check the output folder to see the WebVTT or SRT files

The following snippet shows the SRT file translated into Spanish:

1
00:00:00,500 --> 00:00:07,000
Hola. Mi nombre es John Doe. Bienvenido al blog que demuestra la capacidad de 2
00:00:07,000 --> 00:00:11,890
traducir de un idioma a otro utilizando Amazon Translate. Amazon Translate es un servicio de traducción automática neuronal que ofrece traducción de idiomas rápida, de alta calidad y asequible. 3
00:00:11,890 --> 00:00:16,320
La traducción automática neuronal es una forma de automatización de la traducción de idiomas que utiliza modelos de aprendizaje profundo para ofrecer una traducción más precisa y natural que los algoritmos de traducción basados en reglas y estadísticas tradicionales. 4
00:00:16,320 --> 00:00:21,579
El servicio de traducción está capacitado en una amplia variedad de contenido en diferentes casos de uso y dominios para funcionar bien en muchos tipos de contenido. 5
00:00:21,579 --> 00:00:23,879
Su capacidad de procesamiento por lotes asincrónico le permite traducir una gran colección de documentos de texto o HTML con una sola llamada a la API.

You can monitor the progress of the solution pipeline by checking the Amazon CloudWatch logs generated for each Lambda function that is part of the solution. For more information, see Accessing Amazon CloudWatch logs for AWS Lambda.

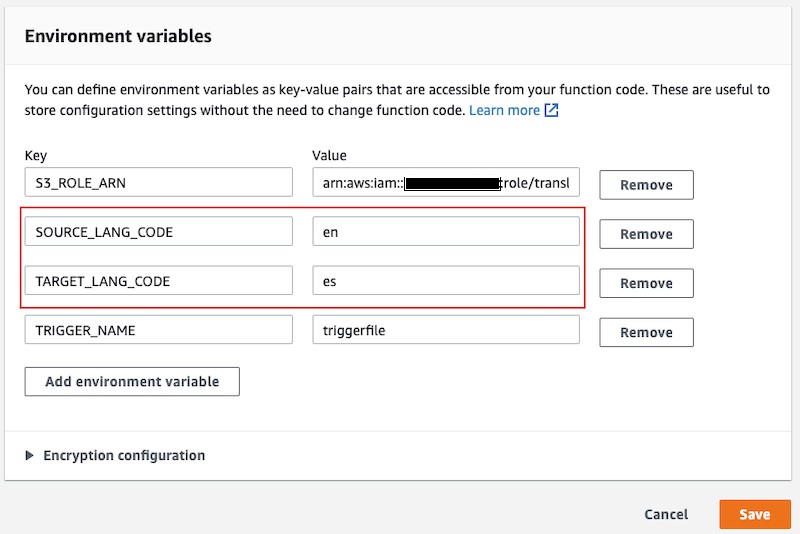

To do a translation for a different source-target language combination, you can update the SOURCE_LANG_CODE and TARGET_LANG_CODE environment variable for the <Stack name>-S3CaptionsFileEventProcessor-<Random string> function and trigger the solution pipeline by uploading WebVTT or SRT documents and the TriggerFileName into the input folder.

To do a translation for a different source-target language combination, you can update the SOURCE_LANG_CODE and TARGET_LANG_CODE environment variable

Conclusion

In this post, we demonstrated how to translate video captions and subtitles in WebVTT and SRT file formats using Amazon Translate asynchronous batch processing. This process can be used in several industry verticals, including education, media and entertainment, travel and hospitality, healthcare, finance, law, or any organization with a large collection of subtitled or captioned video assets that wants these translated to their customers in multiple languages.

You can easily integrate the approach into your own pipelines as well as handle large volumes of caption and subtitle text with this scalable architecture. This methodology works for translating captions and subtitles between over 70 languages supported by Amazon Translate (as of this writing). Because this solution uses asynchronous batch processing, you can customize your machine translation output using parallel data. For more information on using parallel data, see Customizing Your Translations with Parallel Data (Active Custom Translation). For a low-latency, low-throughput solution translating smaller caption files, you can perform the translation through the real-time Amazon Translate API. For more information, see Translating documents with Amazon Translate, AWS Lambda, and the new Batch Translate API. If your organization has a large collection of videos that need to be captioned or subtitled, you can use this AWS Subtitling solution.
