Impedance is the measurement of the restriction imposed by a circuit on the current flow. It is similar to resistance, but it also considers the effects of inductance and capacitance. Impedance control in flex stack-ups is essential to reduce signal reflections and achieve dependable signal integrity.

Controlled impedance (CI) is the characteristic impedance of a transmission line in a PCB conductor and its related reference planes. It is especially required when high-frequency signals propagate through a circuit board trace.

## Why do you need controlled impedance for flex PCBs?

In modern days, flex circuit boards have become smaller, faster, and more complicated. Flex boards are typically used in high-frequency applications such as RF communication, telecommunication, computing using signal frequencies above 100MHz,Â  high-speed signal processing, and high-quality analog video such as DDR, HDMI, Gigabit Ethernet, etc.

Signal traces have impedance at each point on the signal path. If this impedance varies from point to point, there will be a signal reflection whose magnitude will depend on the difference between the two impedances. This reflection will travel in the opposite direction of the signal, which means that the reflected signal will superimpose the original signal. For a better understanding of controlled impedance read, why controlled impedance really matters?

### What is impedance matching in PCBs?

Impedance matching becomes essential when it comes to flex PCB design as they are generally used in high-speed applications. It refers to matching the load impedance to the characteristic impedance of the transmission line. If the load impedance and the characteristic impedance are equal, the reflections in the transmission line will be eliminated. This ensures that the original signal is received without attenuation.

## Factors affecting impedance in flex circuit board

Impedance control in flex can be achieved by altering the physical dimensions of the PCB traces and the properties of the dielectric material used. Below are the factors that affect impedance in flex PCBs.

### Physical dimensions of the traces

1. Height of the trace
2. Width of the top surface of the trace
3. Width of the bottom surface of the trace
4. Difference between the width at the top of the trace and the bottom of the trace
5. Height of the trace from the ground plane

### Dielectric properties of the dielectric material used

1. The dielectric constant of the dielectric material incorporated
2. Dielectric height between the trace and the reference plane
3. The dielectric constant of soldermask or coverlay

## Controlled impedance configurations for flex boards

The most common configurations used for impedance control in flex boards are:

### Single-ended microstrip

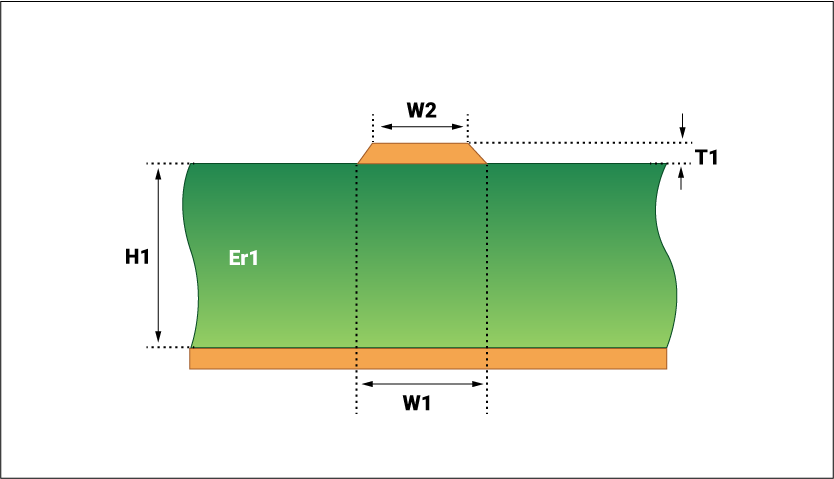

Single-ended microstrip for flex PCB

H1: Height of the dielectric between the trace and the reference plane

W1: Width of the bottom surface of the trace

W2: Width of the top surface of the trace

T1: Thickness of the trace

Er1: Dielectric constant of dielectric between the trace and the reference plane

This configuration has a transmission line made of a uniform conductor (thickness and width) on the outer layer of the board stack-up. The reference plane provides the current return path for the signals traveling on the transmission line. Single-ended microstrip allows for thinner flex construction that also increases the flexibility and reduces the overall cost.

### Edge-coupled coated differential microstrip

Edge coupled differential microstrip for flex PCB

H1: Height of the dielectric between the trace and the reference plane

W1: Width of the bottom surface of the trace

W2: Width of the top surface of the trace

T1: Thickness of the trace

S1: The separation between the two traces of the differential pair

C1, C2, and C3: Thickness of the coverlay at various locations

CEr: Dielectric constant of coverlay

When a signal and its complement are transmitted on two separate traces, it is called differential signaling. These traces are called differential pairs. The traces are routed with a constant space between them. One of the primary advantages of having edge coupled differential pairs is that the noise on the reference plane is common to both traces. This cancels out the noise at the receiver end.

### Single-ended stripline

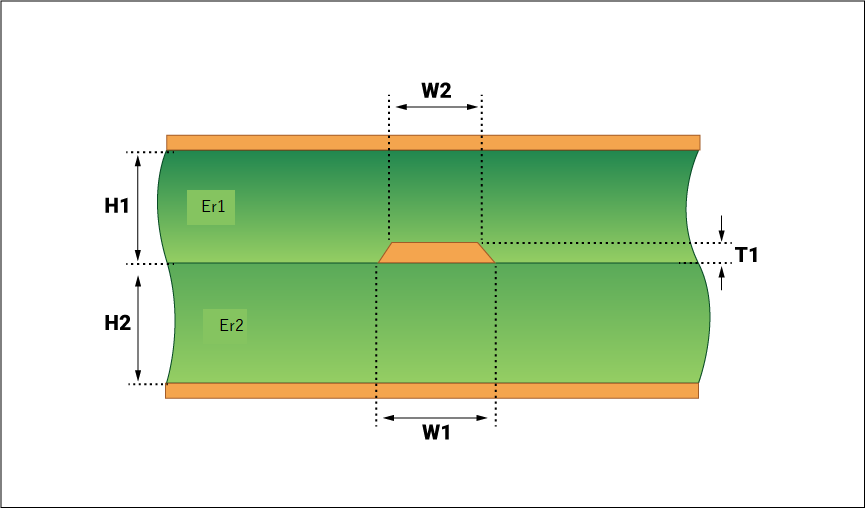

Single-ended stripline for flex PCBs

H1: Height of the first dielectric

H2: Height of the second dielectric

W1: Width of the bottom surface of the trace

W2: Width of the top surface of the trace

Er1: Dielectric constant of the first dielectric

Er2: Dielectric constant of the second dielectric

T1: Thickness of the trace

It implements the signal trace between two ground planes in a multi-layer PCB. The return path for a high-frequency signal is located above and below the signal trace on the planes.

### Edge coupled differential stripline

Edge coupled differential stripline for flex PCBs

H1: Height of the first dielectric

H2: Height of the second dielectric

W1: Width of the bottom surface of the trace

W2: Width of the top surface of the trace

Er1: Dielectric constant of the first dielectric

Er2: Dielectric constant of the second dielectric

T1: Thickness of the trace

S1: The separation between the two traces of the differential pair

This configuration has two controlled impedance traces sandwiched between two planes. It is similar to the single-ended stripline. The only difference is that it has a pair of conductors separated by a uniform distance between them.

## Cross-hatched reference plane in flex PCBs

Cross-hatched copper planes are used as reference planes in flex circuit boards. A cross-hatch plane is shown in the image below.

Cross-hatched copper plane in a flex stack-up for controlled impedance

The ratio of cross-hatch conductor width (HW) to cross-hatch pitch (HP) plays an important role while characterizing the cross-hatch plane. If the ratio is about 0.293, 50% of the copper removal can be achieved. The lesser the ratio, the greater the percentage of copper to be removed. The only disadvantage of controlled impedance in flex is the requirement of having a higher controlled impedance value when compared to the rigid copper plane.

Hatch pitch and hatch width of a reference plane

A cross-hatched reference plane means a significant percentage of copper is removed from the plane. It has a remarkable impact on controlled impedance in flex PCBs. Cross-hatched planes donâ€™t provide 100% shielding to the signal traces. The main purpose of cross-hatching the reference plane is to increase the flexibility of the circuit board.

## Controlled impedance for rigid-flex boards

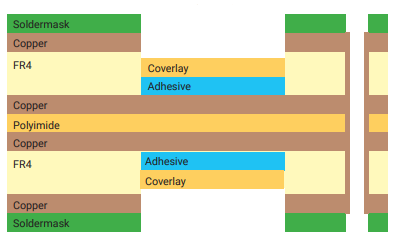

4 layer rigid-flex PCB stack-up

The above image shows a typical rigid-flex stack-up. As depicted, the flex layer (polyimide) is placed on the center of the stack-up. Therefore the impedance traces in the flex layers need to change from microstrip (in the flex area) to stripline once it enters the rigid section. This may require thicker flex layer construction to meet the desired impedance value.

## 2-layer and 3-layer flex stack-ups for controlled impedance

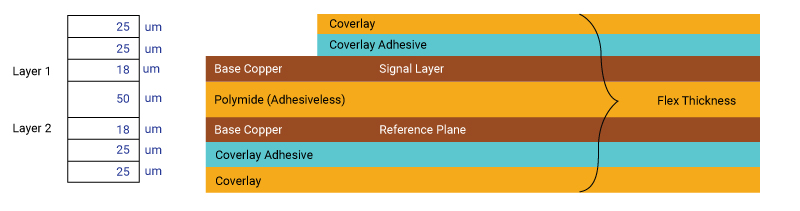

2 layer microstrip arrangement for flex impedance control

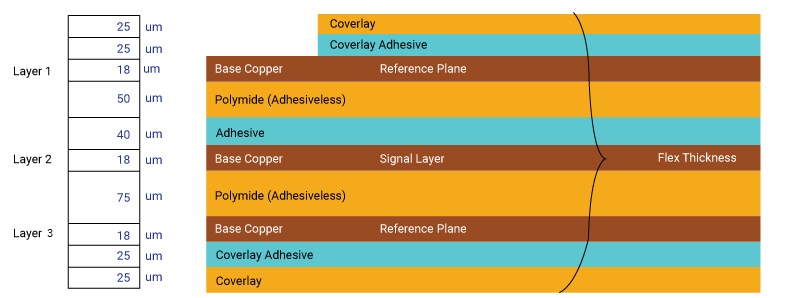

3 layer differential stripline arrangement for flex impedance control

Impedance control in flex designs requires thicker flex cores than standard flex cores to achieve the desired impedance value. Thicker flex cores increase the overall thickness and reduce bendability.

The surface microstrip configuration makes way for the thinnest possible flex core offering the highest degree of flexibility. Stripline configuration allows shielding on either side of the traces. However, this configuration significantly increases the flex thickness which in turn decreases the flexing capability.

## Flex PCB materials for controlled impedance

Flex boards are generally made of polyimide substrates. These substrates offer a lower Dk value (3 to 3.5) when compared to rigid materials. The thickness of the flex materials remains uniform throughout. This makes them ideal for flex-controlled impedance designs.

There are two types of polyimide materials: adhesive-based and adhesive-less materials. Both adhesive-less and adhesive-based materials can be used for the flex CI designs. However, adhesive-less materials are preferred for high-speed applications due to their consistent results.

Advanced materials like Teflon and Teflon/Polyimide hybrids are suitable for high-speed applications. These materials are more expensive than polyimide materials. Standard adhesive-less polyimide materials fulfill the controlled impedance design requirements while reducing costs at the same time. Sierra Circuits uses Dupont materialsÂ for flex PCBs.

Controlled impedance is one of the critical factors in order to minimize the signal reflections in a PCB. If you want to know more about controlled impedance for flex PCBs, let us know in the comments section. We will be happy to address your concerns. To learn more about designing flex boards, download the design guide mentioned below.
