PCB assembly requires certain files to provide a basic idea about the component positions, orientation, and courtyard information of each and every layer. These include Gerber/ODB++, centroid, BOM, assembly drawings, and so on.

All the files for board manufacturing and assembly are generated using design and documentation tools. The procedure to generate PCB assembly files depends on the design software used.

Complete assembly documentation provides a basic insight into all procedures and inspection techniques required to yield the end product. Therefore, it is necessary to know about these files and their generation procedures. In this article, we will discuss the same.

What design files are needed for PCB assembly?

As mentioned above, among the files required for assembly, the most important ones are Gerber/ODB++, centroid file, assembly drawings, and BOM. As a PCB design engineer, if you do not communicate necessary information to your contract manufacturer (CM) through these files, then several errors may arise. These include mismatch of component quantities, absence of pin 1 and polarity markings, missing orientation indicators, footprints, and so on.

These files are important because of the following reasons:

  • Provide effective communication between the vendor and customer for proper board population.
  • The absence of board assembly files may lead to errors related to the position and orientation of components and result in high repair costs.
  • Some data that is not obtained from silkscreen are gathered from these files.
  • Lack of important information like polarity markings or position of through-hole components during manual soldering causes discrepancies.

How to generate circuit board assembly files

For the assembly process, manufacturing data is also required. Let us explore the different file types and the methods to generate PCB assembly files.

Gerber files

Gerber files are helpful in both circuit board manufacturing and assembly processes. These files are generated for each and every layer in the stack-up. Apart from the layer information, there are other data incorporated in these files. All the layers are specifically mentioned like top, bottom, solder mask top/bottom, assembly top/bottom, silkscreen top/bottom, fab layer, and so on.

In addition to the layer descriptions, details regarding aperture definitions and data generated for board etching, also form a part of these files. RS-274D and RS-274X are the most common types of file formats. RS-274D is called standard Gerber and RS-274X is known as extended Gerber. Gerber X2 is another version that supports file extensions like .top and .bot.

ODB++ files impart all the vital information along with the layer details. Hence, by opting for these files, you will be able to accommodate stack-up details, placement information, bill of materials, and fabrication requirements. Thus a single file provides abundant information as compared to Gerber.


DFM Handbook

Generating Gerber files

EDA tools available today help generate Gerber files by merely selecting the required layers. Here are procedures for KiCAD, Allegro, and Altium Designer tools.

  • Select the plot icon from the toolbar on the top. In the pop-up window, choose Gerber as the Plot format and the required Output directory.
gerber-file- generation-in-kicad.png

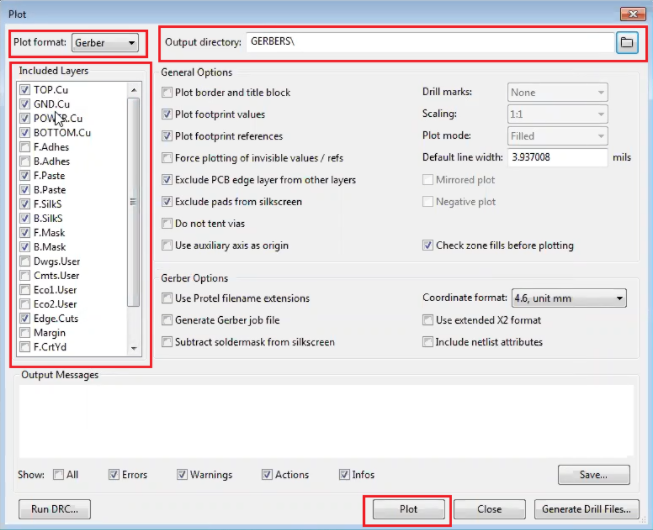

Gerber generation in KiCad

  • Next, check off all the required layers under Included layers option.
  • Remember to select the layers like top paste, bottom paste, forward silk, bottom silk, solder mask top, solder mask bottom as well.
  • Check off your specific requirements under General options.
  • You can uncheck Plot footprint values option.
  • Under Gerber options, select Use Protel filename extensions and then click Plot.
  • The files will be generated and saved in the selected output folder.

For more details about generating Gerber, drill file, netlist, BOM, and other production files in KiCad, read how to export Gerber and other production files in KiCad.

  • Go to Manufacture > Artwork in the top menu bar.
  • In pop-up window, click on Apertures > Edit > Edit Aperture station > Auto > Without rotation, and hit OK.

Gerber generation window in Allegro

  • Choose all the required layers under the Available films section. Right-click on the folder and select Add manual to access more layers.
  • Other parameters to be set come under Film options. Specify the Undefined line width as required (4mils for example). You can check off Suppress unconnected pads option.
  • Now click Select all under the Available films section and choose Create artwork.

Get an in-depth understanding of generating Gerber, netlist, NC drill file, and BOM using Allegro in our tutorial how to export Gerber and design files in Allegro.

Altium Designer
  • Open File > Fabrication Outputs > Gerber Files.
  • In the pop-up window, there are 5 tabs.

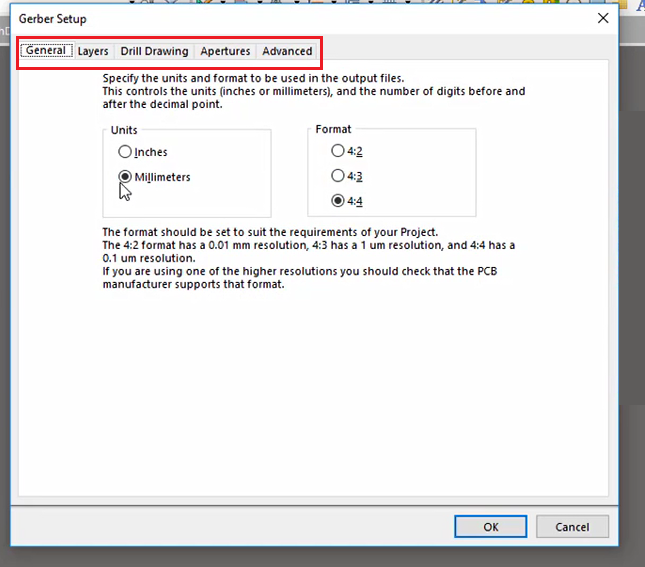

Gerber setup window in Altium Designer

  • Under the General tab, set the units for measurement and number format.
  • The layers tab allows you to select the required layers that should appear in the file. There will be two columns. The left one specifies which particular layer to print and the right one allows to select the layers that are commonly printed on all other layers.

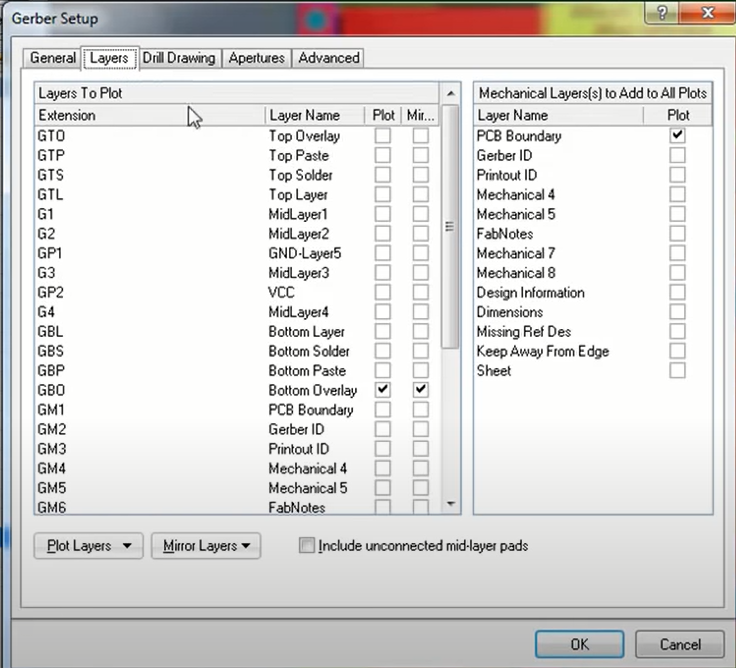

Layers tab on Gerber generation in Altium Designer

  • All the board drilling configurations such as symbols, drawing plots, and drawing guides are done in the Drill drawing tab.
  • Under the Apertures tab, there is an option to activate Embedded apertures that provide the output Gerber in RS274X format.
  • The next tab is called Advanced. Here, choose the Separate file per layer check box under Batch mode and click Ok to generate separate files for each layer.
  • Gerber files are generated at the selected output folder.

Learn more about exporting Gerber, NC drill files, BOM, and ODB++ in detail here how to export Gerber and production files in Altium Designer.

Better DFM by Sierra Circuits

Centroid file

Centroid files describe the X-Y location, orientation, reference designator, layer details, and package information of all the components. These files are also known as X-Y data files or pick and place files. Few of the design tools have the capability to automatically generate centroid files. In some tools, you have to modify existing data to generate these files.

How to create centroid files?

In this section, like earlier, we will discuss the procedure to create these files using the three most commonly used design tools.

  • Follow the path File > Fabrication outputs > Footprint position (.pos) file.
  • In the pop-up window, choose the output directory.
  • Under the Format section, select the format (ASCII or CSV) and units.
  • In the Files section, you have the option to choose between a single file for all layers or separate files for the top and bottom layers. Select the right one and click Generate position file.

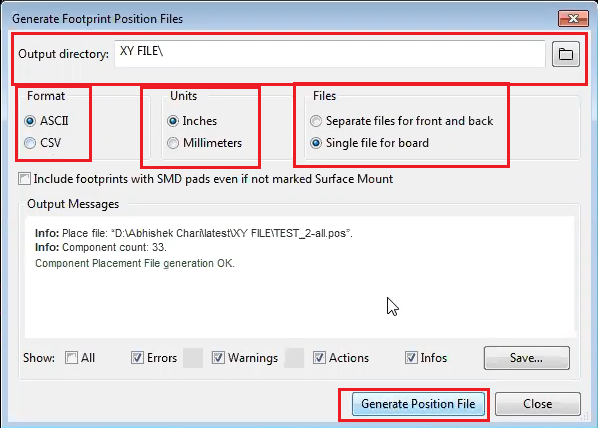

Pick and place file generation in KiCad

  • First, the position of components is obtained from Files > Export > Placement. In the pop-up window, name the file and choose where the origin should be, and click Export. This gives a file with rotation, X-Y coordinates, and footprint names of the components.

Centroid file generation in Allegro

Altium Designer
  • Select File > Assembly outputs > Generates pick and place files.
  • A window appears with all the parameters that are available and lets you choose the ones needed.

Bill of materials (BOM)

BOM includes all the information about the components to be assembled on the circuit board.

BOM Checker by Sierra Circuits

BOM generation

The procedures involved to produce a BOM using the design tools are as follows:

  • Choose the “Generate bill of materials” icon at the top ( alternatively File > Fabrication outputs > BOM).

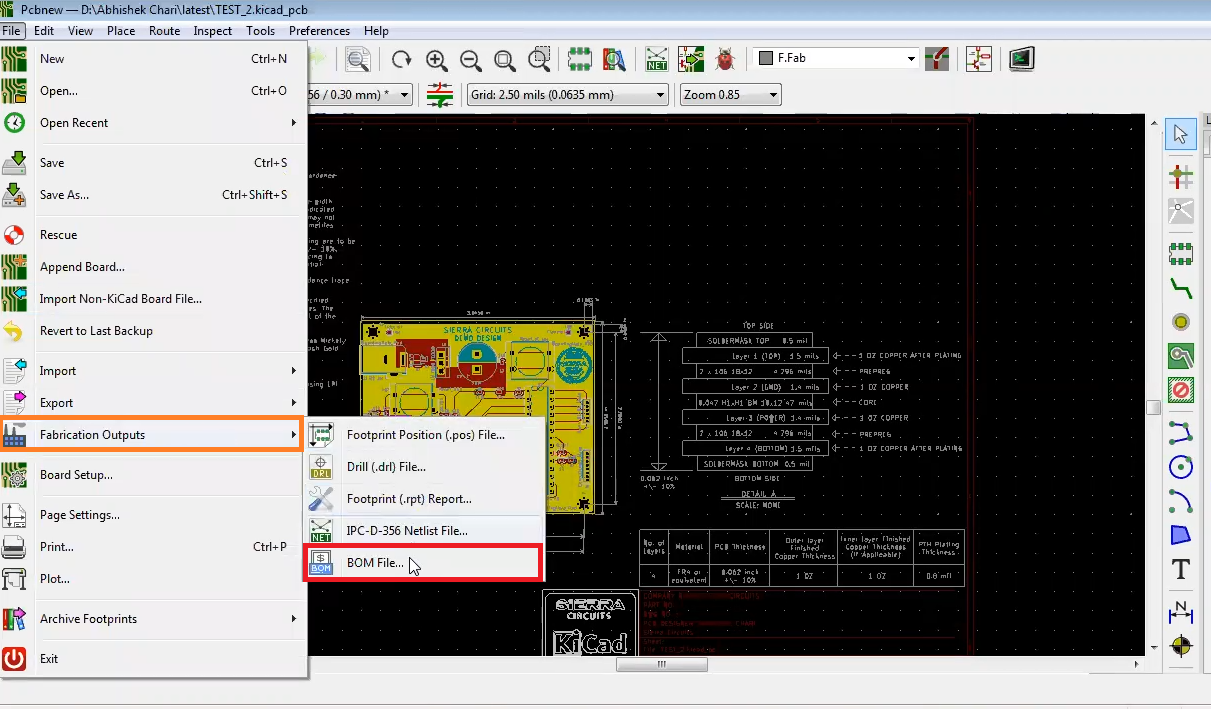

BOM generation in KiCad

  • In the pop-up window, different options for bill of materials are available under the BOM plugins section. You can choose the one that suits your requirement.
  • Select the schematic from the project files. Right-click and choose Edit object properties.
  • In the next window, select the properties that need to be on the bill of materials and remove the unwanted ones. Once done, close the window.
  • Go back to the project, select the schematic, and choose Tools > Bill of materials.
  • In the pop-up, two columns named Headers and Combined property string will be present.
  • In Headers, add all the columns that have been introduced in the Edit Object Properties earlier. The format is “\t” followed by the name.
  • The same has to be added in the Combined property string as well. The format is “\t{new property}”. Make sure that the names are exactly the same as those given in the Edit Object Properties option earlier (including spaces and uppercase).

BOM pop-up window in Allegro

  • Check-off the Open in Excel box and click OK.
Altium Designer
  • Go to Reports > Bill of materials. In the new window, select the Columns tab.
  • Customize the BOM by adding or removing properties as per requirement.
  • Click Export to save the BOM file with the preferred name.

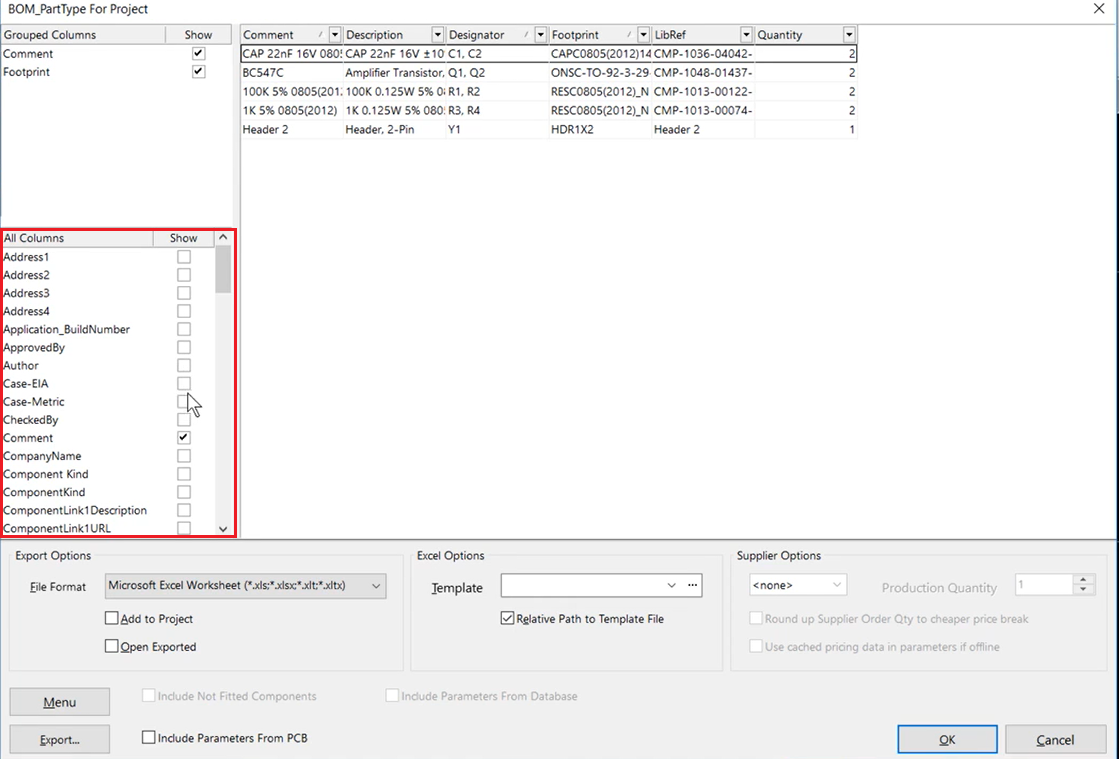

BOM generation in Altium Designer

Assembly drawing

Assembly drawings are a set of documents that describe how the components are placed on the outer layers of a PCB. The assembly team and inspection team of technicians refer to these documents to get an idea about the accuracy of component placement. An assembly drawing includes the following:

  1. Pictorial representation: An outline of the board showing the component locations and corresponding reference designators.
  2. Assembly details: Included when there is a space restriction in the pictorial to explain densely packed regions or small parts.
  3. Assembly notes: Help the assemblers with information like the designation of primary side, mounting instructions, soldering instructions, specialized assembly methods, height restrictions of the board, cable orientation, etc.

How to generate assembly drawing

Here we will discuss the methods required to generate assembly drawings.

  • Go to Plot > PDF > select F.Fab and B.Fab layers (assembly layers in KiCad).
  • Check “Plot border and title block”, “Plot footprint values”, “Plot footprint references”, “Force plotting of invisible values/refs”, “Exclude pads from silkscreen” and uncheck “Exclude PCB edge layer from other layers”.

There are two methods here.

  • Go to File > Export > PDF. In the window, choose the required layer whose layout is needed, under Available Films.
  • These films can be customized under Manufacturing > Artwork.
  • Select the fab layer, click on Export to generate a PDF of the fab layer, and similarly, choose generate the PDF of the assembly layer.

Assembly drawing exporting in Allegro

Alternative method:

  • Select File > Plot and save as PDF. Whichever options are turned on and are visible on the board at the time of plotting will be printed as a PDF.
Altium Designer
  • In the .pcbdoc file, go to File > Assembly Outputs > Assembly Drawings.
  • A preview of the assembly file will appear. Click on the Print button below and save it as a PDF file.

Proper documentation is a necessity when it comes to quoting, assembly, and inspection. There are so many assembly stages dependent on these files and hence their presence is vital. We hope that the file types and generation procedures are clear from this article. If you have any queries, please reach out to us in the comments section.
