Flexible PCB design errors can be avoided by ensuring the manufacturability of your design and by communicating with your supplier.

Depending on the application, a higher manufacturing cost will cut the overall costs in the long run. Pay close attention to the complexity of the flexible PCB application as well as the capabilities and recommendations of your supplier.

Give your supplier an idea of what you want to do, and make sure they can manufacture your PCB design.

In this article, we will be looking into the following aspects of the flexible PCB design:

  • Flexibility and number of layers of flex PCBs
  • Flexible PCB traces
  • Trace width
  • Support for pads
  • Coverlay
  • Flex vias and via keep-out areas
  • Drill to copper
  • Controlled impedance traces in flex PCBs
  • What are PCB stiffeners? Why is it used in your flex PCB?
  • Flex PCB stackup construction and layer order

Flexibility and number of layers of flex PCBs

Knowing the number of times your flexible PCB will bend is crucial to your design. If a PCB is bent more times than the design allows for, the copper will begin to stretch and crack. Bend radius is the minimum amount the flex area can bend.

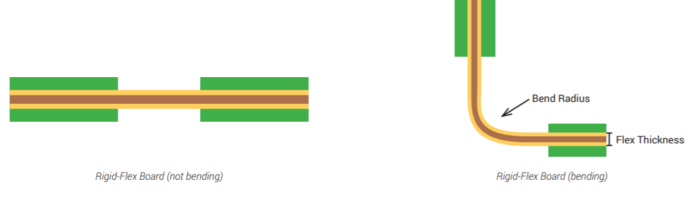

Rigid flex bend radius

Bend radius in rigid-flex circuit

If a PCB flexes a maximum of 20 times, then it is called a semi-static flex PCB. If a PCB is regularly flexed and twisted, it is called a dynamic flexible PCB.

Bend radius can be calculated using the below table:

1 Layer (single-sided) Flex Thickness x 6
2 Layer (double-sided) Flex Thickness x 12
Multi-Layer Flex Thickness x 24

Consider the following points while designing the bend areas:

  • Avoid 90-degree bends. Tighter bends increase circuit damage.
  • Always measure the bend radius from the inside surface of the bend.
  • Place conductors smaller than 10 mils inside the neutral bend axis, as they tolerate compression better than stretching.
  • Avoid plated through-holes within the bend area.

Better DFM by Sierra Circuits

Flexible PCB traces

The performance and longevity of a flexible PCB can be directly attributed to the layout of the circuitry. Signals should never be routed at sharp angles. Sierra Circuits recommends the largest radius possible for your design. In addition, I-beaming will not only reduce the flexibility of your circuit, it will increase stress contributing to the thinning of copper circuits at the bend radius.

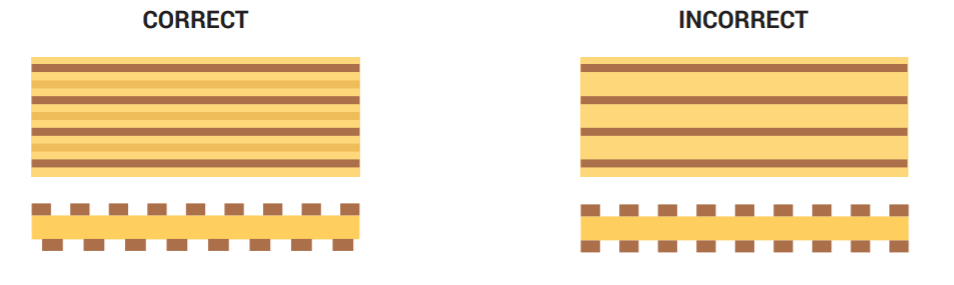

When designing multi-layer flexible PCBs, stagger traces on the front and back.

Flex PCB with staggered traces

Flexible PCB with staggered traces

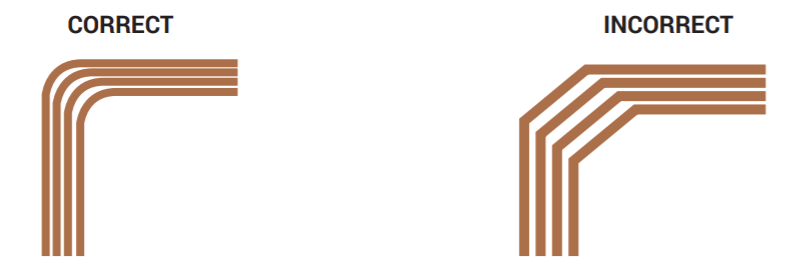

Use curved traces instead of traces with corners

Flexible PCB Errors curved traces on flex PCBs

Curved traces on rigid-flex or flexible PCBs

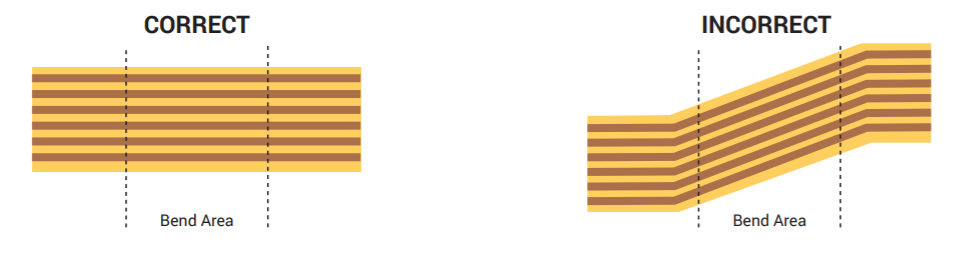

F lexible PCB Errors perpendicular traces on flex circuit

Perpendicular traces rigid-flex or flex circuit

Trace width

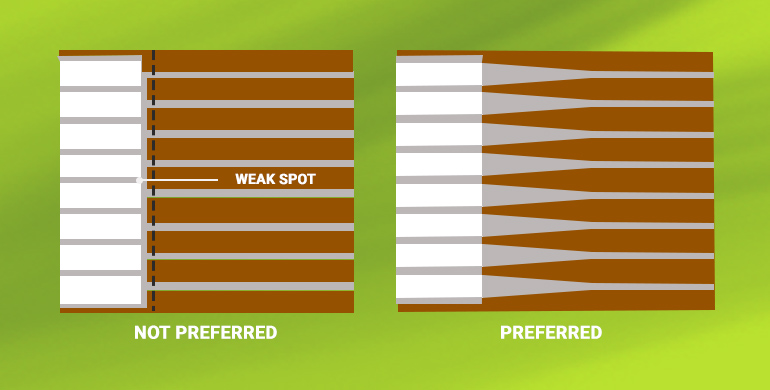

In a flexible PCB, a trace entering a pad forms a weak spot in which the copper might get fatigued over a point of time. It is always recommended to taper down the pads towards (as shown below) the end in which they are connected to the traces.

Trace entering a row of pads on rigid flex circuit

Trace entering a row of pads on a rigid-flex or flexible PCBs

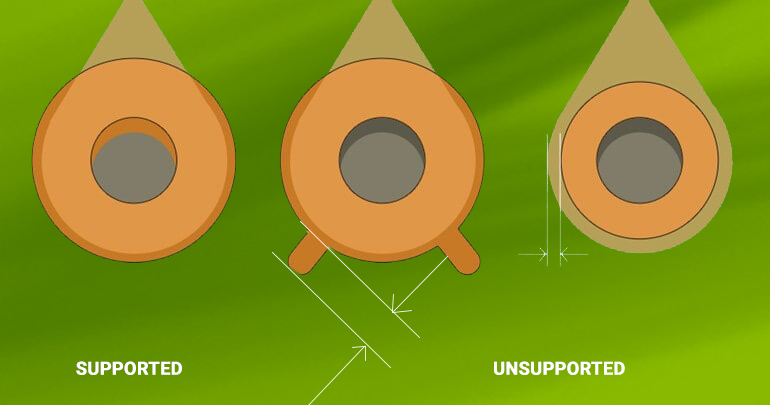

Support for pads on flexible PCBs

On a flex circuit, copper is prone to be detached from the substrate due to the bending of the flex circuit. It is vital to provide mechanical support for the exposed copper. The through-hole plating in the vias inherently provides mechanical support to the vias in the flex region. For this reason, additional through-hole plating of up to 1.5 mils is recommended for rigid-flex and flex circuits. Usually, SMT pads and non-plated through-holes are referred to as unsupported, and they require additional measures to prevent detachment.

Support for pads on flexible PCBs

Support for pads on flexible PCBs

Coverlay

For coverlay, the trace to mask opening can be as close as 3 mils. For the solder mask, 3 mils could lead to misregistration or undercut issues (relating to the imaging of the solder mask). Sierra Circuits suggests maintaining a distance of at least 4 mils for solder mask.

Keep in mind that coverlay is not the same as the solder mask. One of the largest differences between coverlay and solder mask is their state. Coverlay is a solid material made of plastic polyimides, or plastic with adhesive, while the solder mask is a liquid. Keep coverlay dam (prevents the flow of molten solder on one pad to a neighboring pad) sizes a minimum of 10 mils; solder mask dam sizes should be a minimum of 4 mils.

Flex vias and via keep-out areas

Vias are at a greater risk of getting peeled off from the flex layers. Consider the following points to reduce the risks associated with vias.

  • Make annular rings as large as possible.
  • Vias should be tear-dropped. Teardrops can reduce potential stress concentration points on the PCB.

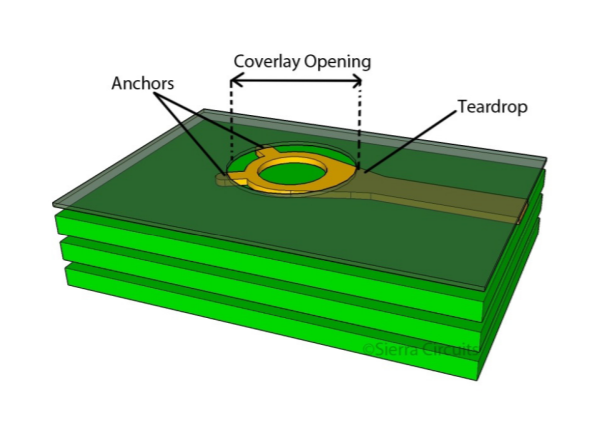

  • Adding tabs or anchors to vias, as shown below, will also help prevent peeling.
Tabs or Anchors in flex vias

Tabs or Anchors in flex vias

Via locations:

  • Vias are not reliable in areas that will bend.
  • In a dynamic application, flexed vias can crack very quickly.
  • Vias are okay over a stiffener, but vias just off the edge of a stiffener are at risk of cracking.
  • Vias should be placed at least 20 mils away from the rigid-flex/flex interface.

Drill to copper

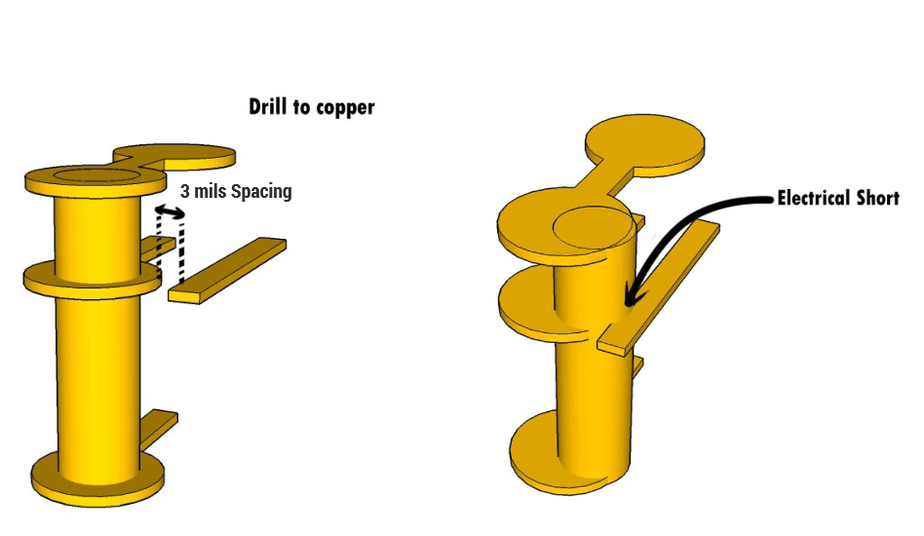

When designing flexible products it is crucial to keep drill to copper in mind. That is, the distance between a hole (via or non-plated) and a copper trace. The flexible dielectric materials that are used to manufacture flex products are not as dimensionally stable as a standard rigid material. This material moves, shrinks, and contracts during the manufacturing processes which makes drill to copper critical to a successful product. Drill to copper should be of a minimum of 8 mils.

Drill to copper spacing in flex PCBs

Drill to copper in flex PCBs

Controlled impedance traces in flex PCBs

Impedance or commonly called characteristic impedance of a PCB trace is a measure of how much the circuit impedes the flow of current. It is like resistance, but it also takes into account the effects of capacitance and inductance. Impedance is measured in ohms.

Impedance Calculator by Sierra Circuits

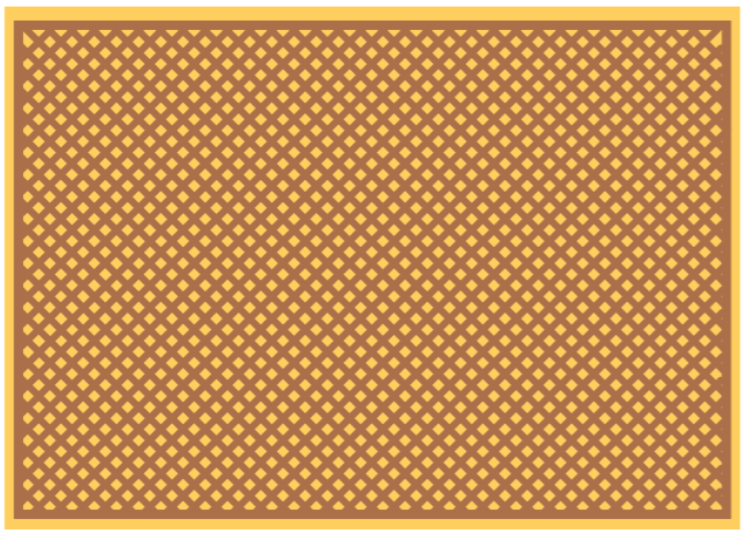

A cross-hatched reference plane has a significant impact on the controlled impedance value. Since cross hatching means the plane is no longer solid copper but has a significant percentage of copper removed from it, the plane no longer provides 100% shielding to the signal traces. As such, the controlled impedance of the signal traces increases.

Cross hatched ground or power planes in flex PCBs

Crosshatched ground or power planes in flex PCBs

What are PCB stiffeners? Why are they used in flex PCB?

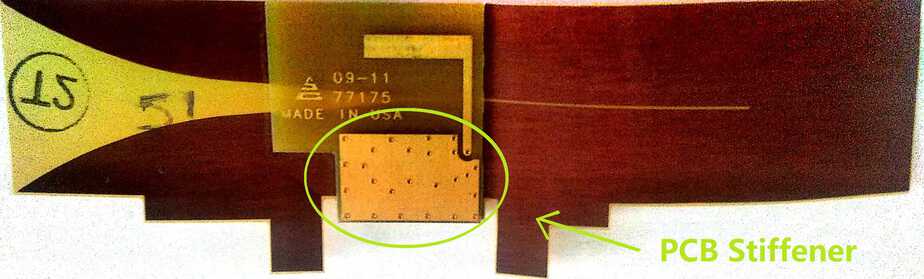

FR4 Stiffener for flex PCB

FR4 Stiffener for flex PCB from our own facility.

A PCB stiffener isn’t an electrical piece of the PCB, yet assumes the job of offering mechanical support. It is an additional mechanical piece that provides mechanical support to the flex PCB during the assembly and application.

We utilize a stiffener when we have to harden a specific area in the flex circuit. First, we need to understand that the PCB stiffener is not an integral part of the electrical circuit board design. This will not let the circuit bend and will protect the integrity of the part’s solder joint. Stiffeners support the specific areas of the board that contain SMT and/or PTH components.

Rigid-flex PCB stackup construction and layer order

Rigid-flex stack-up differentiates between rigid layers and flexible layers in the PCB. The flexible PCB stack-up drawing will give the thickness of each layer including the copper thicknesses of the conductive layers. This should also show which layers are rigid material and which layers are flexible material including copper weights. Sierra Circuits can assist you in designing your flex stack-up.

Stackup Planner by Sierra Circuits

Conclusion

The design of flexible PCBs requires several additional considerations. Keeping things simple in terms of the design and the PCB materials can help you steer clear of some of the flex PCB problems we outlined here. Usage of standard materials is recommended when possible because they have proven track records when it comes to their throughputs and yields.

HDI PCB material selector by Sierra Circuits

Getting a great flex PCB starts with finding a top-notch PCB supplier like Sierra Circuits. Check out our main flex PCB page to find out more, and also be sure to take a look at our flex PCB design guide.
