A guitar amplifier is an audio electronic device that can be used to amplify the signal of a pickup attached to a guitar. By altering the tone frequencies of the instrument through an amp, the musician can control its distortion, tone, and volume.

In this article, we’ll discuss how to build a homemade 10W guitar amplifier.

Before we begin, there are a few crucial points we must discuss:

  • Exercise caution before plugging in your project—make sure it’s fully assembled.
  • Be sure to solder an IC socket to your board so you can plug in your TL072 chip rather than soldering it directly onto the board.
  • Polarity matters! The ‘tip’ of your ¼” input audio jack is the positive end and the ‘sleeve’ is negative end. Make sure you solder it correctly or you’ll introduce unnecessary noise.
  • You can avoid shorting the pins of your op-amp by breaking the connection of the metal strips under your TL072 chip. You can do this by scratching away the metal with the sharp tip of a pin. In order to avoid shorting the pins of the op-amp, it will be necessary to break the connection of the metal strips under the chip.

How Does a Guitar Amp Work?

The input signal input for the amplifier comes initially through a ¼” audio jack that produces a mono audio jack (meaning it doesn’t differentiate between the left and right speakers audio input). The input to the audio jack comes from an electromagnetic pickup, which is made of hundreds of coils, each of which consists of resistors and inductors connected in series with one another. These resistors and inductors are, in turn, connected to a capacitor in parallel.

The guitar pickup works on the basis of Lenz’s law, which states that the direction of induced current is always opposed to the change in magnetic flux produced by the circuit. When the guitar strings of an electric guitar get magnetized by the coil, the movement of the strings produces a source voltage (Vs) which supplies an electric signal (V) to the audio jack according to Lenz’s law.

Any guitar amplifier consists of three main circuits, which we will discuss below:

  • Volume
  • Distortion
  • Tone

Guitar Amplifier Schematic and Circuits

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

Figure 1. Guitar amplifier schematics

The Tone Circuit

The first stage of the amp is the tone circuit, which uses a dual JFET-input op-amp IC, the TL072.

As you’ll see in the schematic, we have a sliding capacitor. This forms a potentiometer on the feedback loop of the op-amp.

To increase the base tone of the guitar, you can slide the capacitor to the very left position of the potentiometer. This amplifies the lower frequencies in the pickup signal.

Conversely, to increase the treble, you can slide the capacitor to the very right position of the potentiometer. This is accomplished by short-circuiting the resistor placed on the feedback loop, removing the capacitor completely. This results in the amplification of the higher frequencies in the pickup signal.

The Distortion Circuit

Distortion is an effect a musician can use to add a “fuzzy” tone to their guitar’s sound, typically by increasing their gain.

In our project here, we’ll create a clipping circuit by using two diodes. First, it’s important to note that there are actually two types of clipping: hard and soft. Soft clipping, sometimes called overdrive, occurs when the gain and the input signal level are inversely proportional to each other. Hard clipping, on the other hand, denotes restricting the signal level within a given range. This is also known as distortion.

In the clipping process, we’ll produce new frequencies that weren’t part of the original audio signal. Such frequencies can be harmonics or inharmonics where the former denotes whole number multiples of the original signal’s frequencies and the latter denotes more complex scenario where newer subharmonics are produced via intermodulation.

The Volume Circuit

For the volume circuit, we’ll need a low-frequency class AB power amplifier, the TDA2030.

Project Construction

You may choose to use either perf board or a printed circuit board for this project. For each of the three major stages, we’ll verify the guitar amplifier output. We’ll use the same TL072 IC in both the tone and distortion circuits.

The ideal power input for VDD (power supply of the adapter) is 12V.

The Tone Stage

As we discussed above, the following circuit for the tone stage uses a TL072 op-amp and a 50Kohm potentiometer.

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

Figure 2(a). The input and tone circuit schematics

You can see the input and output of the circuit displayed on the CRO below.

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

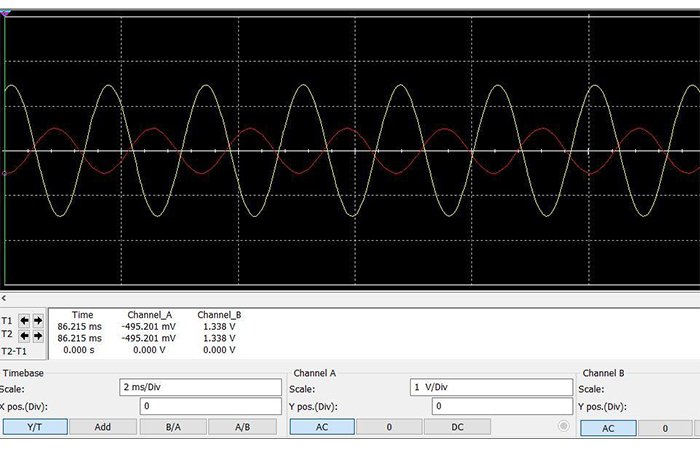

Figure 2(b). Input signal and tone circuit output

Channel-A (red) = input signal form the guitar

Channel-B (yellow) = output signal of the tone circuit taken at resistor R5

The Distortion Stage

In the distortion stage, we’ll need to clip the output waveform that comes from the TL072 op-amp’s pin 1. As we’ve already covered earlier, this circuit requires two 1N4001 diodes in the clipping circuit. We’ll also use a 10Kohm linear potentiometer.

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

Figure 3a. Distortion circuit schematics

You can see the TL072 distorted output below.

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

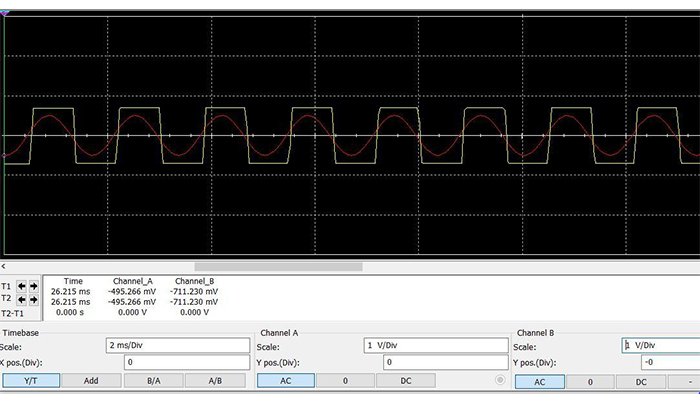

Figure 3(b). Input signal and distortion circuit output

Channel A (red): Input signal

Channel B (yellow): Distorted output signal

The Volume Stage

All we have left to do here is to amplify the distortion of the circuit output. We’ll use the audio amp ICs TDA2030/TDA2050/LM386 for this final portion of the project, which connects to the speaker.

You’ll notice in the schematic below that we’re including an LED so we can indicate when the amp is on or off.

Here’s the schematic at hand:

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

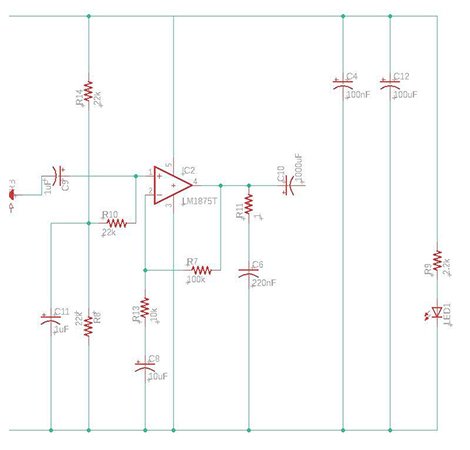

Figure 4(a). Volume circuit schematics

And here’s the corresponding CRO output:

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

Figure 4(b). Input signal and volume circuit output

Channel A (red): input signal from the guitar

Channel B (yellow): Amplifier output

Note: Take a minute to check out the difference between the input signal from the beginning and the output signal above. Note the distortion and also the fact that the output voltage is double the input voltage.


Table1: List of required components
Type Value Qty Markings Directional Direction Indicated
Resistors 1 Mohm 3 brown black green NO
5.6 kOhm 1 green blue red
1 kOhm 1 brown black red
22 kOhm 3 red red orange
4.7 kOhm 1 yellow violet red
2.2 kOhm 1 red red red
100 kOhm 1 brown black yellow
10 kOhm 1 brown black orange
1 Ohm 1
Potentiometers 50KB pot 1 B50K (linear) NO*
10KB pot 1 B10K (linear)
10KA pot 1 A10K (logarithmic)
FIlm Capacitors 47nF 1 473 NO
100nF 1 104
10nF 1 103
0.22 uF 1
Aluminum Capacitors 100uF 1   YES

Stripe on negative side

(shorter lead)

1000uF 1
1uF 4
10uF 1
Integrated Circuits TL072 1   See diagrams
TDA2030 1
Diodes 1N4001 2   Silver stripe = negative end
LED red LED 1

flat edge/short er

lead is negative

Miscellaneous IC socket 1   NO
switch 1
wall power plug 1
power jack 1
¼” Phono plug 1   YES sleeve is negative
speaker 1
perfboard 1

Pin Diagrams


Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,
Figure 6. Tl072 IC and pin diagram


Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

Hyperedge- . IoT, Embedded Systems, Artificial Intelligence,

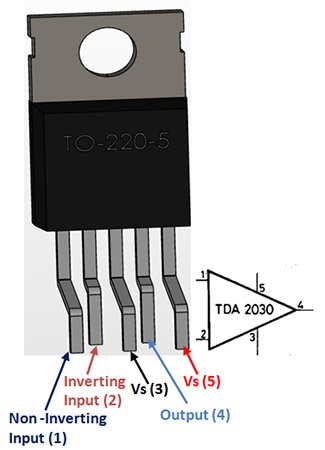

Figure 7. TDA2030 IC and pin diagram

That concludes this guitar amplifier project! Share your builds and branching projects in the comments to tell us how it went.
