During the annual Snapdragon Tech Summit in early December, Qualcomm introduced its latest flagship product, the Snapdragon 888 5G mobile platform, which Qualcomm says will set the benchmark for flagship smartphones in the year to come.
Qualcomm Snapdragon 888
A 5G-ready mobile platform, Snapdragon 888 uses a third-generation 5G modem directly integrated into the chip’s circuit and supports both frequencies below 6 GHz and mmWave with carrier aggregation. It also has a maximum download speed of 7.5 gigabits per second and a maximum transmission speed of 3 gigabits per second.
888’s New Architecture
Snapdragon 888 is fabricated using Samsung’s N5 process and is Qualcomm’s first high-end system chip with a modem built into the circuitry. This modem is a third-generation Snapdragon X60 5G modem, initially released in February 2020, that provides support for standalone and non-standalone network technologies and Dynamic Spectrum Sharing (DSS) in addition to mmWave and sub-6 GHz frequencies.
The Snapdragon 888 circuit itself contains eight processor cores that are separated into three different groups.

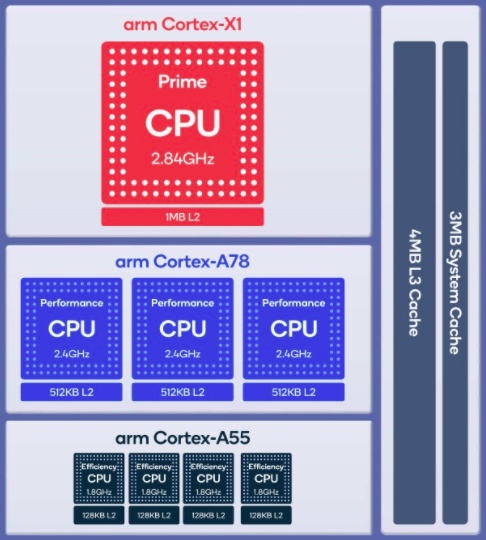

An illustration of Snapdragon 888’s three processor core clusters
The Qualcomm KryoTM 680 performance core is the first cluster, generating a 25 percent increase in overall CPU performance according to the company. This core is based on Arm’s next-generation Cortex-X1 core and operates at a clock speed of 2.84 GHz. It also includes 1024 KB of L2 cache.
Arm says that the X1 core offers a 30 percent IPC performance improvement over the Cortex-A77 core that Qualcomm used in the Snapdragon 865.
Supplementing the Arm Cortex-X1 performance core is a cluster consisting of three Cortex-A78 cores operating at a maximum clock speed of 2.4 GHz. Each of these has its own 512 KB L2 caches. The third and final processor cluster includes four Cortex-A55 cores operating at a maximum clock speed of 1.8 GHz, each with its own 128 KB L2 caches.
The First Commercial Chip to Use the Arm Cortex-X1
What’s interesting about Snapdragon 888 is that it’s the first commercial chip to make use of Arm’s Cortex-X1 as part of the Kryo 680 cluster.
Other features of the Snapdragon 888 include 4 megabits of L3 cache, a system cache of 3 megabits, a type-1 hypervisor that can isolate data between apps and multiple operating systems on the same device, and support for Bluetooth 5.2 with two antennas.
In a press release, Qualcomm SVP Alex Katouzian said: “The new flagship Snapdragon 888 Mobile Platform will enable OEMs to further differentiate their devices and allows users to experience the latest cutting-edge mobile technologies.”
All images used courtesy of Qualcomm Technologies, Inc.
