After the layout, the design is converted into a standard file format called Gerber files. Most PCB makers use this widely accepted format for manufacturing. Therefore designers need to know how to generate Gerber files in Allegro PCB Editor, the Cadence PCB design software.

Let’s assume that we have completed the PCB design in Allegro. Once our design is ready, we can proceed to generate the artwork files. We will cover the following steps for exporting files and setting rules in this article:

How to export Gerber files in Allegro PCB Editor

Open your PCB layout in Allegro PCB Editor. To generate a Gerber file, follow these steps:

  • Click Manufacture > Artwork
  • A window will popup
Artwork option in Allegro Manufacture menu for Gerber files

Artwork option in the Manufacture drop-down menu. Image credit: Cadence Allegro.

Join the best webhosting platform

The popup window: Artwork Control Form.

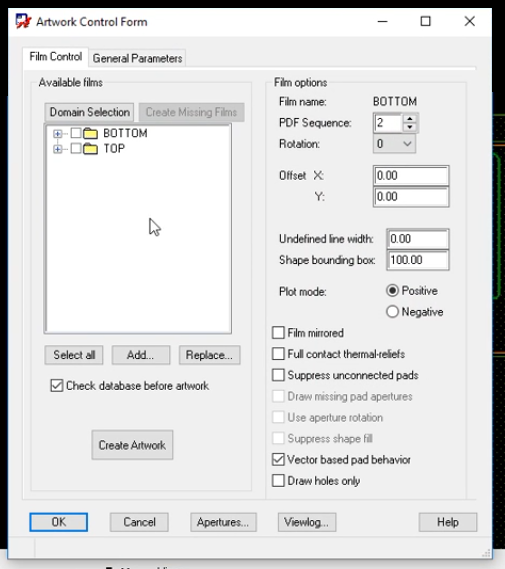

How to configure artwork control form in Allegro

Popup window for Gerber generation. Image credit: Cadence Allegro.

The main purpose of this popup is to select all the required layers in the Available films section. But before that, we have to set the Apertures. For that, follow these steps:

Click the Aperture button > A window will popup

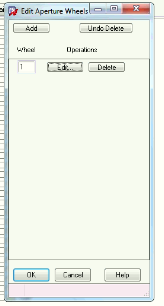

The popup window: Edit Aperture Wheels

How to configure aperture settings in Allegro

Edit aperture wheels window in Allegro. Image credit: Cadence Allegro.

Click Edit > A window will popup

The popup window: Edit Aperture Station

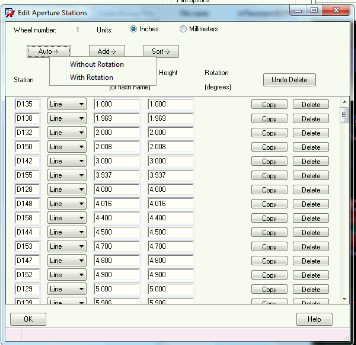

Configuring aperture settings in Allegro

Edit aperture station window in Allegro. Image credit: Cadence Allegro.

In the Edit Aperture Station window, click Auto > select Without Rotation > click OK.

Once the aperture setting is complete, you will be directed back to the Artwork Control Form popup.

Now, look at the “Available films” column; the only options available will be top and bottom films by default. You can add all the required number of layers here. Let’s check out how to add layers. For example, here we are adding an outline layer. To do that:

  • Right-click on the folder > Add Manual
  • A window will popup
  • Add layer name in the popup and click OK
  • Now a window for subclass selection will popup

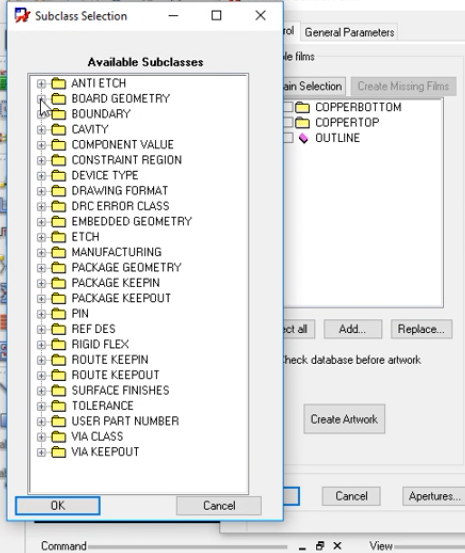

How to select subclass in Allegro PCB editor

Subclass selection window in Allegro. Image credit: Cadence Allegro.

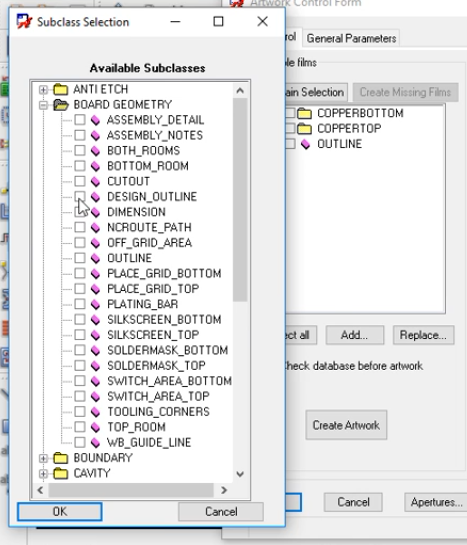

  • Select the subclasses from the Board Geometry > select DESIGN_OUTLINE > click OK. Now, the outline layer will appear among the available films.
How to select subclass to generate gerber in Allegro

Selecting subclasses in Allegro. Image credit: Cadence Allegro.

In the same way, you can add N number of layers such as silkscreen top, silkscreen bottom, solder mask top, and bottom, etc.

  • Set a parameter in “Undefined line width” for all films
  • Next, click the General parameter tab on the top
  • Choose Device type, inches as Output unit, Film size limits, Format values, Error action, etc. Choose all the required settings in the general parameters tab and go back to the Film control page

Now click ‘Select all’ > then click ‘Create Artwork’

A notification will appear on the bottom left corner about the saved artwork.

To view your generated Gerber, click Viewing.

How to export NC drill files in Allegro PCB Editor

  • Go to Manufacture > NC > NC drill
  •  A window will popup

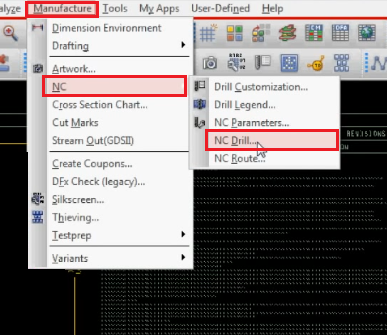

How to export NC Drill file in Allegro

Exporting NC Drill file in Allegro. Image credit: Cadence Allegro.

Set the parameters in this popup window: NC Drill

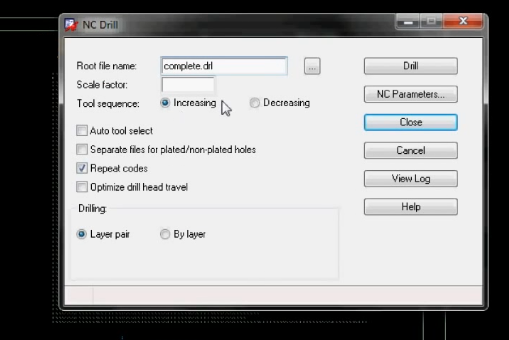

How to configure NC drill file in Allegro

Configuring NC drill file in Allegro. Image credit: Cadence Allegro.

  • Choose a Root file name
  • Check Auto tool select
  • Uncheck Repeat codes
  • Check Optimize drill head travel
  • Check Increasing from tool sequence options
  • Check Layer pair from drilling option
  • After all the settings are done, we need to set the NC parameters. To do that:

Click NC parameters from the above window > A new popup window will appear

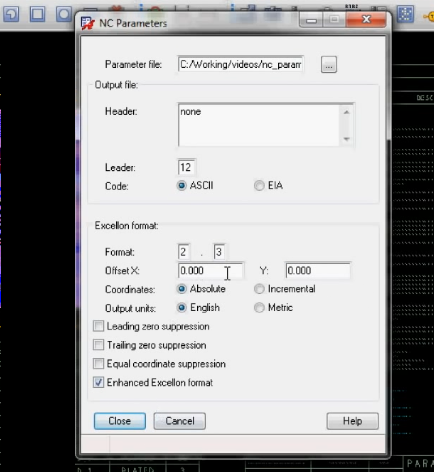

Setting up NC parameters in Allegro

NC parameters popup. Image credit: Cadence Allegro.

Required settings in the NC parameters window

  • Make sure Leading zero suppression & Enhanced Excellon Format are checked
  • Select ASCII as code
  • Choose all other settings as per your requirements

Once you have done all the required settings in the NC parameters, click Close.

This will lead you back to the NC Drill window with the Drill button. Click on Drill.

The drill files will be generated in the selected root location.

Read about the future of Gerber files: IPC-2581 Set to Retire Gerber Files Across the Board

DOWNLOAD OUR IPC CLASS 3 DESIGN GUIDE:

IPC Class 3 Design Guide

How to export Netlist in Allegro PCB Editor

To export the netlist, open the schematic of your design. Select the .dsn file from the project files for which you need to generate the netlist file. Now, follow these steps:

  • Click Tools > Create Netlist
  • A window will popup

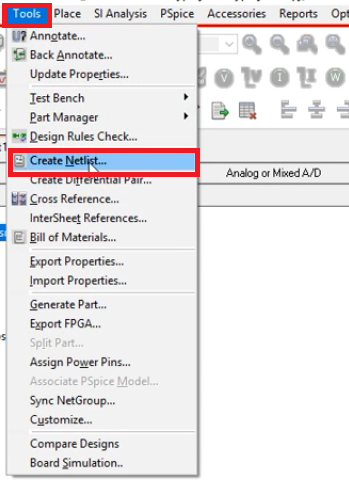

How to generate netlist in Allegro

Generating Netlist in Allegro. Image credit: Cadence Allegro.

The popup window: Create Netlist

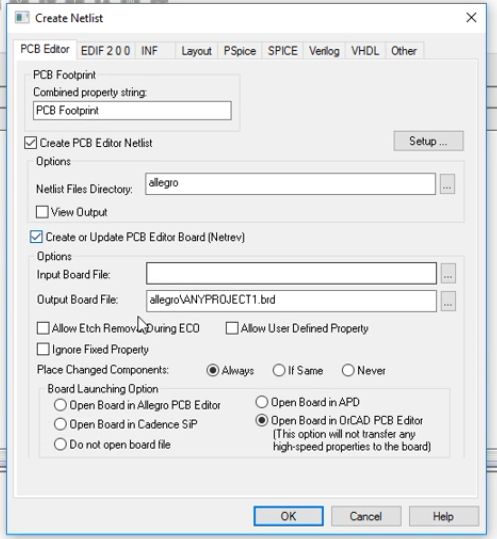

How to setup PCB Editor to generate Netlist in Allegro

Setting up PCB Editor for Netlist generation. Image credit: Cadence Allegro.

  • Combined property string should be PDF Footprint
  • Select the Output directory from Netlist Files Directory, where you want to save the file
  • Check “Create PCB Editor Netlist”
  • Check the “Create or update PCB Editor Board”
  • Name your netlist file in the Output Board File
  • Choose a Board launching Option. If you don’t have the license for Allegro PCB Editor, then check Open Board in OrCAD PCB Editor

Now click OK to save your netlist file.

Also read, How to Export Gerber and Production Files in Altium Designer

Better DFM by Sierra Circuits

How to export BOM in Allegro PCB Editor

Before generating the BOM, we need to check whether we have added all the information for each of the components in the schematic. For that, type ctrl+A then ctrl+E. Now you can see all the information about the components. Make sure you have added all the details. Once this is done, we are ready to export BOM.

To export BOM, follow these steps:

  • Select your design file that ends with .dsn > Tools > Bill of Material
  • A window will popup

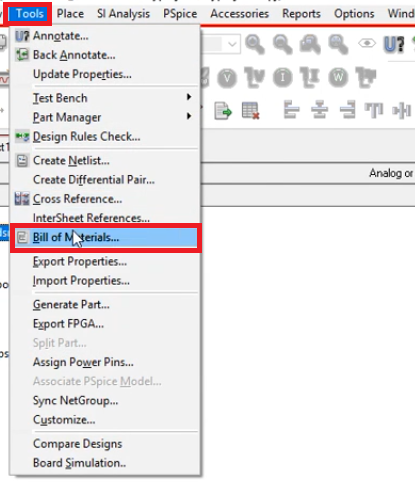

How to generate BOM in Allegro

Bill of Materials option in the tools drop-down menu. Image credit: Allegro

The popup window: Bill of Materials

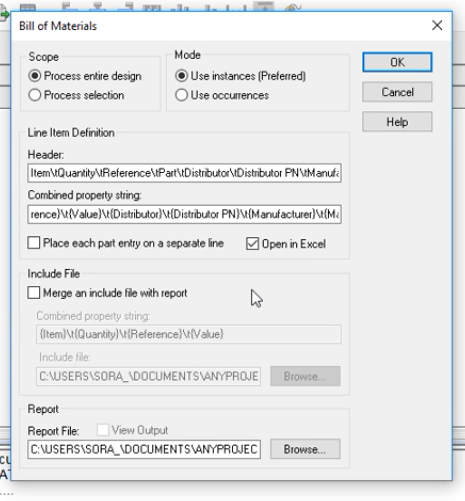

Exporting BOM in Allegro

Bill of Materials popup. Image credit: Cadence Allegro.

BOM Checker by Sierra Circuits

  • Add the Headers and Combined property string.
  • Check Open in Excel
  • Select the Output directory where you want to save the file

Now click OK to save your BOM file.

How to export PDF in Allegro PCB Editor

We must generate a PDF for schematic and layout design. First, we are going to generate a PDF of the schematic. To do that, follow these steps :

Open the schematics.

  • File > Export > PDF
  • A window will popup

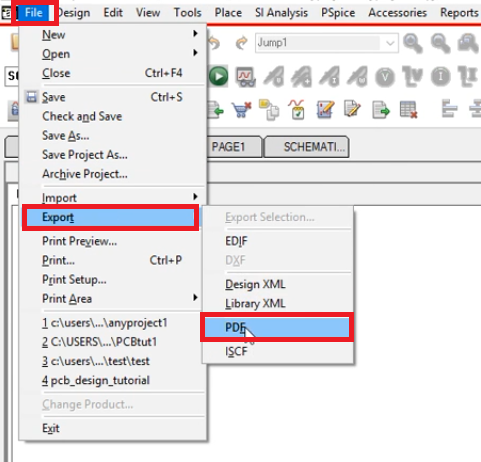

How to generate PDF files in Allegro

Generating PDF files in Allegro. Image credit: Cadence Allegro.

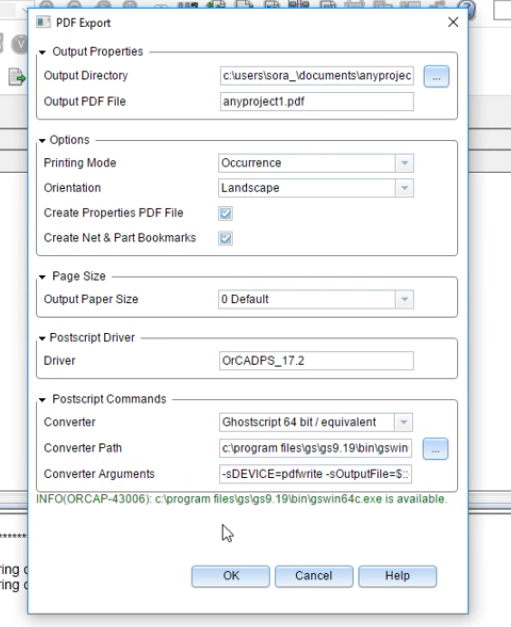

The pop window: PDF export

Exporting PDF files in Allegro

PDF export popup in Allegro. Image credit: Cadence Allegro.

  • Select the Output directory where you want to save the file
  • Retain all other settings as default.
  • We need a converter to generate a PDF file. Here we have the Ghostscript converter installed. If you haven’t installed Ghostscript, you have a link at the bottom of the popup. You can install the Ghostscript from the link.

Now click OK. Your file will be generated at the selected location.

Also read: How to Export Gerber and Other Production Files in KiCad

Generate PDF for layout design

  • Go to Export > PDF
  • A window will popup

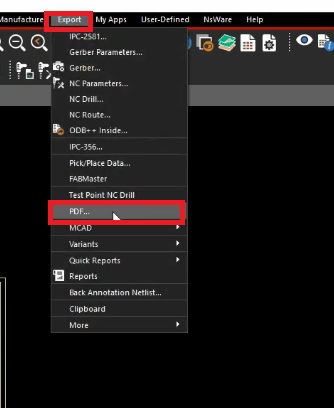

Exporting PDF files in Allegro

Exporting PDF files for layout in Allegro. Image credit: Cadence Allegro.

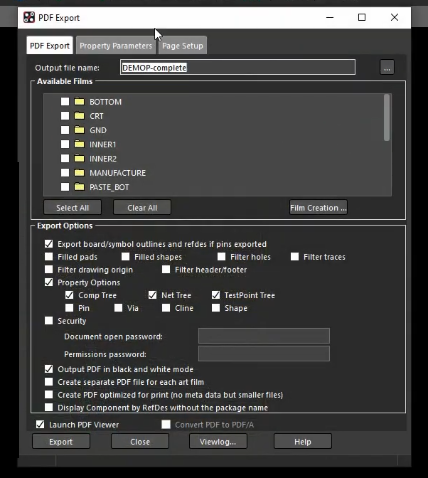

The popup window: PDF export

Generating PDF files for layout in Allegro

PDF files for layout. Image credit: Cadence Allegro.

If you have already created the Gerber files, you can see your previously created films in the ‘Available Films’ column.

  • Name the file in the Output File Name section
  • Check the Output PDF in black and white mode only if you prefer to generate the PDF file in B&W.
  • To encrypt the PDF, select security and set a password for your file.
  • Also, set Property parameter and Page setup.

Then click Export to generate the file.

This is how we export Gerber and other files in Allegro that is required by the PCB manufacturers. After the files have been generated, verify them, and send them to your manufacturer.
