This series is a continuation of work done in two previous series. The first examined if inphase and quadrature (I/Q) combination and separation should be done analogly or digitally. The performance of I/Q modulators and demodulators, as well as of analog-to-digital converters (ADC) and digital-to-analog converters (DAC), were examined. We also discussed what makes for good performance of a communications link in this context.

ADCs and DAC are called data converters. Since not much information on the performance requirements of ADCs and DACs for modern communications waveforms was found, your author decided to look into these issues. The proper modeling of ADCs and DACs was discussed in the second series, including discussions of models that utilize ENOB (effective number of bits) and ENOB plus an intermodulation polynomial. We also went over the author’s proposal for an even more effective model that included a low-pass filter.

### Series Goal

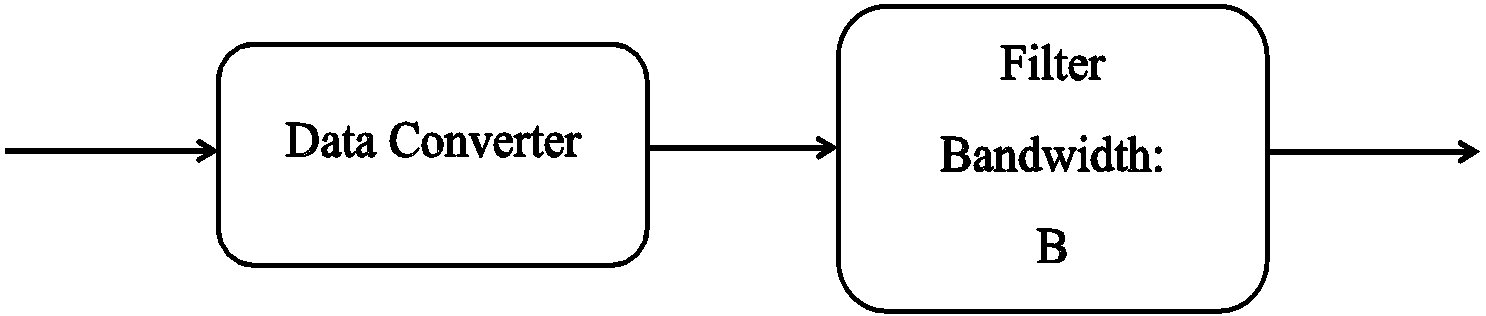

In examining the performance of data converters, often the situation shown in Figure 1 is seen.

##### Figure 1. Simplified block diagram of a data converter’s use

The total noise power out the data converter in the Nyquist bandwidth (BN) is N. The filter can be bandpass or lowpass, with bandwidth Bo. Usually, it is assumed the noise power out the filter is:

Noise power out of the filter = N(Bo / BN)

##### Equation 1. Note that this equation approximately holds for any reasonable filter that might follow the ADC, at any center frequency. A “reasonable filter” is one that is not too narrow.

Equation 1 assumes the noise is white, or uniform with frequency.

Your author wondered; under what conditions is this assumption, often called the pseudo quantization noise [14] assumption, true?

References [3] through [32] cover various aspects of this question. To clarify things, your author also performed some simulations of data converters with various inputs. The results are reported in this series.

He only considered uniform quantization, (all step sizes equal) since that is usually used in high-speed data converters. Also, sigma-delta converters were not considered.

For ADC applications, often the RF chain gain is made large enough so the noise from previous components is 3 to 5 dB above the quantization noise, so the quantization noise spectrum does not matter. However, this can add to system cost by requiring more RF gain, and a higher dynamic range from the ADC.

For DAC applications, hopefully, the noise from the DAC is dominant, and one does not want to add noise later in the chain just to assure the transmitted noise spectrum is white.

### Peak, Average, and rms Values

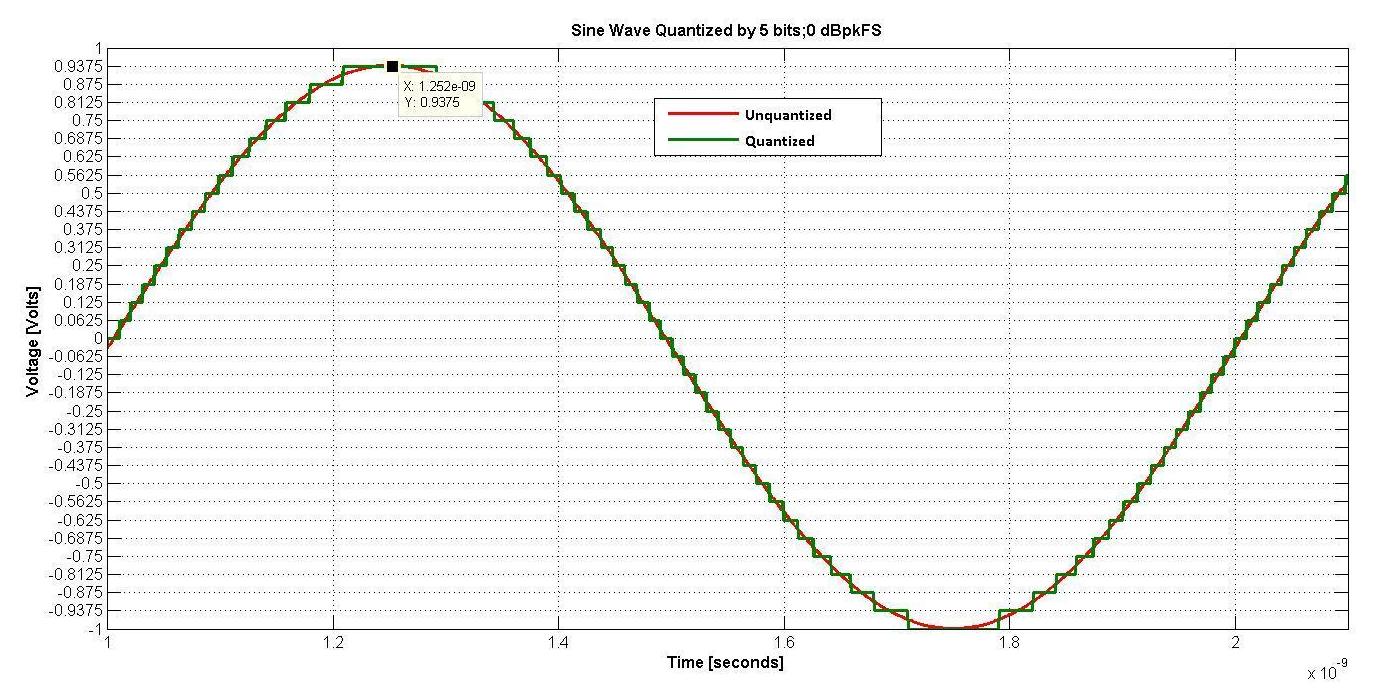

It is important to define the level of the input signal. Figure 2 shows a sine wave quantized with 5 bits. The level of this signal is usually called 0 dBFS; where FS refers to Full Scale on the quantizer. But, RF engineers usually deal with rms quantities. Since the rms value of a sine wave is 3 dB below the peak value, the sine wave of Figure 2 is at -3 dBrmsFS, or 0 dBpeakFS.

##### Figure 2.

For the rest of this series, signal levels will be specified in dBrmsFS or dBpeakFS,

Note also that, since power is the square of the voltage, the Peak-to-Average Power Ratio (PAPR) of this constant envelope sine wave is 3 dB. In fact, the PAPR of all bandpass phase or frequency modulated constant-envelope signals, such as MSK, is 3 dB.

“WAIT A MINUTE!” you might say, Dear Reader. “Isn’t the PAPR of a constant-envelope signal such as MSK 0 dB? That is what people call it.”

In fact, when people refer to the PAPR in this manner, they are referring to the ratio of the peak power of the envelope to the average power of the envelope. In particular, this reference to PAPR is used when characterizing the complex envelope [33] of a signal. Since we are concerned with real voltages in this series, the PAPR will be the power in the real peak divided by the power in the real average. This PAPR will be 3 dB higher than the one usually quoted.

In the next article, we’ll move on to discussing the spectrum of analog-to-digital converter (ADC) outputs.

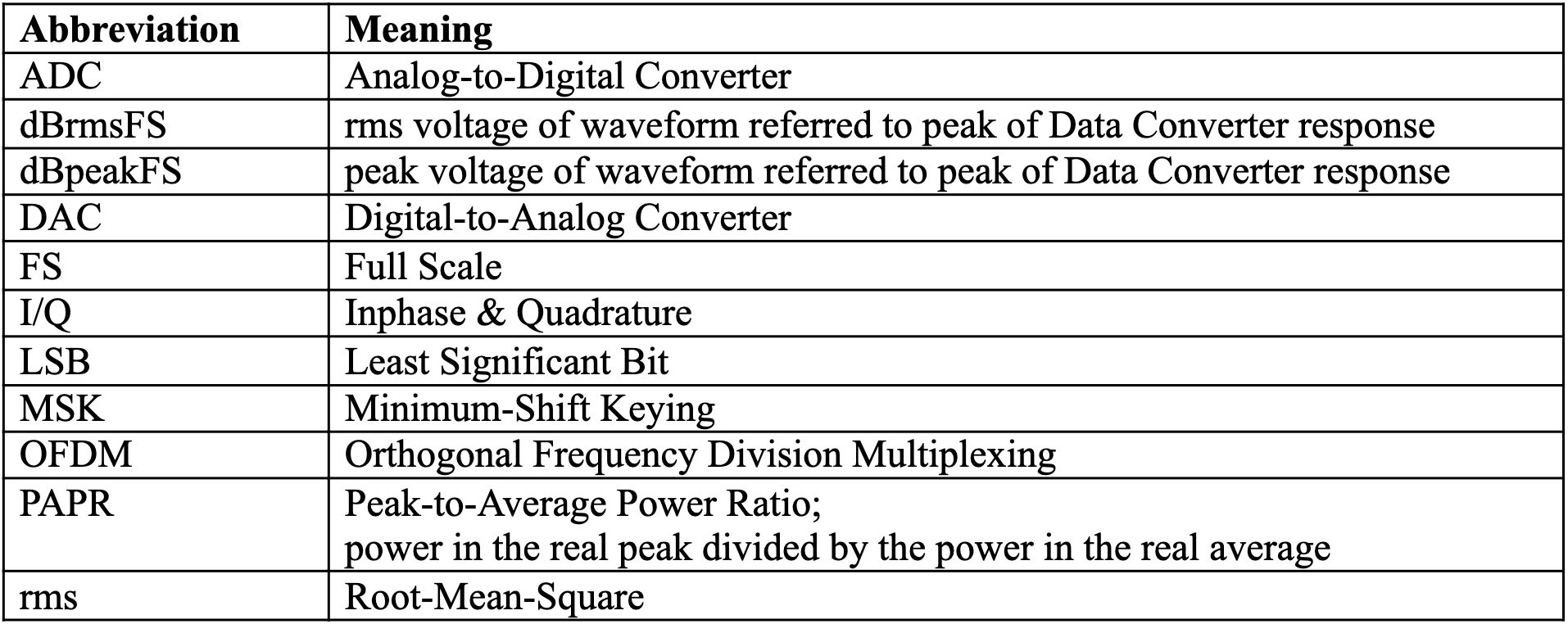

#### Abbreviations Used

Please use the following table for the remainder of the series.

#### References

The following references will be used throughout the remainder of the series, as well:

Introduction and Motivation

Requirements for Good Communications Link Performance: IQ Modulation and Demodulation

Modeling ADCs Using Effective Number of Bits (ENOB)

Modeling ADCs Using Intermodulation Polynomial and Effective Number of Bits

Quantization noise with or without clipping effects

[3] Maloberti, Franco; Data Converters; Springer Publishing; 2007

ADC Specific, with and without Clipping Effects

[4] Lever, K. V.; Cattermol, K.W., “Quantising noise spectra,” Electrical Engineers, Proceedings of the Institution of , vol.121, no.9, pp.945,954, September 1974

Lever, K.V.; Cattermole, K.W., “Erratum: Quantising noise spectra,” Electrical Engineers, Proceedings of the Institution of, vol.122, no.3, pp.272, March 1975

[5] Gersho, A, “Principles of quantization,” Circuits and Systems, IEEE Transactions on, vol.25, no.7, pp.427, 436, Jul 1978

[6] Gersho, A, “Quantization,” Communications Society Magazine, IEEE, vol.15, no.5, pp.16, 16, September 1977

[7] Schuchman, L., “Dither Signals and Their Effect on Quantization Noise,” Communication Technology, IEEE Transactions on, vol.12, no.4, pp.162, 165, December 1964

[8] Walden, R.H., “Analog-to-Digital Converters and Associated IC Technologies,” Compound Semiconductor Integrated Circuits Symposium, 2008. CSIC ’08. IEEE, vol., no., pp.1, 2, 12-15 Oct. 2008

[9] Walden, R.H., “Performance trends for analog to digital converters,” Communications Magazine, IEEE, vol.37, no.2, pp.96, 101, Feb 1999

[10] Walden, R.H., “Analog-to-digital converter technology comparison,” Gallium Arsenide Integrated Circuit (GaAs IC) Symposium, 1994, Technical Digest 1994., 16th Annual , vol., no., pp.217,219, 16-19 Oct. 1994

[11] Walden, R.H., “Analog-to-digital converter survey and analysis,” Selected Areas in Communications, IEEE Journal on, vol.17, no.4, pp.539, 550, Apr 1999

[12] Morgan, D.R., “Finite limiting effects for a band-limited Gaussian random process with applications to A/D conversion,” Acoustics, Speech and Signal Processing, IEEE Transactions on , vol.36, no.7, pp.1011,1016, Jul 1988

[13] Chow, P.E.-K., “Performance in waveform quantization,” Communications, IEEE Transactions on, vol.40, no.11, pp.1737, 1745, Nov 1992

[14] Dardari, D., “Exact analysis of joint clipping and quantization effects in high speed WLAN receivers,” Communications, 2003. ICC ’03. IEEE International Conference on, vol.5, no., pp.3487, 3492 vol.5, 11-15 May 2003

[15] Gray, R.M., “Quantization noise spectra,” Information Theory, IEEE Transactions on, vol.36, no.6, pp.1220,1244, Nov 1990

[16] Echard, J.; Watt, M.L., “The quantization noise spectrum of a sinusoid in colored noise,” Signal Processing, IEEE Transactions on , vol.39, no.8, pp.1780,1787, Aug 1991

[17] He Jing; Li Gang; Xu Xibin; Yao Yan, “Estimation for the quantization noise spectrum of linear digital filter,” Communication Technology Proceedings, 2000. WCC – ICCT 2000. International Conference on, vol.1, no., pp.184, 187 vol.1, 2000

[18] Bennett, W.R., “Spectra of quantized signals,” Bell System Technical Journal, The, vol.27, no.3, pp.446, 472, July 1948

[19] Mohamed, E.M., “Low complexity channel estimation technique for MIMO-Constant Envelope Modulation,” Wireless Technology and Applications (ISWTA), 2013 IEEE Symposium on, vol., no., pp.97, 102, 22-25 Sept. 2013

[20] Clavier, A G.; Panter, P. F.; Grieg, D.D., “Distortion in a Pulse Count Modulation System,” American Institute of Electrical Engineers, Transactions of the, vol.66, no.1, pp.989, 1005, Jan. 1947

DAC Specific, with and without Clipping Effects

[21] Ling, W.A, “Shaping Quantization Noise and Clipping Distortion in Direct-Detection Discrete Multitone,” Lightwave Technology, Journal of, vol.32, no.9, pp.1750, 1758, May1, 2014

[22] Mazo, J.E., “Asymptotic distortion spectrum of clipped, DC-biased, Gaussian noise [optical communication],” Communications, IEEE Transactions on, vol.40, no.8, pp.1339, 1344, Aug 1992

[23] Dakhli, M.C.; Zayani, R.; Bouallegue, R., “A theoretical characterization and compensation of nonlinear distortion effects and performance analysis using polynomial model in MIMO OFDM systems under Rayleigh fading channel,” Computers and Communications (ISCC), 2013 IEEE Symposium on , vol., no., pp.000583,000587, 7-10 July 2013

[24] Dardari, D.; Tralli, V.; Vaccari, A, “A theoretical characterization of nonlinear distortion effects in OFDM systems,” Communications, IEEE Transactions on, vol.48, no.10, pp.1755, 1764, Oct 2000

[25] Giannetti, F.; Lottici, V.; Stupia, I, “Theoretical Characterization of Nonlinear Distortion Noise in MC-CDMA Transmissions,” Personal, Indoor and Mobile Radio Communications, 2006 IEEE 17th International Symposium on , vol., no., pp.1,5, 11-14 Sept. 2006

[26] Van Vleck, J.H.; Middleton, D., “The spectrum of clipped noise,” Proceedings of the IEEE, vol.54, no.1, pp.2, 19, Jan. 1966

Other relevant mathematical treatments

[27] Ermolova, N.Y.; Haggman, S.-G., “An extension of Bussgang’s theory to complex-valued signals,” Signal Processing Symposium, 2004, NORSIG 2004. Proceedings of the 6th Nordic, vol., no., pp.45, 48, 11-11 June 2004

[28] Requicha, Aristides A G, “Expected Values of Functions of Quantized Random Variables,” Communications, IEEE Transactions on , vol.21, no.7, pp.850,854, Jul 1973

[29] Pirskanen, J.; Renfors, M., “Quantization and jitter requirements in multimode mobile terminals,” Communications, 2001. ICC 2001, IEEE International Conference on, vol.4, no., pp.1182, 1186 vol.4, 2001

[30] Irons, Fred H.; Riley, K.J.; Hummels, D.M.; Friel, G.A, “The noise power ratio-theory and ADC testing,” Instrumentation and Measurement, IEEE Transactions on , vol.49, no.3, pp.659,665, Jun 2000

[31] Widrow, B., “A Study of Rough Amplitude Quantization by Means of Nyquist Sampling Theory,” Circuit Theory, IRE Transactions on, vol.3, no.4, pp.266, 276, Dec 1956

[32] Rowe, H.E., “Memoryless nonlinearities with Gaussian inputs: Elementary results,” Bell System Technical Journal, The, vol.61, no.7, pp.1519, 1525, Sept. 1982

[33] VanTrees, Harry L; Detection, Estimation, and Modulation Theory, Part III, Radar/Sonar Signal Processing and Gaussian Signals in Noise; John Wiley and Sons; 1971. Appendix: “Complex Representation of Bandpass Signals, Systems, and Processes” AES-1, Issue: 6, 1979, Page(s): 840 – 848.
