Amazon Forecast is a fully managed service that is based on the same technology used for forecasting at Amazon.com. Forecast uses machine learning (ML) to combine time series data with additional variables to build highly accurate forecasts. Forecast requires no ML experience to get started. You only need to provide historical data and any additional data that may impact forecasts.
Customers are turning towards using a Software as service (SaaS) model for delivery of multi-tenant solutions. You can build SaaS applications with a variety of different architectural models to meet regulatory and compliance requirements. Depending on the SaaS model, resources like Forecast are shared across tenants. Forecast data access, monitoring, and billing needs to be considered per tenant for deploying SaaS solutions.
This post outlines how to use Forecast within a multi-tenant SaaS application using Attribute Based Access Control (ABAC) in AWS Identity and Access Management (IAM) to provide these capabilities. ABAC is a powerful approach that you can use to isolate resources across tenants.
In this post, we provide guidance on setting up IAM policies for tenants using ABAC principles and Forecast. To demonstrate the configuration, we set up two tenants,
TenantB, and show a use case in the context of an SaaS application using Forecast. In our use case,
TenantB can’t delete
TenantA resources, and vice versa. The following diagram illustrates our architecture.
TenantB have services running as microservice within Amazon Elastic Kubernetes Service (Amazon EKS). The tenant application uses Forecast as part of its business flow.
Forecast data ingestion
Forecast imports data from the tenant’s Amazon Simple Storage Service (Amazon S3) bucket to the Forecast managed S3 bucket. Data can be encrypted in transit and at rest automatically using Forecast managed keys or tenant-specific keys through AWS Key Management Service (AWS KMS). The tenant-specific key can be created by the SaaS application as part of onboarding, or the tenant can provide their own customer managed key (CMK) using AWS KMS. Revoking permission on the tenant-specific key prevents Forecast from using the tenant’s data. We recommend using a tenant-specific key and an IAM role per tenant in a multi-tenant SaaS environment. This enables securing data on a tenant-by-tenant basis.
You can partition data on Amazon S3 to segregate tenant access in different ways. For this post, we discuss two strategies:
- Use one S3 bucket per tenant
- Use a single S3 bucket and separate tenant data with a prefix
For more information about various strategies, see the Storing Multi-Tenant Data on Amazon S3 GitHub repo.

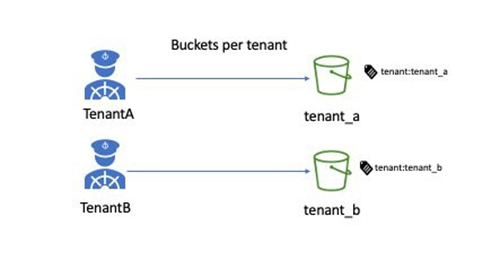

When using one bucket per tenant, you use an IAM policy to restrict access to a given tenant S3 bucket. For example:
There is a hard limit on the number of S3 buckets per account. A multi-account strategy needs to be considered to overcome this limit.

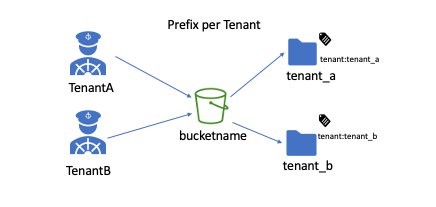

In our second option, tenant data separated using an S3 prefix in a single S3 bucket. We use an IAM policy to restrict access within a bucket prefix per tenant. For example:
For this post, we use the second option of assigning S3 prefixes within a single bucket. We encrypt tenant data using CMKs in AWS KMS.

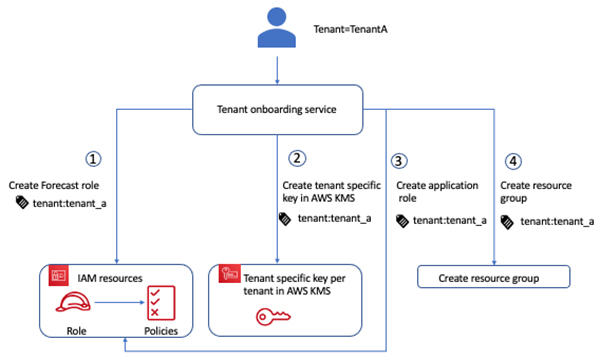

SaaS applications rely on a frictionless model for introducing new tenants into their environment. This often requires orchestrating several components to successfully provision and configure all the elements needed to create a new tenant. This process, in SaaS architecture, is referred to as tenant onboarding. This can be initiated directly by tenants or as part of a provider-managed process. The following diagram illustrates the flow of configuring Forecast per tenant as part of onboarding process.
Resources are tagged with tenant information. For this post, we tag resources with a value for tenant, for example,
Create a Forecast role
This IAM role is assumed by Forecast per tenant. You should apply the following policy to allow Forecast to interact with Amazon S3 and AWS KMS in the customer account. The role is tagged with the tag tenant. For example, see the following code:
Create the policies
In this next step, we create policies for our Forecast role. For this post, we split them into two policies for more readability, but you can create them according to your needs.
Policy 1: Forecast read-only access
The following policy gives privileges to describe, list, and query Forecast resources. This policy restricts Forecast to read-only access. The tenant tag validation condition in the following code makes sure that the tenant tag value matches the principal’s tenant tag. Refer to the bolded code for specifics.
Policy 2: Amazon S3 and AWS KMS access policy
The following policy gives privileges to AWS KMS and access to the S3 tenant prefix. The tenant tag validation condition in the following code makes sure that the tenant tag value matches the principal’s tenant tag. Refer to the bolded code for specifics.
Create a tenant specific key
We now create a tenant-specific key in AWS KMS per tenant and tag it with the tenant tag value. Alternatively, the tenant can bring their own key to AWS KMS. We give the preceding roles (
Forecast_TenantB_Role) access to the tenant-specific key.

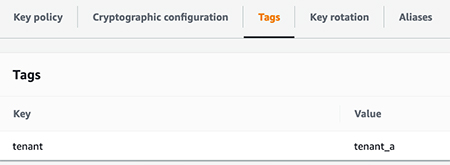

For example, the following screenshot shows the key-value pair of

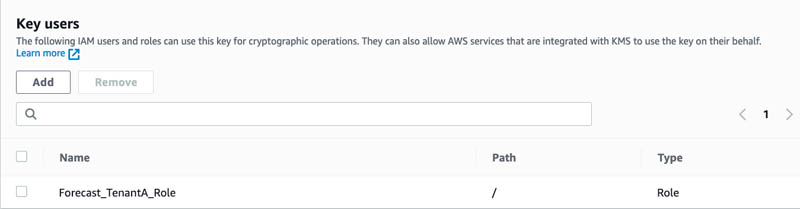

The following screenshot shows the IAM roles that can use this key.
Create an application role
The second role we create is assumed by the SaaS application per tenant. You should apply the following policy to allow the application to interact with Forecast, Amazon S3, and AWS KMS. The role is tagged with the tag tenant. See the following code:
Create the policies
We now create policies for the application role. For this post, we split them into two policies for more readability, but you can create them according to your needs.
Policy 1: Forecast access
The following policy gives privileges to create, update, and delete Forecast resources. The policy enforces the tag requirement during creation. In addition, it restricts the
delete actions on resources to the respective tenant. This policy has IAM
PassRole to allow Forecast to assume the role.
tenant tag validation condition in the following code makes sure that the tenant tag value matches the tenant. Refer to the bolded code for specifics.
Policy 2: Amazon S3, AWS KMS, Amazon CloudWatch, and resource group access
The following policy gives privileges to access Amazon S3 and AWS KMS resources, and also Amazon CloudWatch. It limits access to the tenant-specific S3 prefix and tenant-specific CMK. The tenant validation condition is in bolded code.
Create a resource group
The resource group allows all tagged resources to be queried by the tenant. The following example code uses the AWS Command Line Interface (AWS CLI) to create a resource group for
Forecast application flow

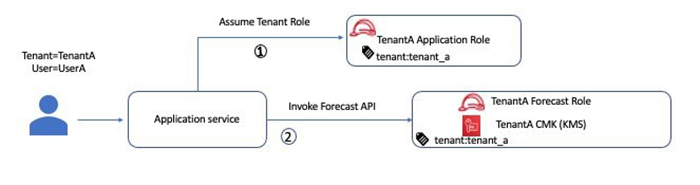

The following diagram illustrates our Forecast application flow. Application service assumes IAM role for the tenant and as part of its business flow invokes Forecast API.
Create a predictor for TenantB
Resources created should be tagged with the tenant tag. The following code uses the Python (Boto3) API to create a predictor for TenantB (refer to the bolded code for specifics):
Create a forecast on the predictor for TenantB
The following code uses the Python (Boto3) API to create a forecast on the predictor you just created:
Validate access to Forecast resources
In this section, we confirm that only the respective tenant can access Forecast resources. Access, modifying, or deleting Forecast resources belonging to a different tenant throws an error. The following code uses the Python (Boto3) API to demonstrate TenantA attempting to delete a TenantB Forecast resource:
List and monitor predictors
The following example code uses the Python (Boto3) API to query Forecast predictors for TenantA using resource groups:
As the AWS Well-Architected Framework explains, it’s important to monitor service quotas (which are also referred to as service limits). Forecast has limits per accounts; for more information, see Guidelines and Quotas.
The following code is an example of populating a CloudWatch metric with the total number of predictors:
Resource limits and throttling need to be managed by the application across tenants. If you can’t accommodate the Forecast limits, you should consider a multi-account configuration.
The Forecast List APIs or resource group response need to be filtered by application based on the
tenant tag value.
In this post, we demonstrated how to isolate Forecast access using the ABAC technique in a multi-tenant SaaS application. We showed how to limit access to Forecast by tenant using the tenant tag. You can further customize policies by applying more tags, or apply this strategy to other AWS services.
For more information about using ABAC as an authorization strategy, see What is ABAC for AWS?
