Birds have an amazing sense of direction that aids in migrating across vast distances, and scientists think this is due to their ability to detect magnetic fields — just like a compass. Chris Hill on Instructables wanted a way to experience this for himself by using a sensor and some sort of feedback mechanism to feel a magnetic field’s directionality and strength

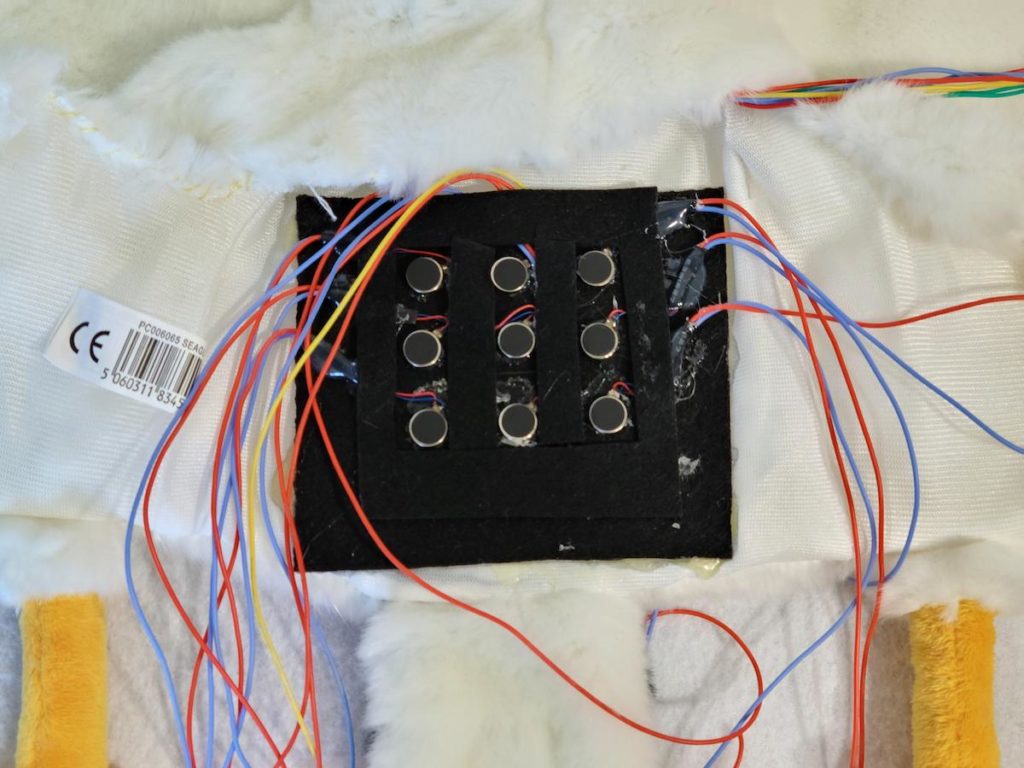

The sensor implemented is an AAH002 GMR module, which senses magnetic fields using a sandwich of materials that change their resistance when a field is nearby. By reading this value, the strength of the magnetic field can be calculated. Hill’s device employs a pair of these to accurately pinpoint the direction, while an Arduino Nano does the controlling. He also soldered together a set of nine ERM vibration motors into a grid to create a very low-resolution tactile display for the wearer.

this sensory extension puppet lets you detect magnetic fields like a bird 1 hyperedge embed image

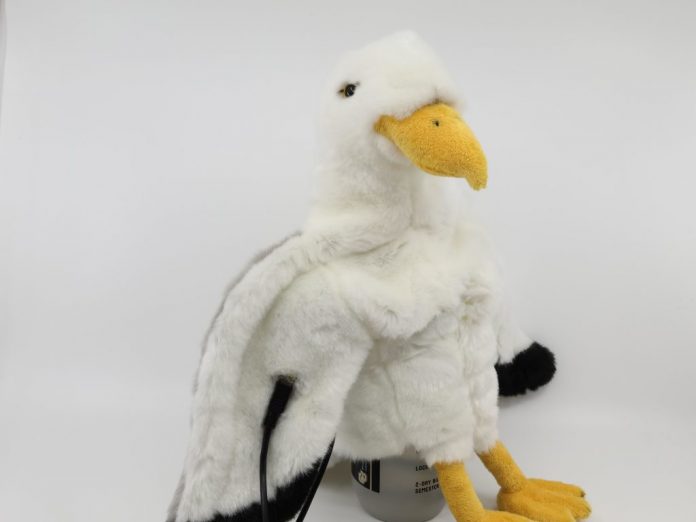

Once the wiring was finished, Hill stuffed the GMR sensors into an eagle puppet’s beak and the main circuitry in its chest cavity. Power is provided by a single micro-USB cable. As seen in his video, it looks pretty cool, albeit a bit creepy as well. Read more about how the project works in Hill’s write-up here
