PCB outgassing or offgassing is a defect that occurs when air is trapped inside a circuit board during production. The trapped air creates voids or blowholes, which might damage the board’s performance. Choosing a low outgassing rate material and vacuum pre-baking are some well-known methods to reduce the adverse effect of outgassing circuit boards.

In this article, we will be focusing on the following points:

What is outgassing in PCBs?

Outgassing is a defect that occurs when trapped gas/vapor is released from the printed circuit board when exposed to heat or vacuum, creating blowholes and voids. Offgassing affects a wide range of electronic applications that are used in high-vacuum conditions such as satellites, space-based equipment, and medical devices. Low outgassing board materials are the right choice for these kinds of applications.

Mechanisms contributing to outgassing

Mechanisms causing PCB outgassing

Mechanisms causing outgassing.

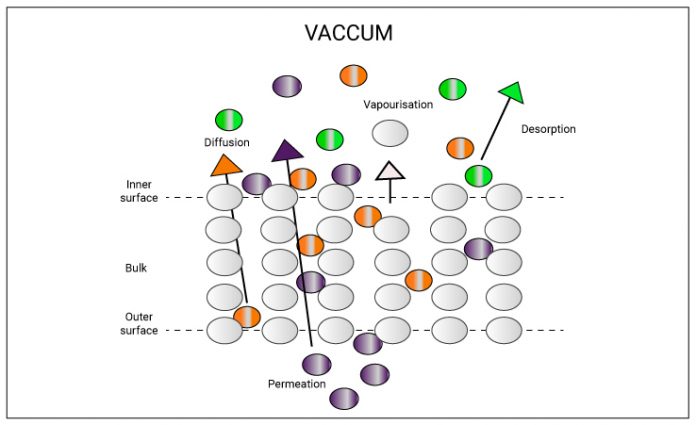

Outgassing is caused by four different mechanisms.

  1. Vapourisation — Release of molecules from the material’s surface.
  2. Desorption — Release of molecules trapped at an internal fixture.
  3. Diffusion — Flow of molecules from a material’s interior structure to its outer surface.
  4. Permeation — Flow of molecules from the external environment to the vacuum surface through the material.

When does outgassing occur in a PCB?

Outgassing occurs during the soldering process and can also occur when the board is exposed to high temperature and vacuum conditions. It is also caused by poor material choices and manufacturing errors.

HDI PCB material selector by Sierra Circuits

Outgassing during the soldering process

When a circuit board is soldered, any moisture present near the hole is heated and converted to vapor. This gas causes gaps in the solder mask when it escapes. Outgassing can occur due to the following:

  • Presence of moisture in the circuit board: Moisture removal from the PCB is vital. To achieve this, boards should be baked. Baking is the process of eliminating volatile molecules from materials by heating them to a high temperature (100 to 125°C). IPC-1601 describes the standard for circuit board baking to eliminate outgassing. This procedure should be carried out in a clean oven to protect the board from any contamination that may occur during the process. It’s also a good option to place the PCBs in such a way that air can readily move around them throughout the baking process. To know how contamination leads to board failure, read why we perform PCB ionic contamination analysis?
  • Thin through-hole plating (less than 20µm): Air can come through the plated hole wall if the coating is thin or if there are voids in the copper plating. To avoid this, hole plating thickness should be at least 25µm

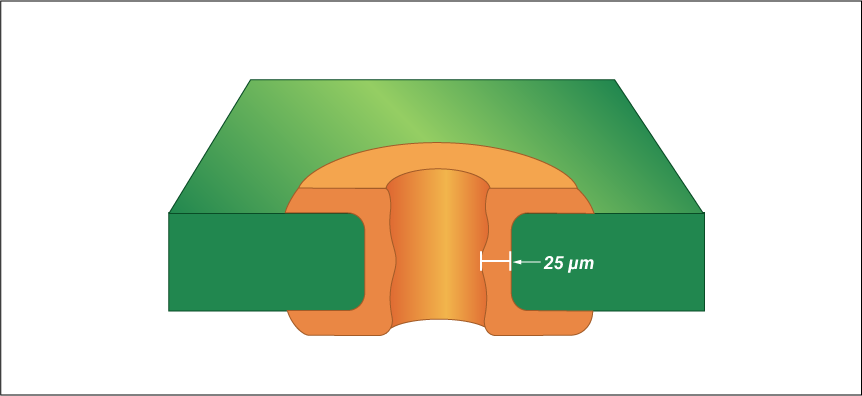

PCB outgassing prevention with thick plating

Minimum hole plating thickness to prevent outgassing.

Better DFM by Sierra Circuits

Also read, 8 soldering tips to watch out for.

Exposure to an ultra-high vacuum environment

Circuit boards that are implemented in space and military applications operate under ultra-high vacuum (UHV) environments. Dielectric materials will lose their mass when exposed to the UHV environment. The materials start evaporating and the adsorbed material on the circuit board surface will start desorbing (releasing gas). This results in outgassing. The expelled vapor can condense on optical devices such as cameras and can affect their image capturing quality.

Use of inappropriate material

Board materials and component packages should be selected based on their mechanical and thermal abilities as they impact the lifecycle of the PCB. To avoid offgassing, designers need to ensure that the materials have low outgassing rates and can withstand fluctuating pressure and temperature.

DOWNLOAD OUR PCB MATERIAL DESIGN GUIDE:

PCB Material Design Guide

How is the outgassing rate calculated?

The outgassing rate is expressed in the quantity of gas per unit surface area per unit time (pressure x volume). Torr-Liters/cm2-s and Atm-cm3/cm2-s are common units of offgassing. Outgassing rate measurements may be necessary to verify or validate bakeout techniques or surface treatments and compare different circuit board materials.

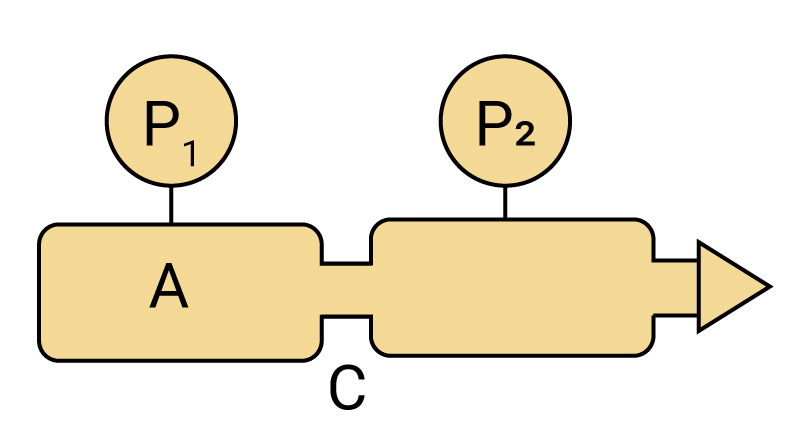

Measurement of outgassing rate using conductance method

Measurement of outgassing rate using conductance method

It can be measured using the conductance method. Here, the board material sample is placed in a chamber of known outgassing rate. A pump is connected to the vessel under examination and it is separated by a specific conductance. The outgassing rate is calculated by measuring the pressure decrease across the conductance.

Formula to calculate outgassing using conductance method

Formula to calculate outgassing using conductance method

Where,

  • P1 and P2 are pressure of the pumps
  • C is  the conductance
  • A is the internal surface area of the chamber to be tested

Material evaluation check for PCB outgassing

Outgassing affects the performance of the boards that are implemented in space applications. To reduce the adverse effects due to this, NASA has designed stringent procedures to test their circuit board laminates.

SP-R-0022A

SP-R-0022A standard establishes outgassing requirements and test guidelines for circuit board materials used in space environments. This test is carried out to ensure that the materials used in space applications do not affect the sensitive surfaces of any adjacent equipment.

ASTM E595-07

American society for testing and materials (ASTM) has also designed a test procedure to assess PCB materials. This test evaluates material properties such as TML (total mass loss) and CVCM (collected volatile condensable material).

Test procedure

  • The test sample is placed in a vacuum environment for 24 hours at a temperature of 125°C.
  • The sample is weighed at 23°C after a 24-hour period. This reduces the impact of water vapor on the measurement. Then the sample is constantly weighed over a 2-minute period to reduce water vapor absorption loss since it is exposed to an uncontrolled environment.

Criteria of acceptability

The board material shall have volatile condensable content of less than 0.1% of the original mass of the sample. The total mass loss of the material shall not exceed 1% of the original mass of the sample.

How can we prevent PCB outgassing in space applications?

As mentioned earlier, outgassing is a common occurrence in ultra high-vacuum conditions and it can also hamper or destroy neighboring instruments. Designers need to figure out how to limit this defect in the boards that are implemented in UHV conditions. Offgassing can’t be eliminated completely, however, it is essential to have strategies to mitigate the occurrence of it. The following pointers can help PCB designers tackle this problem:

  • Verify that the circuit board and its components can resist the extreme temperature swings in space. This is in addition to the electro-thermal modeling of PCB layouts prior to manufacture, which is required for all board designs.
  • Vias can be sources of outgassing because it is associated with drilling holes. To avoid this, maintain uniform temperature dissipation and distribution throughout the PCB manufacturing and assembly processes.
  • The vacuum pre-bake process should be carried out to get the moisture out of boards as much as possible.
  • Ensure that the materials are specifically developed for the end application (materials made for vacuum environments), such as Rogers Corporation’s RT/duroid series. Some flexible circuit materials, such as Kapton, offer excellent outgassing properties.
  • The effects of offgassing can be reduced by directing vapor away from sensitive surfaces and employing heating devices. Create a path for any released gases and direct them into space.
  • Hole plating should be a minimum of 25µm.

Outgassing has the potential to hinder the reliability of circuit boards that operate in high-temperature and high vacuum environments. Thus it is essential for the PCB designers to know about outgassing and the methods to control it. Choosing the right material for your board can make a lot of difference. Let us know in the comments section if there is anything more you want to learn concerning offgassing.
