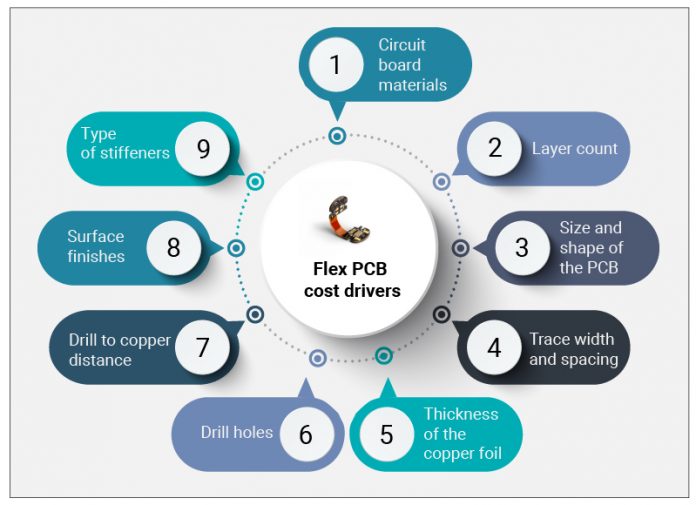

Cost optimization is one of the major objectives when designing a PCB. To achieve that, every designer should know the major cost drivers of a circuit board. The primary cost drivers of flex PCBs include board materials, layer count, efficient panel utilization, type of stiffeners, and surface finish.

In this article, we will be focussing on the following points:

What drives a flex PCB’s cost?

Cost drivers of flex PCBs

Cost drivers of flex PCBs

The overall cost of a circuit board mainly depends on the type of the board (rigid or flex), materials used, the number of layers in the stack-up, incorporation of HDI or ELIC (every layer interconnect) structure. Below are a few parameters that impact the overall price of a flex board:

Circuit board materials

The PCB material used to fabricate is one of the primary cost drivers of a flex board. Standard rigid boards are laminated using FR-4 substrates. Polyimide substrate is the most used material for manufacturing both flex core and coverlay layers. Flex substrates offer better thermal and electrical properties when compared to standard FR4 laminates. The thickness of flex materials is uniform throughout the substrate. These substrates also offer improved Dk values ranging between 3.2 and 3.4. The lack of woven glass reinforcement reduces variations in Dk. Typically, the thickness of the flex layers ranges between 1 and 5 mils. Flex laminates may cost 2 to 3 times more than the standard rigid materials.

Read more, 9 cost drivers for rigid circuit boards.

HDI PCB material selector by Sierra Circuits

Adhesiveless Vs. adhesive flex cores

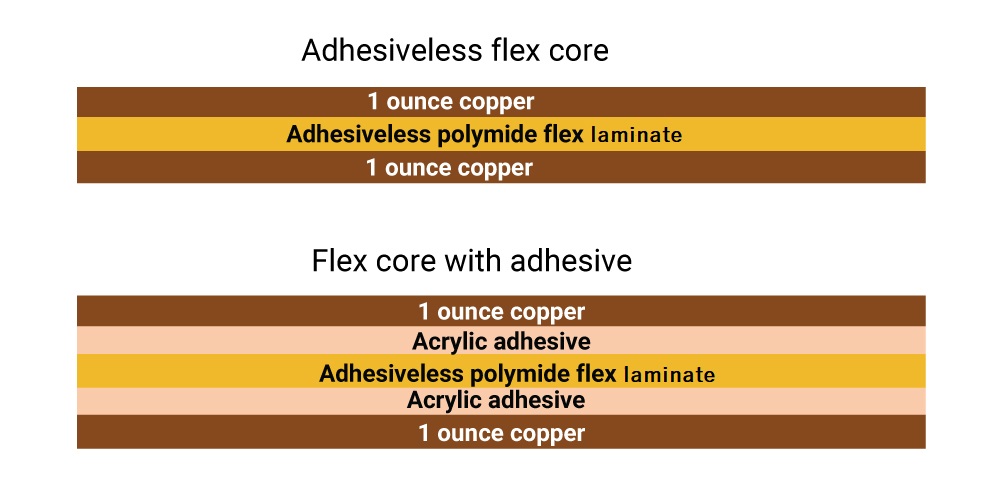

Adhesiveless and adhesive based flex cores

Adhesiveless and adhesive based flex cores

Adhesive-based flex cores use a flexible adhesive layer to attach each copper layer to the polyimide core under heat and pressure. The adhesive is commonly epoxy or acrylic-based and ranges in thickness from 0.0005″ to 0.001″. These materials are less expensive when compared to adhesiveless materials.

Copper is directly bonded to the polyimide core without using adhesives in adhesiveless flex cores. Though adhesiveless materials are expensive, they offer numerous advantages such as reduced flex thickness (due to absence of adhesive layer), improved temperature ratings, excellent plated hole reliability, and so on.

Factors that influence material selection for flex PCBs

  • Thermal reliability: Always choose a material that meets the temperature expectation of the application. If the board is intended to operate in a high-temperature environment, the material should withstand high-intensity heat without transferring the heat to the adjacent components.
  • Mechanical properties: This factor decides the material’s ability to withstand physical stress during its assembly or operation. Bend radius is one of the important physical parameters when it comes to flexible PCBs.
  • Signal performance: It is the material’s ability to facilitate uninterrupted signal propagation throughout the operation cycle. This is critical in the high-speed and controlled impedance boards.

If cost is the primary concern, avoid over-specifying the material requirements. For example, consider polyester laminate over polyimide substrate if the application operates under a lower temperature environment. Simple flex boards (class 1 flex boards) can take the advantage of inexpensive lower temperature materials.

DOWNLOAD OUR PCB MATERIAL DESIGN GUIDE:

PCB Material Design Guide

Circuit layer count

The number of layers is another significant cost driver of a flex PCB. As the number of circuit layers increases, the overall cost of the board increases. The lamination process becomes complicated as more layers are added to the board. This will take longer and will demand a greater supply of materials. Processing issues that occur due to high layer count are:

  • Layer to layer alignment
  • Plated through-hole integrity
  • Thermal expansion in the z-axis
  • Lamination defects

The below table gives an estimate of the price increase as the layer count increases.

Increase in layer count Increase in overall cost
From 1 layer to 2 layers 35 to 40%
From 2 layers to 4 layers 35 to 40%
From 4 layers to 6 layers 30 to 40%
From 6 layers to 8 layers 30 to 35%
From 8 layers to 10 layers 20 to 30%
From 10 layers to 12 layers 20 to 30%

Size and shape of the board

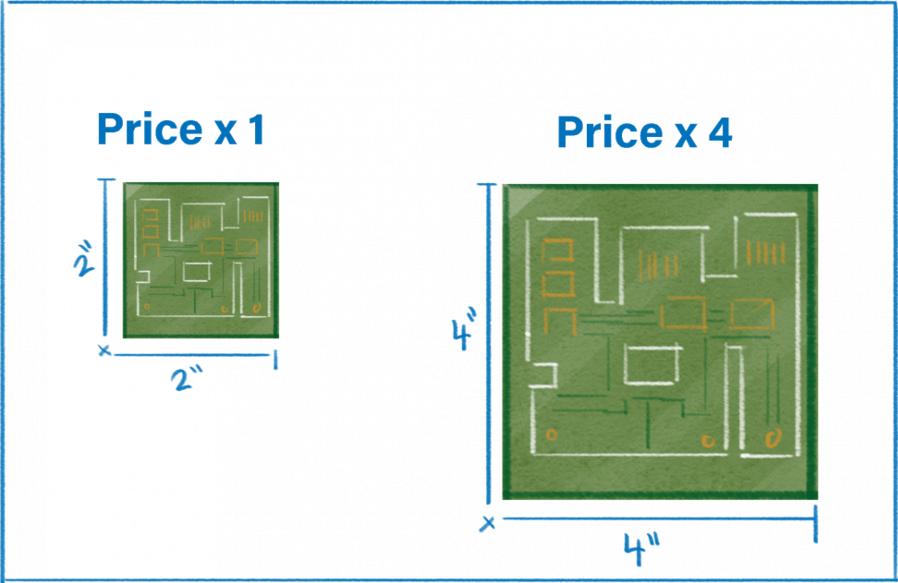

Cost of the PCB depends on the surface area of the board

A smaller area means a reduction in PCB material cost.

A circuit board’s shape and size (board outlines) are determined by a PCB designer. The larger the surface area, the higher the price. When multiple boards are fabricated within a panel, the surface of the panel should be efficiently utilized. Flex boards are fabricated in different shapes such as square, rectangle, circle, and many random shapes. Fabricating a random-shaped PCB may add to the cost as the panel utilization may come down.

Trace width and spacing

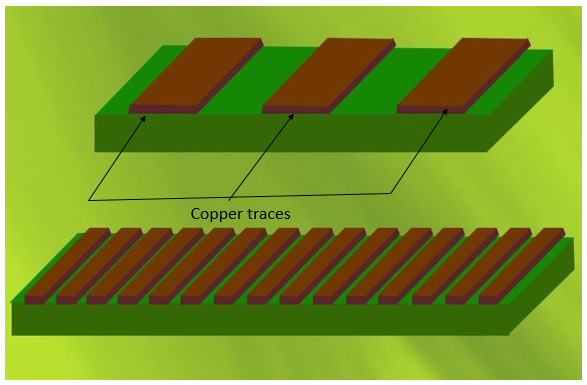

Trace width and space impacts the overall cost of a flex board

Trace width and space on the board design also contribute to cost.

An appropriate trace width is required for signals to propagate through a trace without the risk of overheating. The tighter the spacing, the more difficult it will be to reliably etch traces and pads. This adds to the overall cost of the board.

Trace Width Calculator

Thickness of the copper foil

The cost of a circuit board increases as the thickness of the copper layers increases. When thick copper layers are implemented on the inner layers, a higher number of prepregs are required during lamination. These prepregs avoid resin starvation by filling the gaps between the copper sections. The PCB price rises when there is more than ½ oz of copper on the inner layers and more than 1oz of finished copper on the outside layer.

Another downside of using thicker copper is that significant spacing between traces must be maintained. Thicker copper will require wider trace width. However, utilizing very thin copper (less than ¼ oz) will spike the costs due to extra processing costs.

Drill holes

Circuit board drill hole size comparison

Smaller mechanical hole sizes are more difficult to manufacture

Size of the drilled holes

The standard drill bit is 8 mils in diameter, while the advanced drill bit is 5 mils. Smaller the drill hole size, the higher the duration of drilling. This results in higher overall costs.

To learn more about the PCB drilling process, read our blog post PCB drilling explained: The do’s and the dont’s.

Drill to copper

Drill to copper in flex PCBs

Drill to copper in flex PCBs

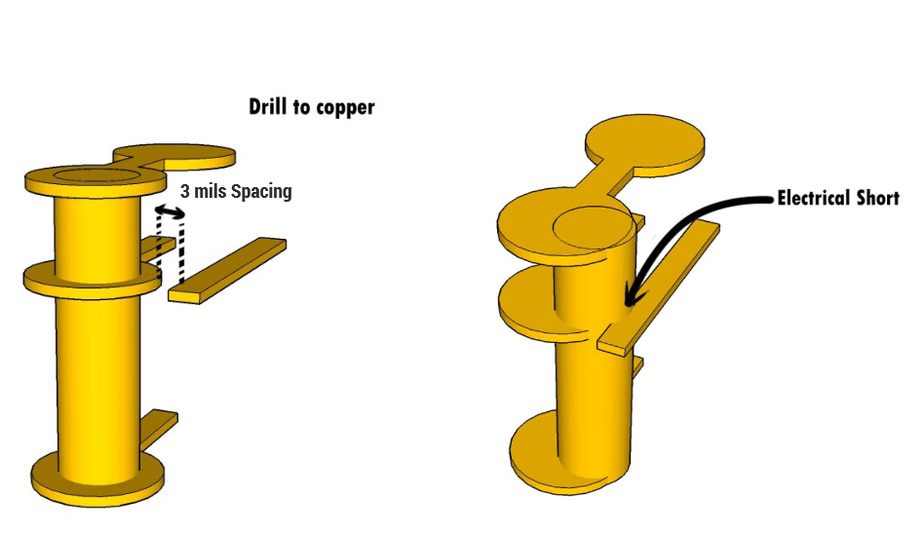

Drill to copper is the distance from the edge of the drilled hole to the nearest copper feature on a layer (pad, pour, and trace, etc.). Typically, drill to copper clearance is 8 mils. The smaller the drill to copper, the more expensive is the PCB manufacturing process.

Surface finishes

A PCB surface finish is an intermetallic joint between the bare copper of the solderable area of the printed circuit board and the components. The surface finish should be chosen in a way that improves product performance keeping the cost in mind.

Types of PCB surface finishes

  • ENIG (Electroless Nickel/ Immersion Gold): This is the most common type of circuit board surface finish. It’s popular because it doesn’t tarnish, it’s reliable. ENIG is more expensive than other surface finishes, but it offers superior PCB solderability. This surface finish sometimes results in the formation of black pad. This is where phosphorus accumulates between the nickel and gold layers. Fractures and incorrect board connections are the possible outcomes.
  • Immersion silver: Silver is a robust finish material that may be used in a variety of applications. Because of its growing popularity, the material is becoming more freely available, lowering and stabilizing its price.
  • Immersion tin: This finish involves depositing a thin layer of tin on a circuit board. Immersion tin provides a consistent finish. The disadvantage is that it has a short lifespan. However, it offers outstanding performance at an optimum cost.

Type of stiffeners

The overall cost of a flex PCB is also determined by the type of stiffeners employed. In a flex design, stiffeners serve the following objectives:

  • Modification of thickness to meet ZIF connector specifications
  • Component/connector area support
  • Promote heat dissipation

FR4 and polyimide are the two most common stiffener materials. Although aluminum and stainless steel are employed in some designs, they are more expensive than FR4 and polyimide. Aluminum is a popular material for heat dissipation applications.

Stiffeners are bonded with either a thermally bonding adhesive or a pressure-sensitive adhesive (PSA). Thermal bonding adhesive is preferable, although design constraints may necessitate the use of a PSA. Thermal adhesives are flexible epoxy or acrylic adhesives that are used to attach coverlays to flex circuits, and they provide a permanent bond. They are less expensive than PSAs.

How to reduce the overall cost of flex and rigid-flex PCBs

  • Keep the number of layers as minimum as possible

The number of prepreg plies required is reduced as the number of layers in the design is reduced. Limiting the number of layers of flexible circuitry lowers the overall cost. Simultaneously, fewer layers boost the manufacturer’s ability to improve manufacturing yields.

  • Use rigid substrates to obtain overall thickness in rigid-flex designs

If a specific overall thickness needs to be attained, make use of rigid board laminates instead of no flow prepreg or flexible laminates. Flexible laminates are costlier than rigid laminates.

  • Efficient panel utilization
Efficient flex panelization to reduce the overall cost

Efficient flex panelization to reduce the overall cost

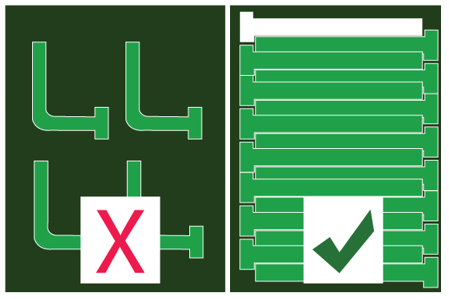

A panel, or a circuit board array, is a large sheet of material that contains several individual PCBs. Overall manufacturing costs can be reduced by efficient usage of panel surface area. The image above shows an example of inefficient and efficient flex panelization.

  • Uniform stiffener thickness

Always use stiffeners with uniform thickness. This reduces the fabrication time and in turn reduces the cost.

  • Limit the number of vias

When compared to through-holes, blind and buried vias require significantly more manufacturing steps which increase processing time and lowers yields. Reducing the number of vias in the flex board can reduce the overall cost.

Cost optimization should be considered during the initial stage of circuit board design. Identifying the least expensive cost drivers of a flex PCB requires accurate design solutions and clear engineering strategies. Understanding the pros and cons of using a particular material, hole drilling techniques, stiffener types, trace width and spacing, etc. can help prevent future production failures. Planning ahead of time and consistent discussion with your PCB manufacturer will help you optimize time and cost.
