Design for manufacturing (DFM) guidelines resolves potential issues that can occur during the manufacturing and assembly of circuit boards. DFM for flex and rigid-flex PCBs with SMT involves selecting application-specific circuit construction types, laminates, coating thickness, trace routing strategies, bending, and EMI capabilities.

Watch Now Button

In this webinar, our presenter Vern Solberg discusses the following points:

What are the DFM guidelines for flexible and rigid-flex circuits?

DFM for flex and rigid-flex PCBs are categorized as given below:

Better DFM by Sierra Circuits

Establishing flex circuit construction types

Flex board are classified into single-sided, double-sided, multi-layered, and rigid-flex boards.

IPC type 1- Single-sided flex boards

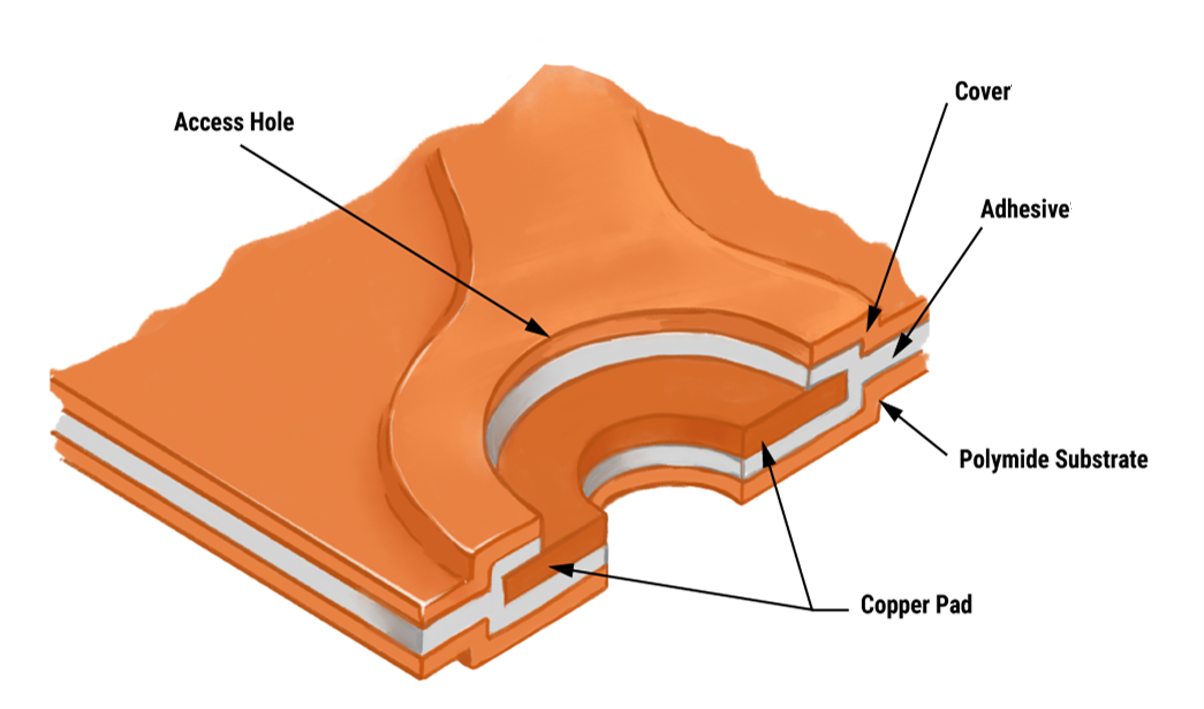

Single-sided boards are the most common type. These PCBs consist of a single conducting layer bonded onto a dielectric base film. Generally, it includes an insulating layer to protect the conductor pattern. A polyimide coverlay can be used for the insulation and environmental protection of the circuit. SMT lands (surface mount land sockets) are accessible only from one side when they are provided. Single metal flexible circuits are perfect for dynamic applications.

Single sided flex circuit board

Single-sided flex circuit board

IPC type 2- Double-sided flex boards

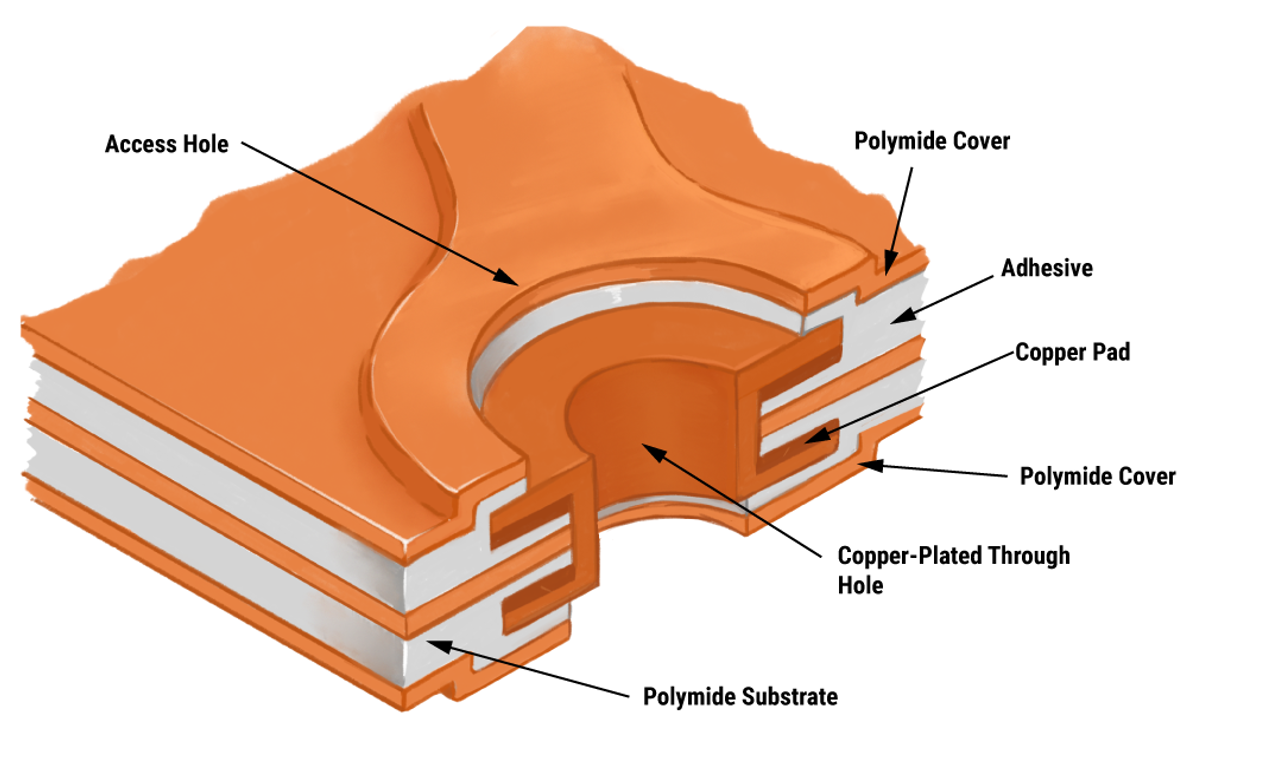

IPC type-2 flex PCBs consist of two copper conductive layers and a flexible dielectric film material that serves as an insulator between them. The copper foil is bonded or deposited onto both sides of the base dielectric film.

Cu-plated through-holes that extend through the flexible material complete the interface between the circuit layers. The circuit pattern is imaged, chemically etched, and finally insulated on both sides by applying a top and bottom dielectric cover-layer or cover-coat.

Double-sided flexible PCB

Double-sided flex PCB

IPC type 3: Multi-layer flexible boards

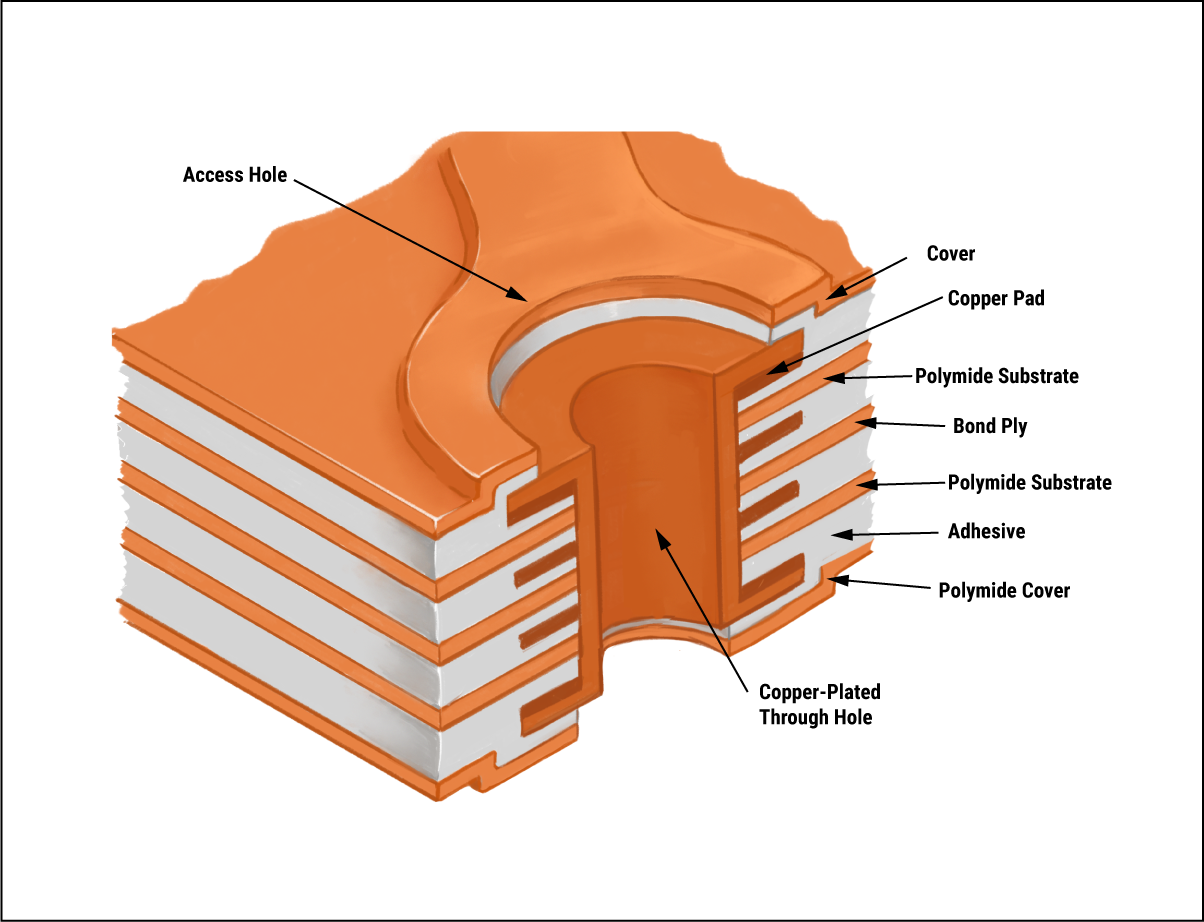

Multi-layer flex circuit boards consist of three or more conductive layers bonded together with a dielectric. Interconnection between conductive layers is provided by plated through-holes. By using multilayer boards, designers can overcome certain challenges like crosstalk, unavoidable crossovers, specific impedance requirements, and dense component layouts.

Multi-layered flex circuit board

Multi-layered flex circuit board

IPC type 4: Rigid-flex circuit

A rigid-flex circuit combines epoxy glass reinforced material and flexible film with copper circuit patterns interconnected with plated through holes. This configuration provides flexibility in a certain portions of the board while using rigid portions for mounting and interconnecting components in the rest of the circuit design.

What are the base materials for flexible and rigid-flex circuits?

Usually, substrates for rigid-flex circuits are developed using processes similar to conventional board fabrication. A detailed description of the specification for glass-reinforced and non-reinforced base materials can be found in IPC-4101 through IPC-4104. Some of the base materials include:

  • Polyimide film
  • Polyimide with glass fiber reinforcement
  • FR-4 epoxy with glass fiber reinforcement
  • BT-epoxy with glass fiber reinforcement

DOWNLOAD OUR FLEX DESIGN GUIDE:

dfm for flex and rigid flex pcbs utilizing smt 5 hyperedge embed

 Base material properties

It is important to choose the product that best suits the design. The following chart shows the classification of materials according to the key attributes.

Key attributes Polyimide film Polyimide laminate FR-4 laminate B-T laminate
Glass transition temperature (Tg) 341℃ 265℃ 170℃ 190℃
Decomposition temperature (Td) N/A N/A 340℃ N/A
Reinforcement type None E-glass E-glass E-glass
Dielectric compound Polyimide Polyimide Epoxy (Note 1)
Maximum operating temperature 225℃ 230℃ 150℃ 200℃
Moisture absorption >1.0% 1.0% 0.5% 0.35%

  • B-T laminate material is a mixture of epoxy and bismaleimide-triazine resins.
  • The FR-4 material conforms to IPC-4101/126, 129,130, and 131. It is developed for Pb-free solder processing (240℃-260℃).

HDI PCB material selector by Sierra Circuits

DFM for flex and rigid-flex PCB material

Below are the parameters that should be considered while choosing materials that meet the design criteria:

  • Moisture absorption
  • Fire retarding
  • Electrical properties
  • Mechanical properties
  • Thermal properties

See our post, how to choose PCB materials and laminates for fabrication to gain a better understanding of material characteristics and selection attributes.

Key physical attributes for polyimide film dielectrics

  • Outstanding electrical properties
  • Excellent chemical resistance
  • Thermally stable, capable of continuous operation at a temperature >225ºC
  •  Dimensionally stable at high or low temperature
  •  Able to withstand process temperatures for SMT soldering

Polyimide film dielectrics are expensive but suitable for a variety of electronic applications.

Surface protection for flexible circuits

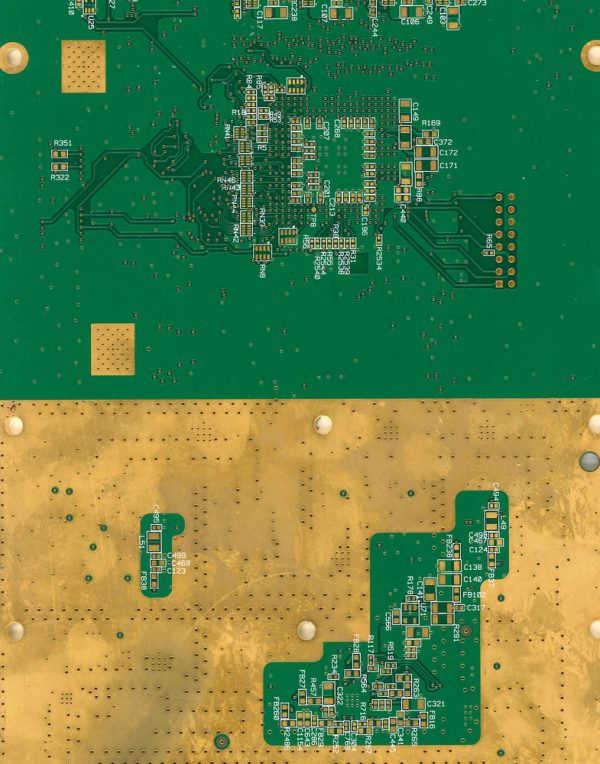

For flexible circuits, surface protection is essential to prevent them from getting affected by environmental hazards. The surface of the board is protected using coverlay, covercoat, liquid photo-imaged polymer, and photo-imaged dry film.

The surface of a flexible circuit board

The surface of a flexible circuit board

  • Coverlay– Coverlay is a dielectric film applied on the circuit pattern with an adhesive.
Advantages of coverlay Disadvantages
Excellent dynamic flexibility Thickness and cost increase depending upon the application
Pinhole free Requires precutting and pre-punching operations
Highest dielectric strength Susceptible to mis-registration/dimensional change

  • Covercoat– Covercoat is a liquid polymer screen printed onto the circuit board and cured using UV light or heat.
  • Liquid photo-imaged polymer– It is a photosensitive polymer spray, printed or flooded onto the board and photo-imaged to provide access to land pattern features.
Advantages liquid photo-imaged polymer Disadvantages
High pattern resolution Flexibility varies by supplier
Eliminates punching and drilling of access holes Moderate cost, minimal material waste
Enables precise alignment for exposed features If very thin, pinholes may form in coating

  • Photo-imaged dry film– Fusion laminated onto circuit and photo-imaged to provide access to land pattern features.
Advantages photo-imaged dry film Disadvantages
High pattern resolution Flexibility varies by supplier
Eliminates punching and drilling of access holes Basic material cost is high but material is pinhole free

Fabrication process limits

Some factors that will define the supplier’s fabrication capabilities include:

  • Minimum distance separating conductors, vias, though-holes, and SMT land patterns.
  • The maximum number of conductors routed between a given area or fixed surface features.
  • The number of conductor layers required for flexible and rigid portions of the circuit.

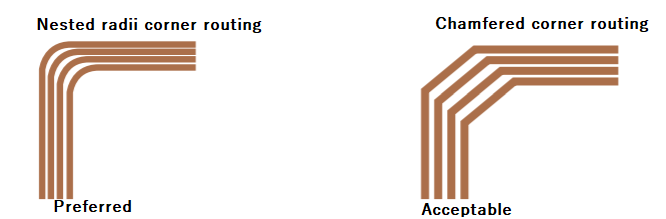

Parallel circuit routing variations

In parallel circuits, the conductor path on the flex board must change the direction. The designer should avoid sharp 90° turns. Ideally, the conductor path should be designed with a nested, chamfered, or generous radius. The multiple conductor path routed in parallel should also maintain uniform spacing with a progressive, larger radius from the center axis.

Parallel circuit routing variations for flex circuits

Parallel circuit routing variations for flex circuits

In parallel circuit routing, it is necessary to make sure that sharp corners are not present that promote tearing. The figure shown below represents the key features that will enhance the survivability of flex circuits.

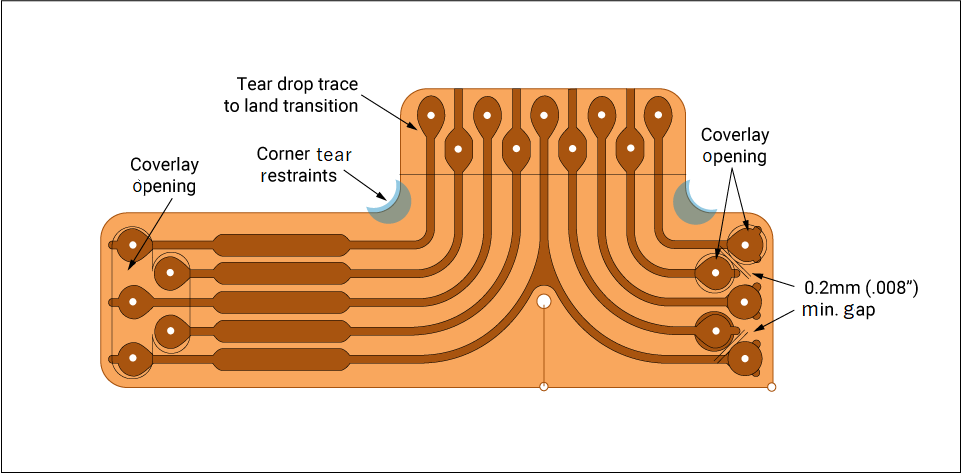

Key features in routing flex boards

Key features in routing flex boards

It is possible to reinforce the interface using a simple teardrop shape transition between narrow and wide conductors. For holes furnished for mounting pinhole components, it is good design practice to make the mounting pad area as large as possible to maximize the adhesion area during PCB soldering.

 Circuit routing and spacing

Determining conductor density in routing will depend upon the number and width of signal conductors. For single and double-sided flex boards, the overall width of the base material should provide adequate surface area for coverlay film bonding. The base material also provides sufficient area for bonding. The table given below classifies feature size and spacing criteria based on the copper foil thickness.

Copper foil thickness 1/2 OZ 3/4 OZ 1 OZ
Dimension 17µm 26µm 34µm
A 0.13mm 0.19mm 0.25mm
B 0.13mm 0.19mm 0.25mm
C 0.75mm 0.75mm 0.75mm
D 0.50mm 0.50mm 0.50mm

Hole-to-edge clearance guidelines

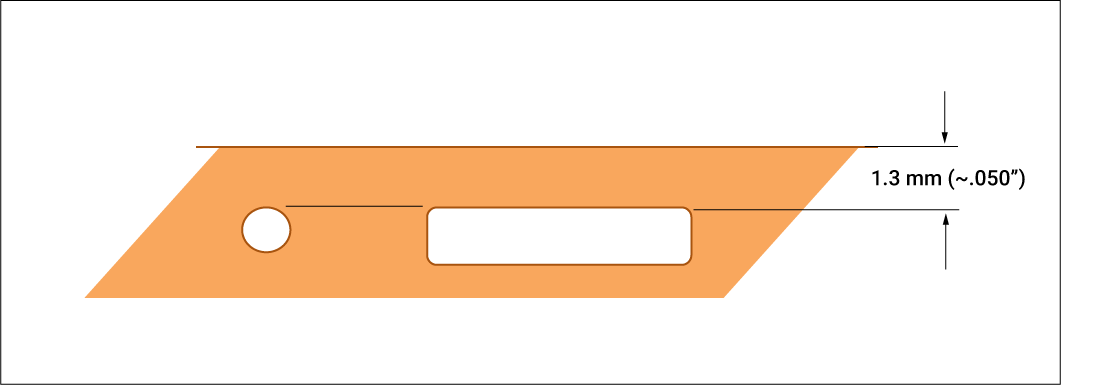

The minimum distance between the exterior edge of the flex circuit outline and the edges of interior holes and cut-outs should not be less than 1.3mm. The larger the hole-to-edge distance, the more reliable will be the part.

Hole to edge distance on flexible circuit

Hole-to-edge distance on flexible circuit

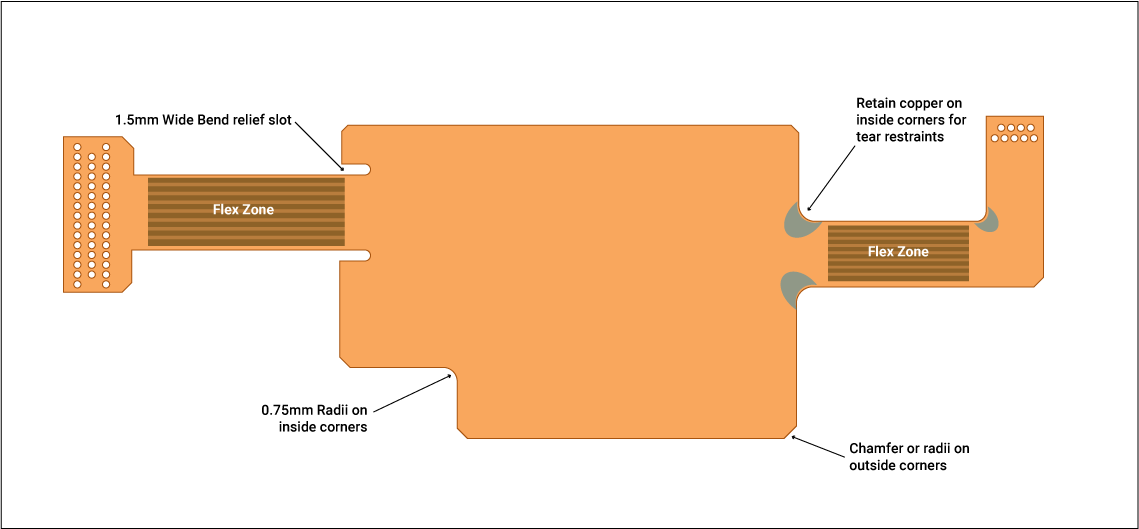

Tear avoidance guidelines

The IPC-2223 section is a design standard that makes recommendations for flex and rigid-flex circuits. The corners should be about 1.5mm wide. However, larger radii will make a more reliable part and thus minimize tearing. In the following image, we can see chamfers, relief, and radius on the corners. Tear restraints give a little more strength to the corners to avoid tearing when the material stretches. Even though the material is hard, it will tear if stretched beyond its limit.

Tear avoidance guidelines for flex circuit

Tear avoidance guidelines for flex circuit

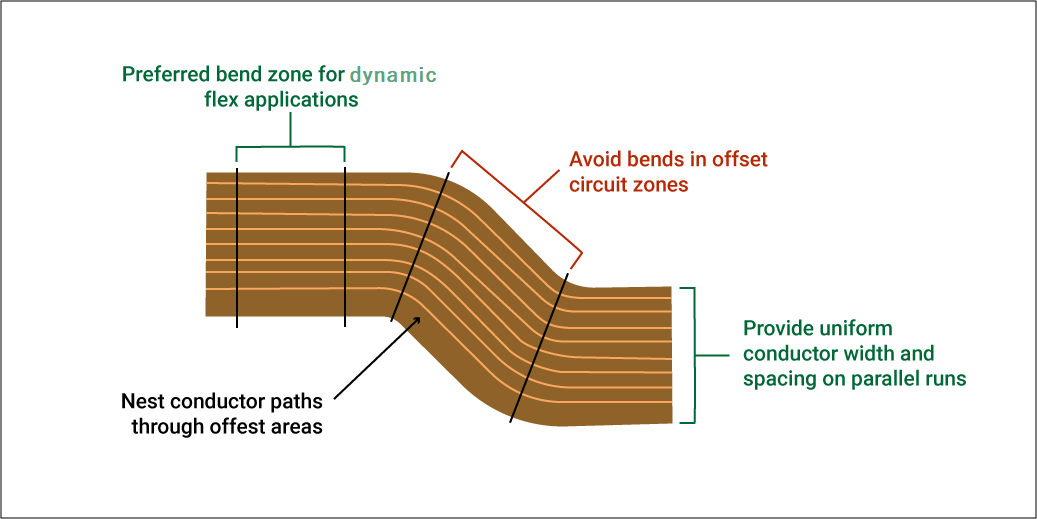

Conductor routing in bend zones

While routing conductor in bend areas consider the following:

  1. The conductor should be routed perpendicular to the bend area.
  2. It should be evenly spaced across the bend zone.
  3. Do not apply additional metals in the bend area.
  4. The conductor should maintain uniform width.
Routing in bend zone of flex PCB

Routing in bend zone of flex PCB

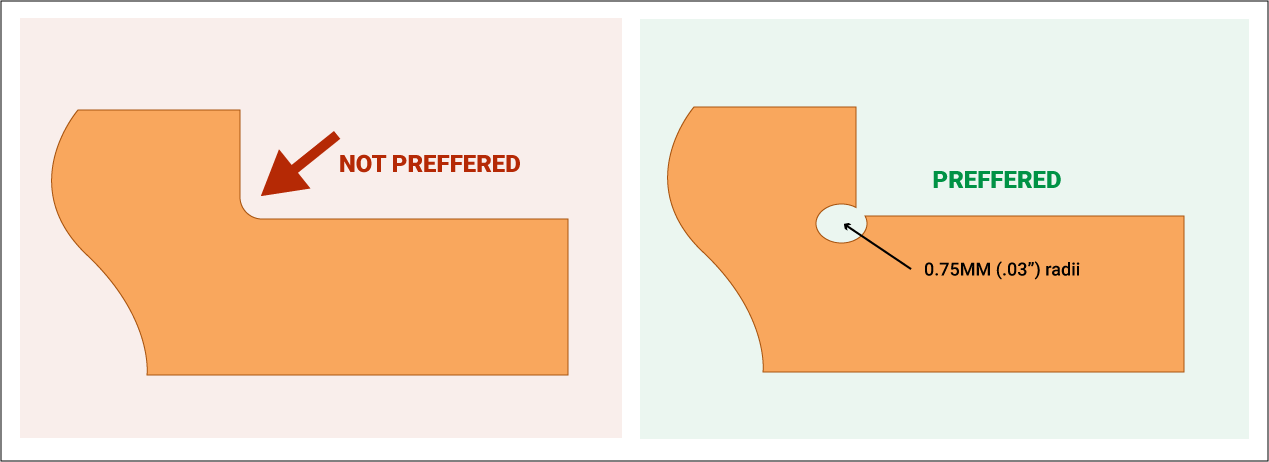

How to avoid 90° inside corner in flexible sections

While dealing with corners, it is necessary to avoid 90° inside corners to prevent tearing. The minimum radius profile should be 0.75 mm to reduce cracking on the inside corners of the flex film. However, larger radii or recessed radii will make the corner more resistant to tearing.

90° inside corners in flex circuit

90° inside corners in flex circuit

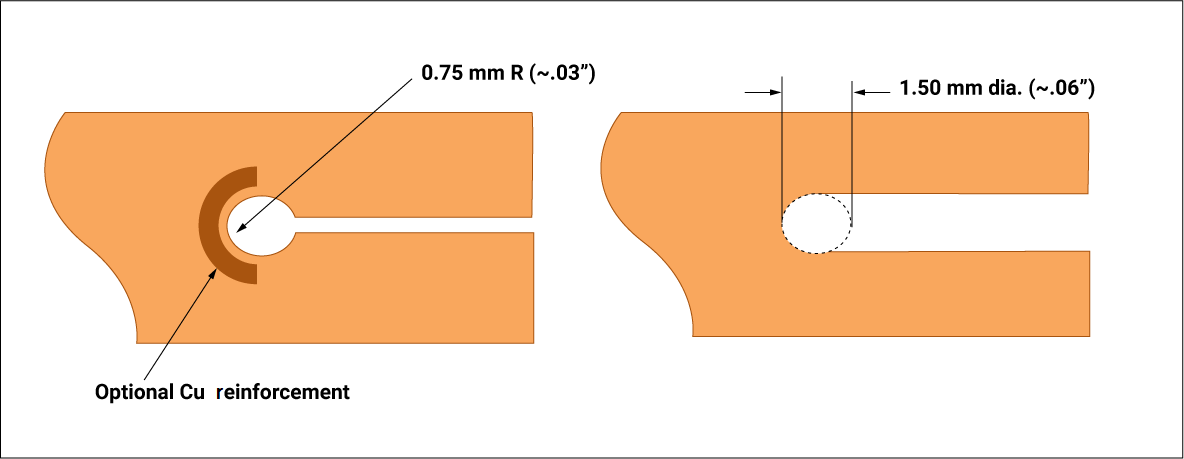

Tear restraint for narrow slot features

If the circuit area is subjected to repeated flexing, it is recommended to retain a small pattern of copper foil for further reinforcement against tearing. The slot features should have 0.75mm radii.

Slots in flex circuit board

Slots in flex circuit board

Incorporating slit features within the circuit

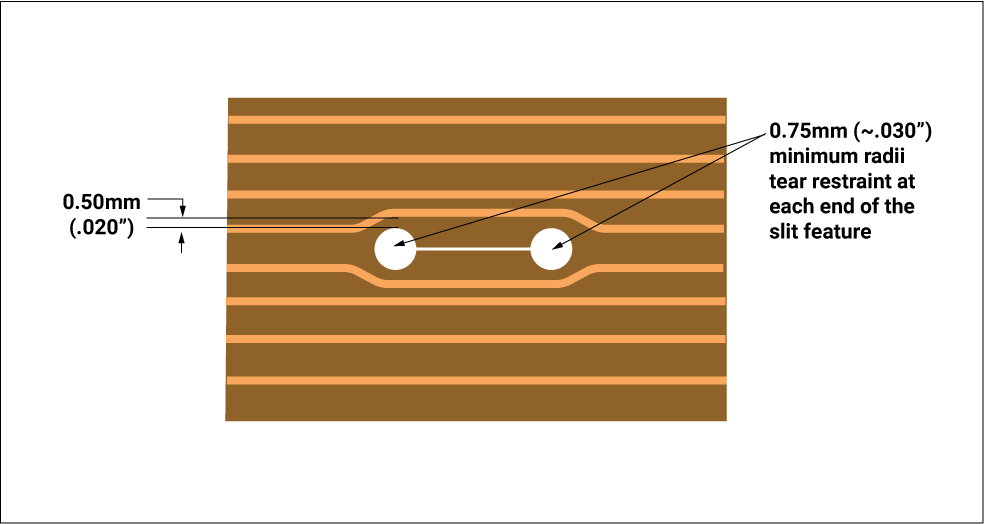

The image shown below exhibits a narrow slot that represents minimum clearance from the hole (0.50mm).

Incorporating slit features within the flex circuit

Incorporating slit within the flex circuit

Strain relief fillet for rigid-to-flex transition

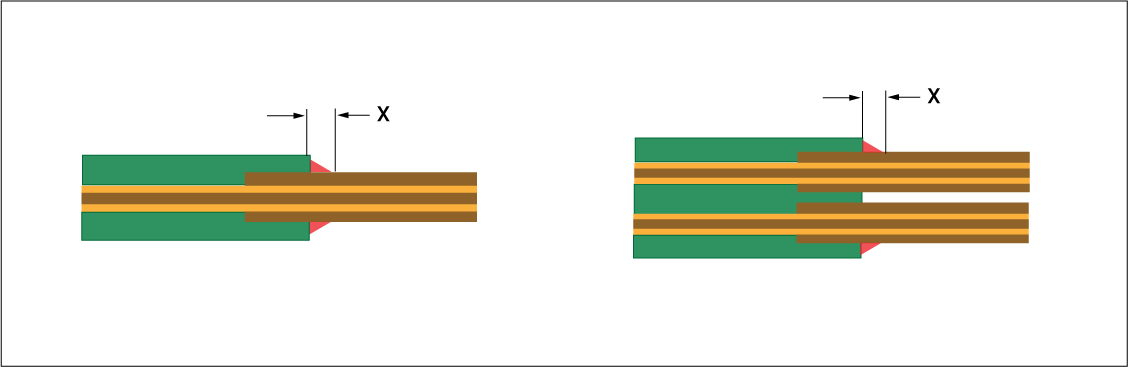

A small bead of polymer is applied at the transition of the flexible and rigid section to minimize physical stress at the interface. The strain relief material can be a flexible epoxy, acrylic, RTV silicone, polysulfide compound, etc.

The strain relief horizontal dimension (X) may range between 1.0mm and 2.5mm [~0.0394in. to ~0.0984in.].

Strain relief fillet for rigid to flex transition

Strain relief fillet for rigid-to-flex transition

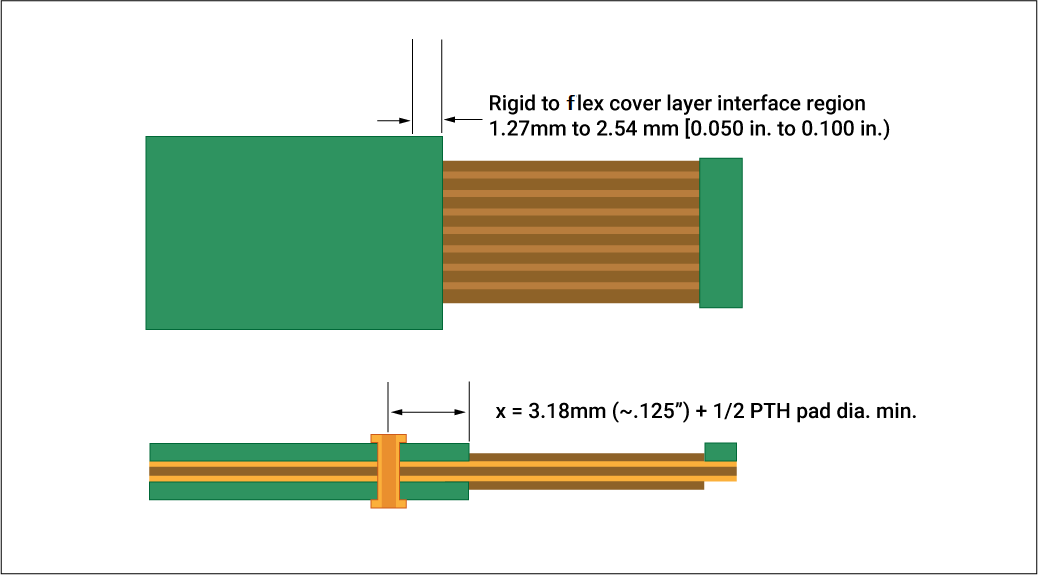

Flex-to-rigid conductor interface

To avoid compromising the integrity of plated through-hole on the rigid-flex circuit, the hole locations must be set back from the edge of the rigid sections. Here, 3.18mm + ½ PTH pad diameter is a setback that will avoid interference from the cover layer protrusions where flex material enters rigid-flex material. This is one of the most important considerations when it comes to DFM for rigid-flex PCBs.

Flex-to-rigid conductor interface

Flex-to-rigid conductor interface

Bend and fold guidelines for static applications

The minimum bending radius for 90° bend-to-install depends upon the number of copper layers. Generally accepted guidelines are:

  • Single-sided – 10:1
  • Double-sided – 10:1
  • Multilayer – 20:1

Conductor routing dos and don’ts in the bend area

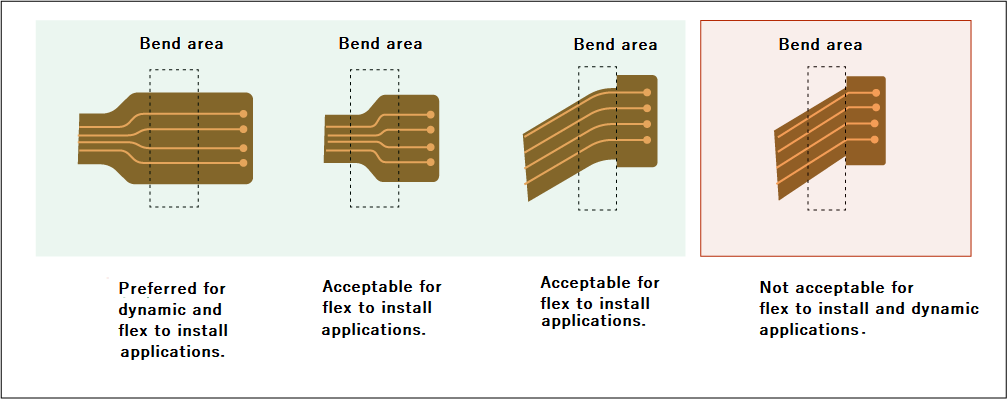

For proper conductor routing, it is essential to know the dos and don’ts. Refer to the image below:

Dos and don’ts of flex conductor routing

Dos and don’ts of flex conductor routing

Folding flex circuits

In folding flex circuits, copper conductors in the fold area should always be on the inside surface of the fold. These folds are preferred for one-time folding on single-sided flex circuits. If the copper foil is on two sides of the flexible circuit, copper on the outside area must be cleared.

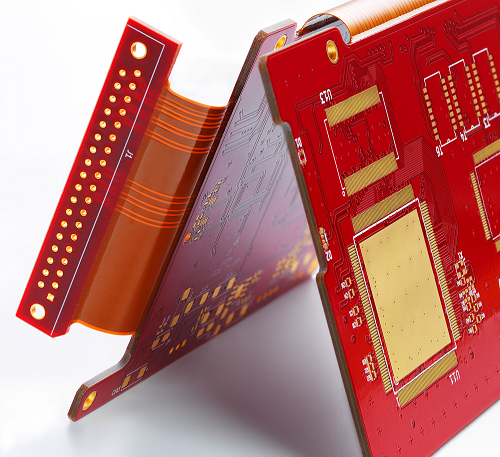

90° or greater fold-to-install

Folds are preferred only for single or double-sided flex circuits. Folds should be uniform and designed to follow the surface of the package. To control the bend radius and prevent conductor cracking, a forming tool might be used.

A crease may be formed only once and then bonded into place, ensuring that the fold will not be exercised.

90° fold in flex board

90° fold in flex board

Bend guidelines for dynamic applications

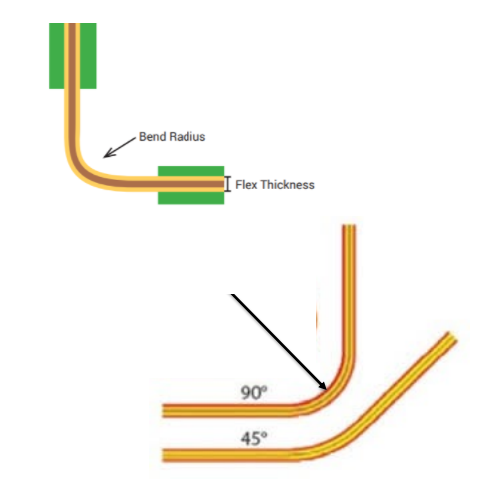

The recommended minimum bending radius for dynamic applications that require repeated bending up to 90° is:

  • For single-sided flex, 100:1
  • For double-sided flex, 150:1

 However, multilayer dynamic flexing is not recommended.

Flex PCB Bend radius for dynamic applications

Bend radius for dynamic applications

Two-sided flex circuit bend zone

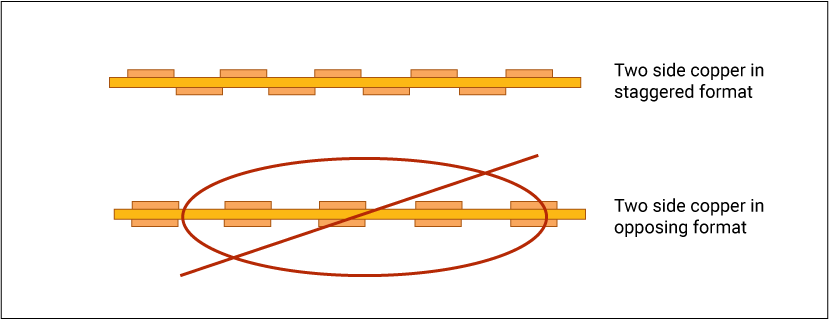

The following image shows dos and don’ts for copper conductor routing in double-sided flex circuits.

Dos and don’ts for two-sided flex circuit

Dos and don’ts for two-sided flex circuit

EMI shielding and impedance control for two Copper layer flex

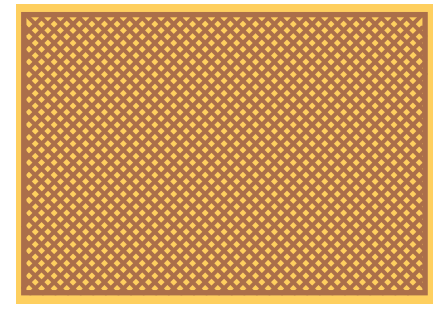

A patterned conductive layer may be added to provide an effective EMI shield. The crosshatched pattern helps to maintain flexibility.

Cross-hatched copper plane

Cross-hatched copper plane

Fabricators and designers should understand the requirements for limiting signal loss, impedance tolerance, and electromagnetic interference (EMI).

Watch Now Button

Watch the whole webinar to get a proper understanding of the following points:

  1. DFM for flex and rigid-flex PCBs.
  2. SMT component selection and land pattern development
  3. DFM for SMT assembly processing

Choosing an appropriate IPC construction type based on flex and rigid-flex application requirements is the first step in the DFM process. It is crucial to adhere to specific design for manufacturing guidelines as it can eradicate issues related to trace routing, spacing, clearance, conductor interface, etc.

 If you want to learn more about any critical aspect of flex boards, then let us know in the comment section.
